ZP-serie vacuümzuignap met borgring, adapter en bufferbeugel (Ø9~Ø50) ZP-serie vacuümzuignap met borgring, adapter en bufferbeugel (Ø9~Ø50)
  • ZP-serie vacuümzuignap met borgring, adapter en bufferbeugel (Ø9~Ø50)
  • ZP-serie vacuümzuignap met borgring, adapter en bufferbeugel (Ø9~Ø50)

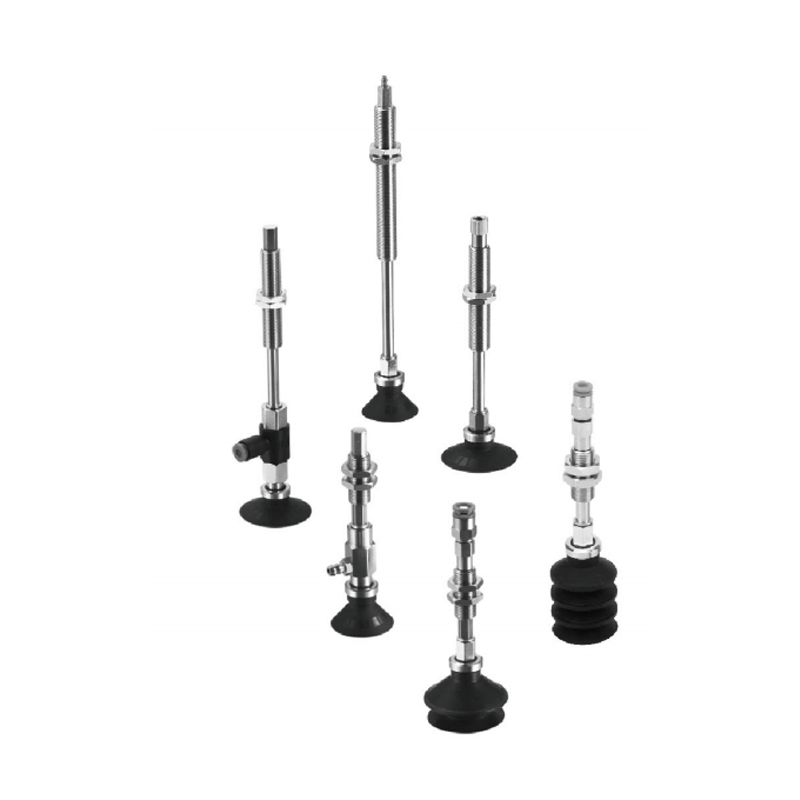

ZP-serie vacuümzuignap met borgring, adapter en bufferbeugel

ZP-serie vacuümzuignap met borgring, adapter en bufferbeugel (Ø9~Ø50)

ZP-serie vacuümzuignap met borgring, adapter en bufferbeugel (Ø9 ~ Ø50) is een vacuümzuignapconstructie met geïntegreerd borgringmechanisme en bufferfunctie, die geschikt is voor zuignappen met verschillende specificaties (Ø9 ~ Ø50) om stabiel grijpen en bescherming van het werkstuk te bereiken.

Kernfuncties
1. Vergrendelings- en valbeveiligingsontwerp: de ingebouwde mechanische borgring spant de zuignap automatisch aan om onbedoelde uitval door negatieve drukschommelingen te voorkomen.
2. Flexibele bufferstructuur: het ingebouwde elastische element absorbeert de contactimpact van het werkstuk en vermindert het risico op schade aan het precisieoppervlak.
3. Modulaire adapterinterface: de gestandaardiseerde schroefdraad/snelwisselinterface is compatibel met reguliere vacuümsystemen en ondersteunt snelle vervanging van zuignapspecificaties.
4. Dunne en compacte lay-out: het ontwerp met lage installatiehoogte is geschikt voor een kleine ruimte-indeling en optimaliseert de eindbelasting van de robotarm.
5. Breed scala aan arbeidsomstandigheden: geschikt voor conventionele onderdrukomstandigheden, compatibel met de omgang met niet-poreuze materialen zoals metaal/glas/kunststof.

E-mail: manager@cktworld.com
Downloaden
VORIGE：Geen vorig artikel
VOLGENDE：ZP-serie vacuümzuignap met borgring (Ø9~Ø50)

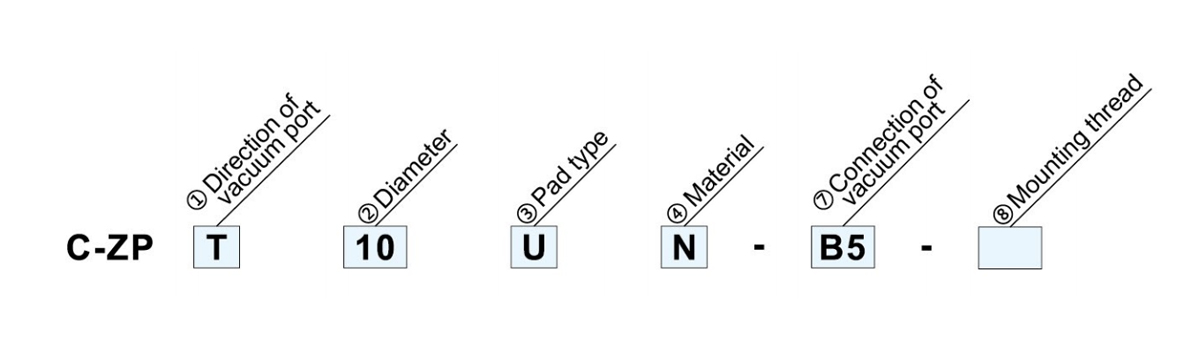

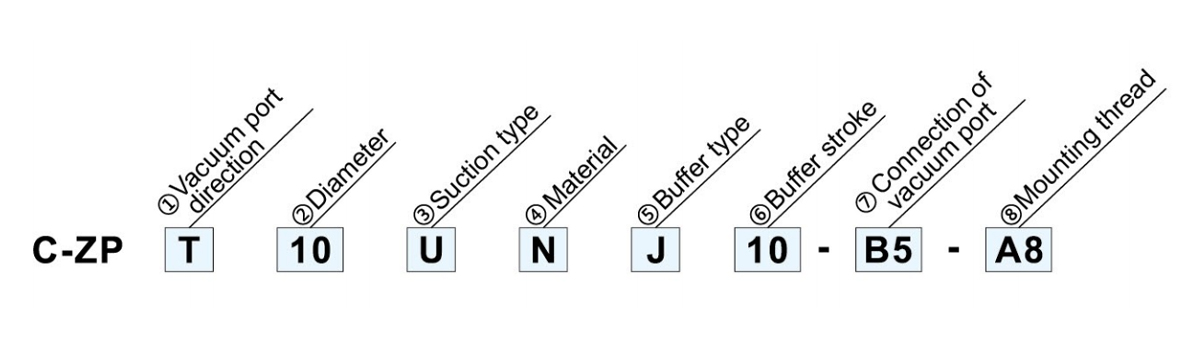

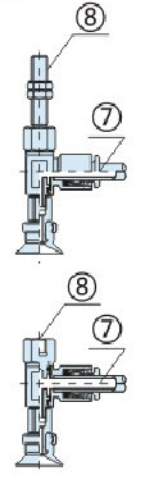

  • ④Materiaal□ ② Diameter (mm)○/③Zuigtype☆ E* F* G*
    N NBR 09 10 13 14 16 20 25 30 32 40 50
    S Siliconenn Ø9 Ø10 Ø13 Ø14 Ø16 Ø20 Ø25 Ø30 Ø32 Ø40 Ø50
    U Plat - ● ● - ● ● ● - ● ● ●
    C Met rib - ● ● - ● ● ● - ● ● ●
    D Diep - ● - - ● - ● - - ● -
    ①Richting van
    vacuümpoort     		B 2   Balgen - ● ● - ● ● ● - ● ● ●
    J 3/4 balg ● - - ● ● - ● ● - - -

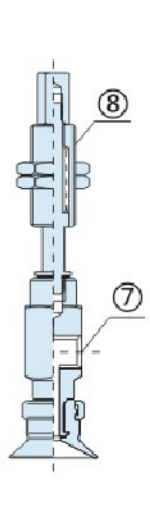

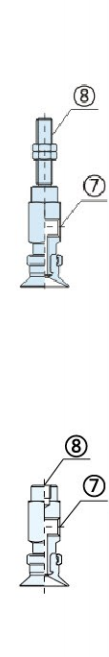

    T Verticaal ⑦Aansluiting van vacuümpoort Externe draad A5 M5×0,8 ● - -
    A6 M6×1,0 ● ● ●
    A8 M8×1.0 - ● ●
    A01 R1/8 ● ● ●
    Interne draad B5 M5×0,8 ● ● -
    B6 M6×1,0 ● ● ●
    B8 M8×1,25 - ● ●
    B01 Rc1/8 ● ● ●
    R Lateraal Snelle connector 04 Ø4 ● ●
    06 Ø6 ● ● ●
    08 Ø8 - ○ ●
    ⑧Bevestigingsdraad Externe draad A5 M5×0,8 ● - -
    A6 M6×1,0 ● ● ●
    A8 M8×1.0 - ● ·
    Interne draad B5 M5×0,8 ● ● -
    B6 M6×1,0 ● ● ●
    B8 M8×1,25 - ● ●
    Y ⑦ Aansluiting van vacuümpoort◇ B5 M5×0,8 ● ● ●
    Barb-fitting U4 φ4 PU-slang ● ● -
    N4 φ4 Nylonslang ● ● -
    U6 φ6 PU-slang ● ● ●
    N6 φ6 nylon slang ● ● ●
    Buitenste zeshoekige snelkoppeling 03 Ø3 ● - -
    23 Ø3,2 ● - -
    04 Ø4 ● ● -
    06 Ø6 ● ●
    Binnenzeshoekige snelkoppeling 03S Ø3 ● - -

    23S

    		Ø3,2 ● - -
    04S Ø4 ● ● -
    06S Ø6 ● ● ●
    ⑧ Bevestigingsdraad Extern
    draad     		A5 M5×0,8 ● - -
    A6 M6×1,0 ● ● ●
    A8 M8×1.0 - ● ●
    Interne draad B5 M5×0,8 ● ● -
    B6 M6×1,0 ● ● ●
    B8 M8×1,25 - ● ●

    Zuignappen zijn rubberen onderdelen en veroudering is onvermijdelijk. De snelheid van veroudering hangt af van factoren zoals gebruiksmethoden, omgeving en temperatuuromstandigheden. Regelmatig onderhoud moet worden uitgevoerd. Als er schade, splijten, barsten of slijtage optreedt, moet de zuignap onmiddellijk worden vervangen. Bij het vervangen van de zuignap mag u het buitenoppervlak niet beschadigen.

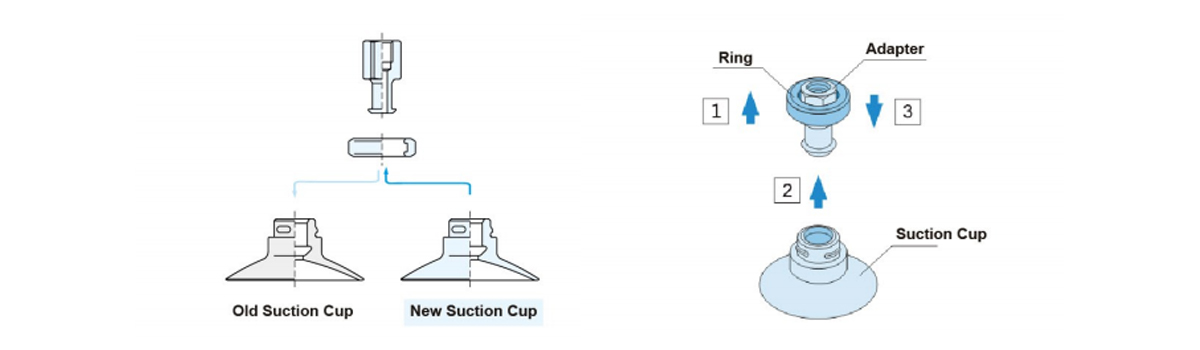

    STAP:

    1. Doe de ring af.
    2. Verwijder de adapter.
    3. Bevestig de nieuwe zuignap met de ring en plaats vervolgens de adapter met de nieuwe zuignap.

    ④Materiaal□ ②Diameter (mm)○/③Zuigtype☆ E* F* G*
    N NBR 09 10 13 14 16 20 25 30 32 40 50
    S Siliconenn Ø9 Ø10 Ø13 Ø14 Ø16 Ø20 Ø25 Ø30 Ø32 Ø40 Ø50
    U Plat - ● ● - ● ● ● - ● ● ●
    ⑤ Buffer     type§ C Met Rib - ● ● - ● ● ● - ● ● ●
    J Rotatief D Diep ● - - ● - ● - - ● -
    K Kan niet roteren B 2 balgen ● ● - ● ● ● - ● ● ●
    J 3/4 balg ● - - ● ● - · ● - - -
    ⑥Bufferslag■ 10 10  mm ● ● ●
    20 20 mm ● ● ●
    30 30 mm ● ● ●
    ①Aansluiting van vacuümpoort 40 40 mm ● ● -
    50 50   mm ● ● ●

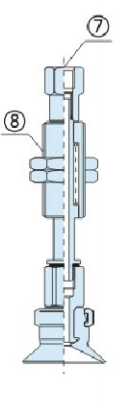

    T Verticaal ⑦Aansluiting van vacuümpoort◇ Interne draad B5 M5×0,8 ● ● ●
    B01 Rc1/8 - - ●
    Barb-fitting U4 中4 PU-slang ● - -
    N4 φ4 nylon slang ● - -
    U6 φ6 PU-slang ● ● ●
    N6 中6 Nylon slang ● ● ●
    Buitenzeskant snelkoppeling 03 Ø3 ● - -
    23 Ø3,2 ● - -
    04 Ø4 ● ● -
    06 Ø6 ● ● ●





    R     		Binnenzeskant snelkoppeling 03S Ø3 ● - -
    23S Ø3,2 ● - -
    04S Ø4 ● ● -
    06S Ø6 ● ● ●
    Lateraal Snelle connector 04 Ø4 ● ● -
    06 Ø6 ● ● ●
    08 Ø8 - ● ●
    Y Binnen B5 M5×0,8 ● ● ●
    Barb-fitting U4 φ4 PU-slang ● ● -
    N4 φ4 nylon slang ● ● 一
    U6 φ6 PU-slang ● ● ●
    N6 φ6 nylon slang ● ● ●
    Buitenzeskant snelkoppeling 03 Ø3 ● - -
    23 Ø3,2 ● - -
    04 Ø4 ● ● -
    06 Ø6 ● ● ●
    Binnen hexagon quick conector 03S Ø3 ● - -
    23S Ø3,2 ● - -
    04S Ø4 ● ● -
    06S Ø6 ● ● ●
    ⑧Bevestigingsdraad Extern thread A10 M10×1,0 ● ● -
    A14 M14×1,0 - ● ●

    Montage
    Draad     		Montage Nut
    Aanhaalmoment (N.m)     		Veerbufferkracht (N)
    0 beroerte Volledige slag
    M10×1,0 2,5-3,5 1.0 3.0
    M14×1,0 6,5-7,5 2.0 5.0

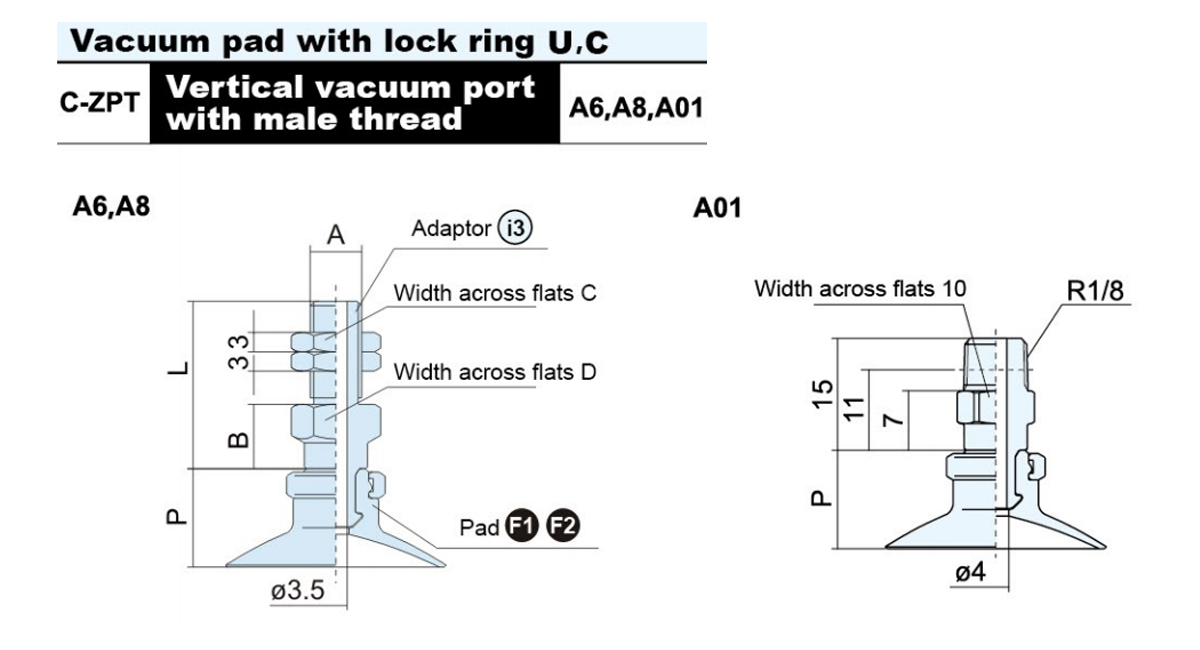

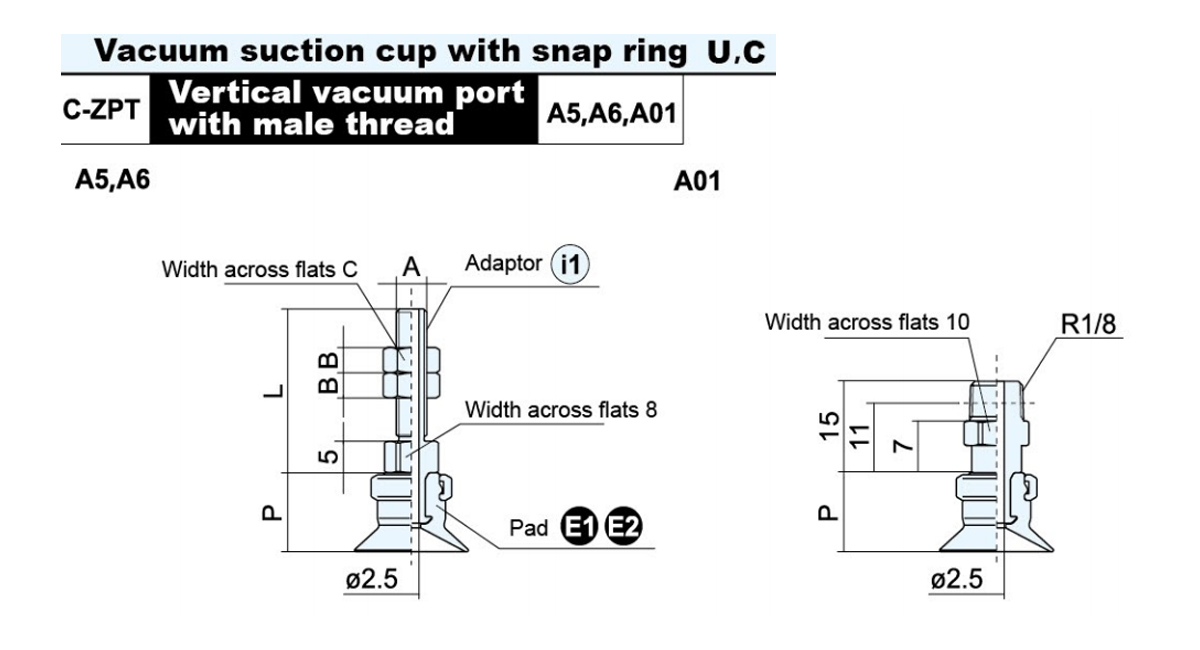

  • Model A B C L ○Pad diameter P Adaptor Model
    10 13 16

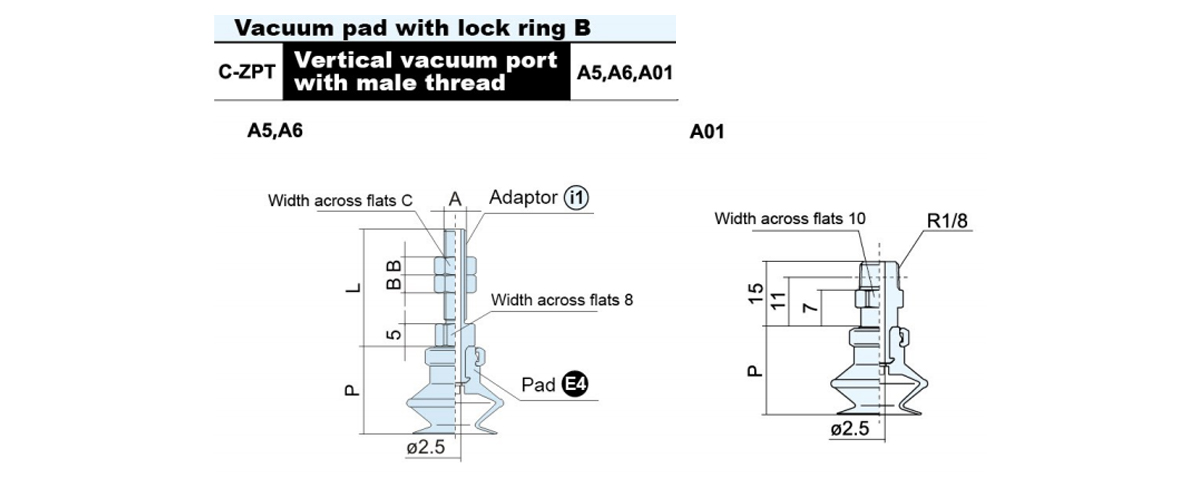

    C-ZPT○☆□-A5 M5×0.8 7 4 26 12 12 12.5 ZPT2-A5
    C-ZPT○☆□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○☆□-A01 - - ZPT2-A01
    ○ Symbol of pad diameter:10,13,16       ☆ Pad type:Flat(U),with  ribs(C)
    □Material:NBR(N),Silicone(S)

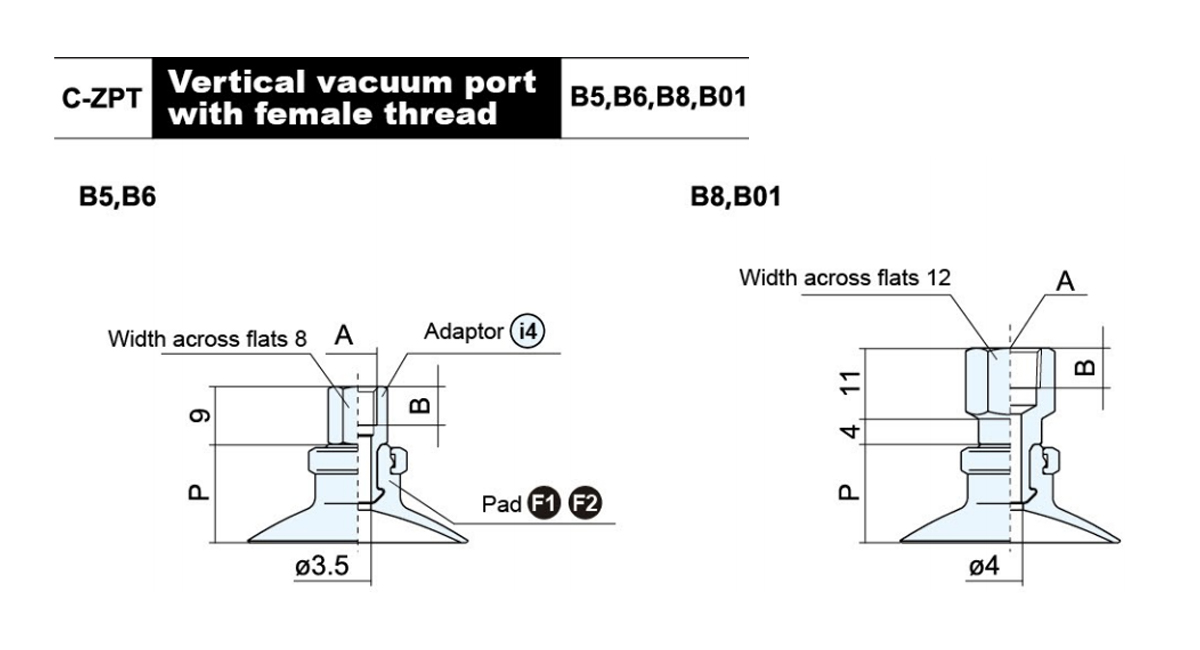

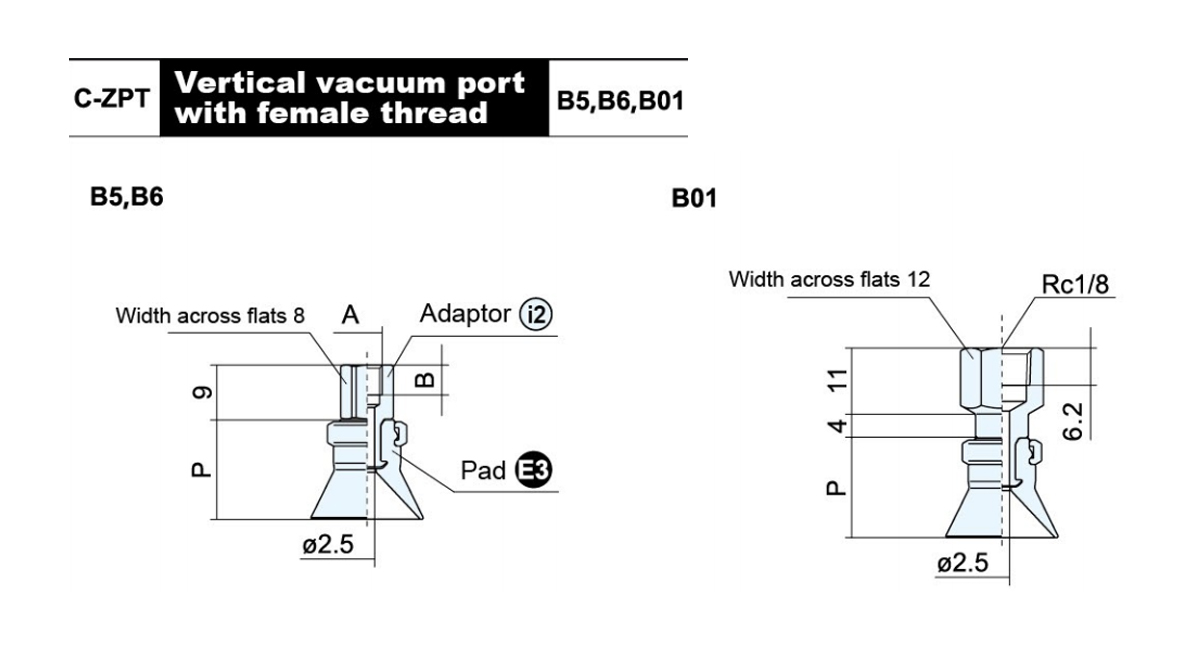

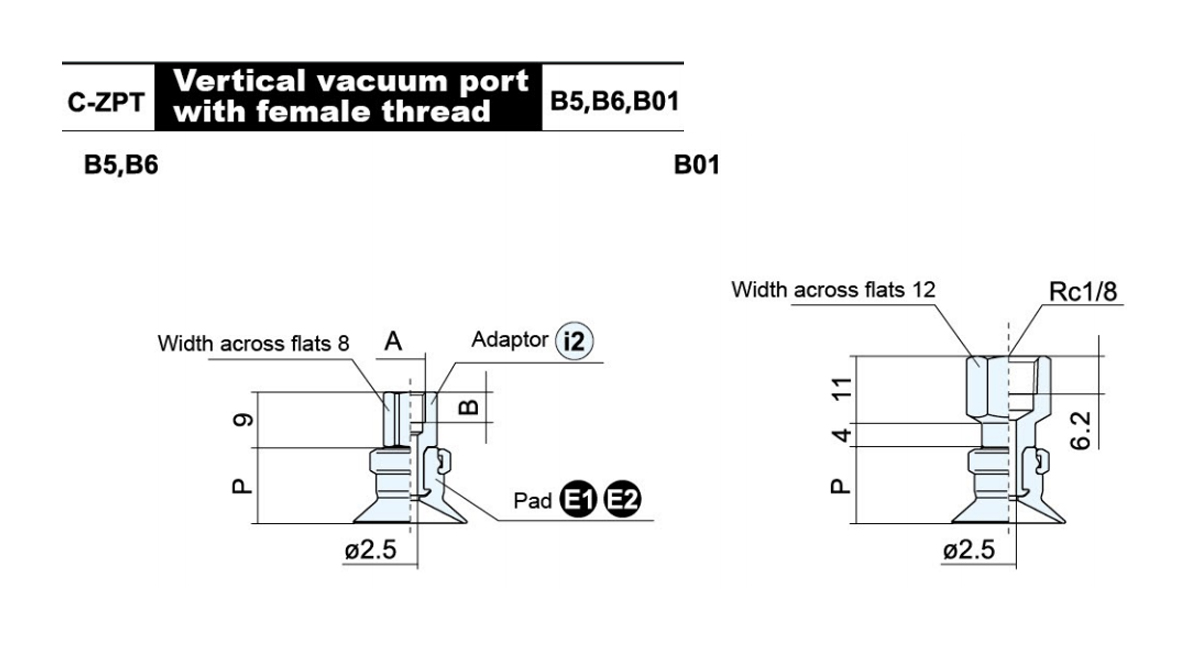

    Model A B ○Pad diameter P Adaptor Model
    10 13 16
    C-ZPT○☆□-B5 M5×0.8 5 12 12 12.5 ZPT2-B5
    C-ZPT○☆□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○☆□-B01 - ZPT2-B01
    ○Symbol of pad diameter:10,13,16
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

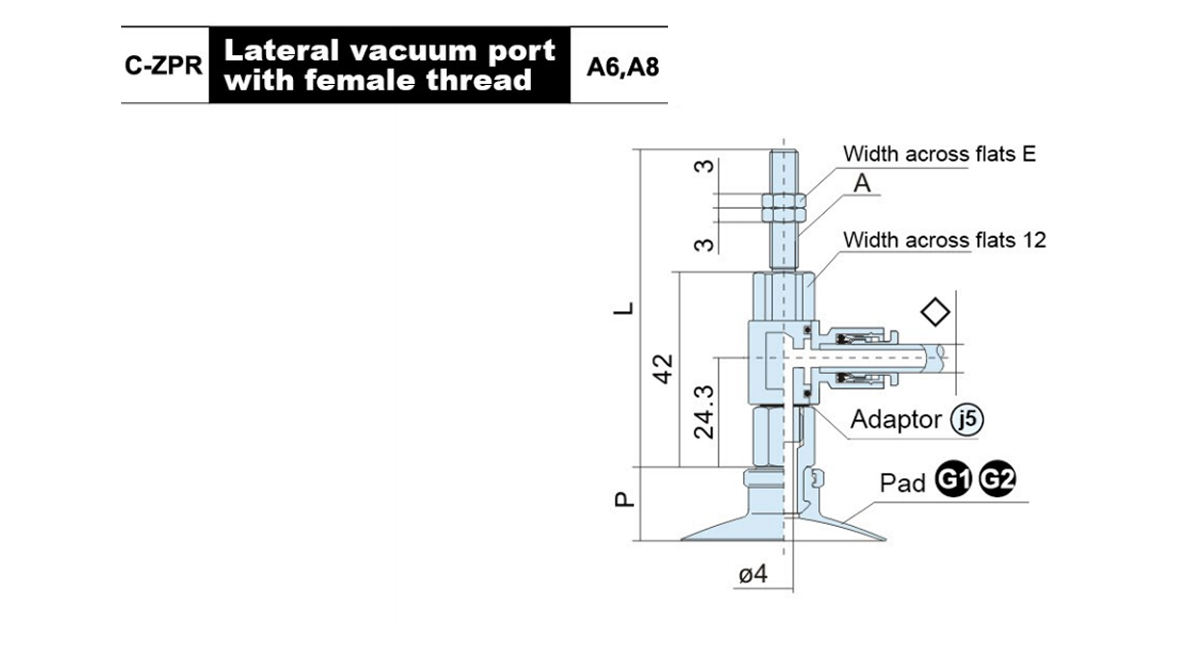

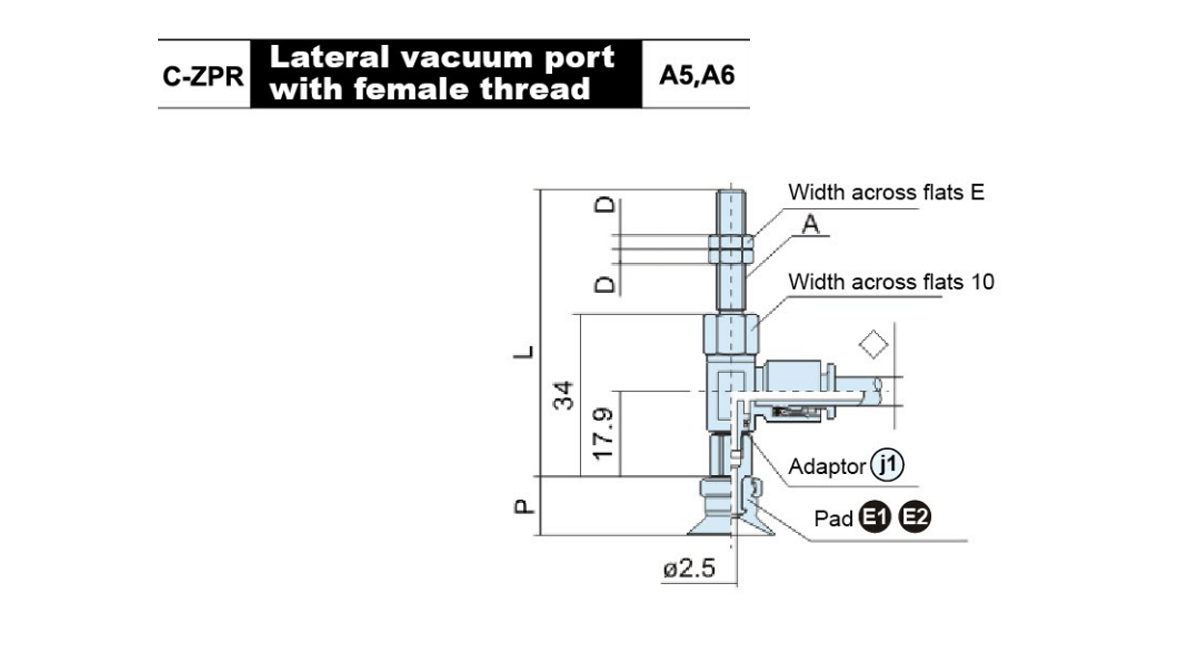

    Model A D E L ○Pad diameter P Adaptor Model
    10 13 16

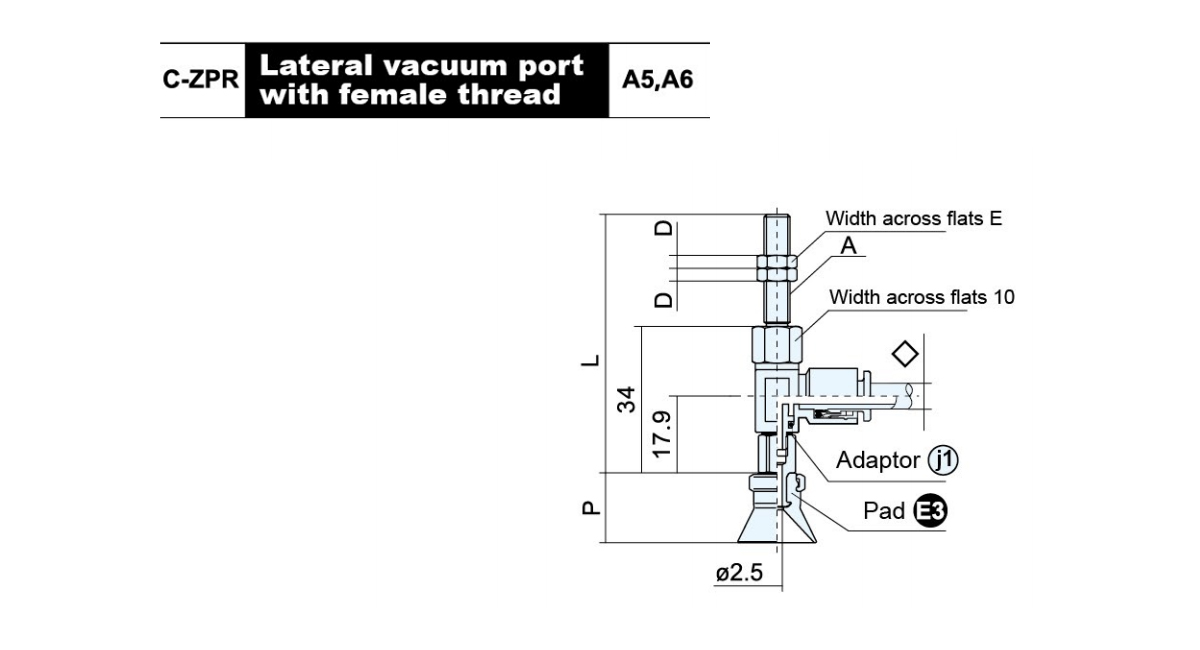

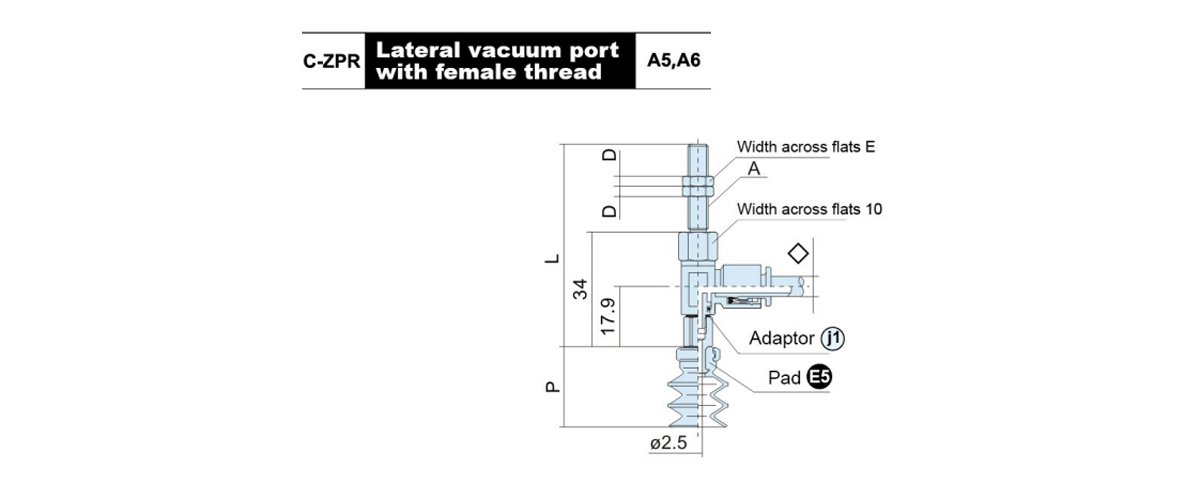

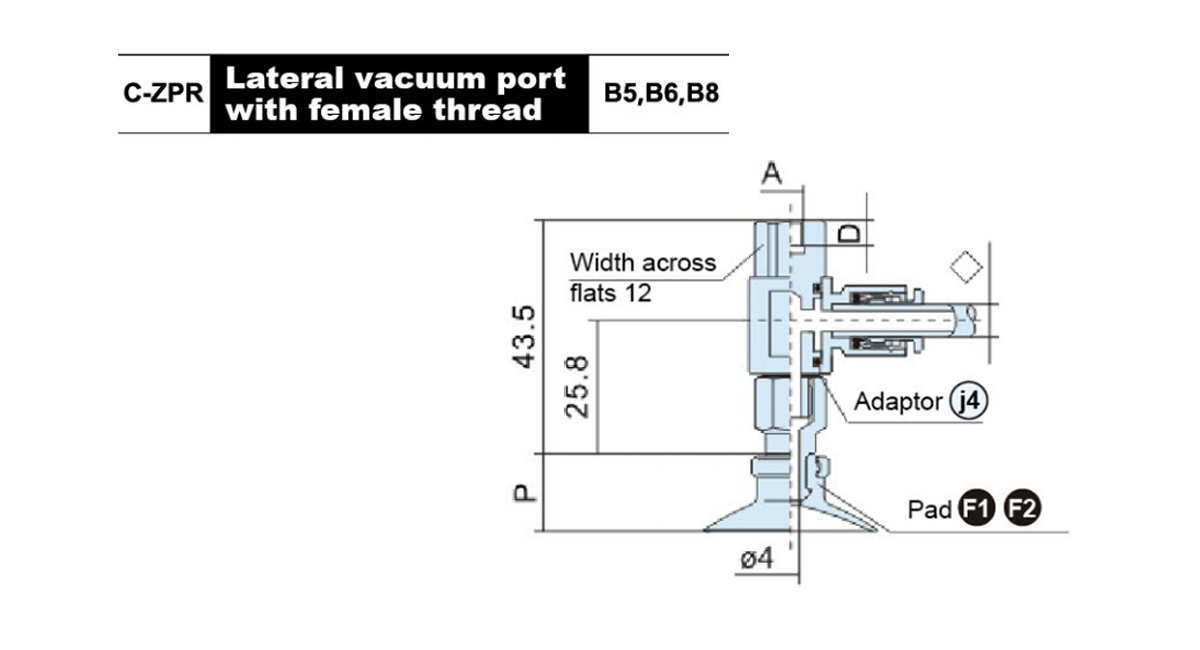

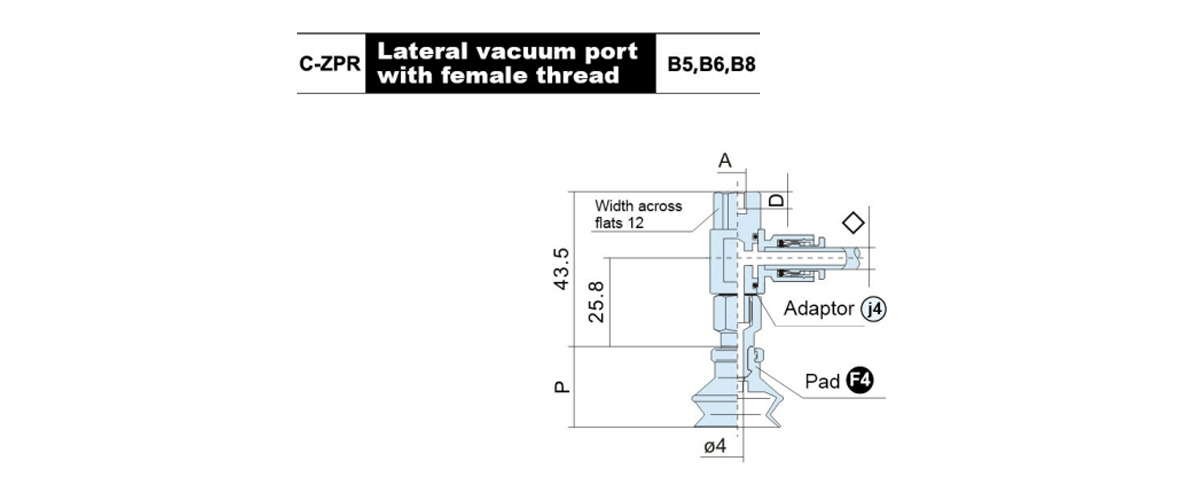

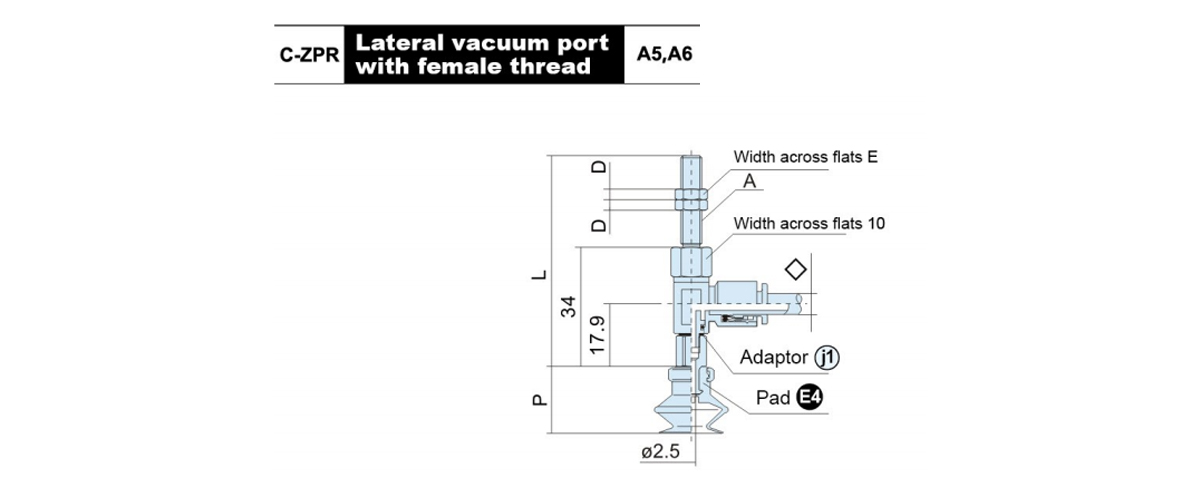

    C-ZPR○☆口 - ◇ -A5 M5×0.8 4 7 55 12 12 12.5 ZPR2-◇-A5
    C-ZPR○☆□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○Symbol of pad diameter:10,13,16 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:04,06

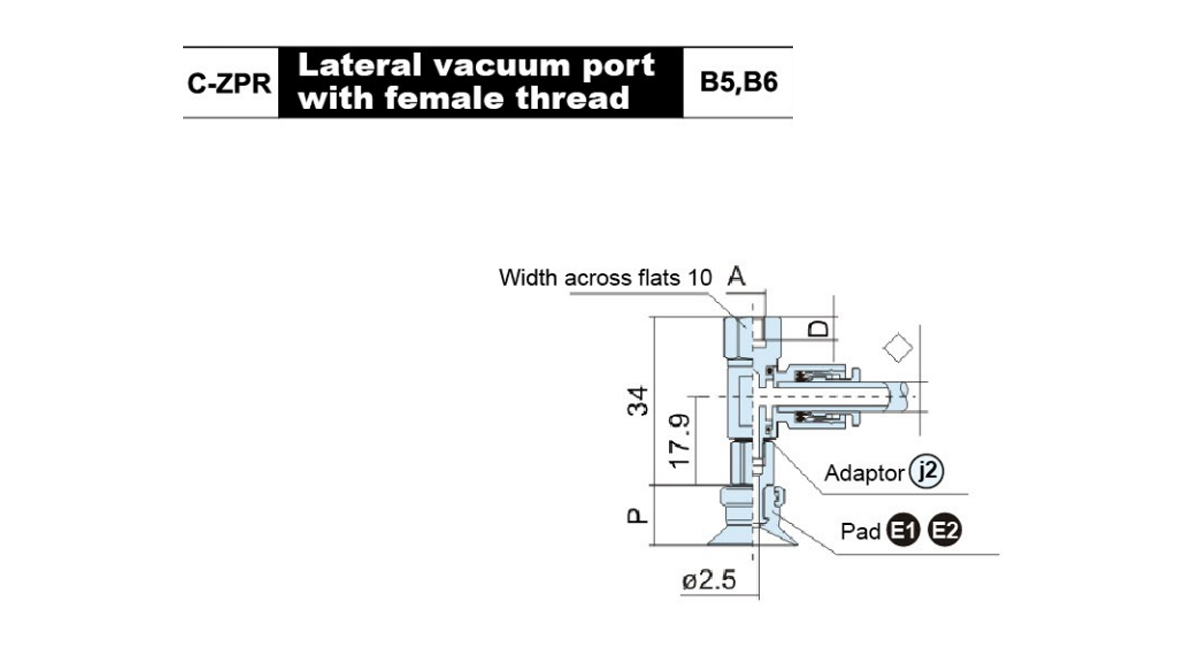

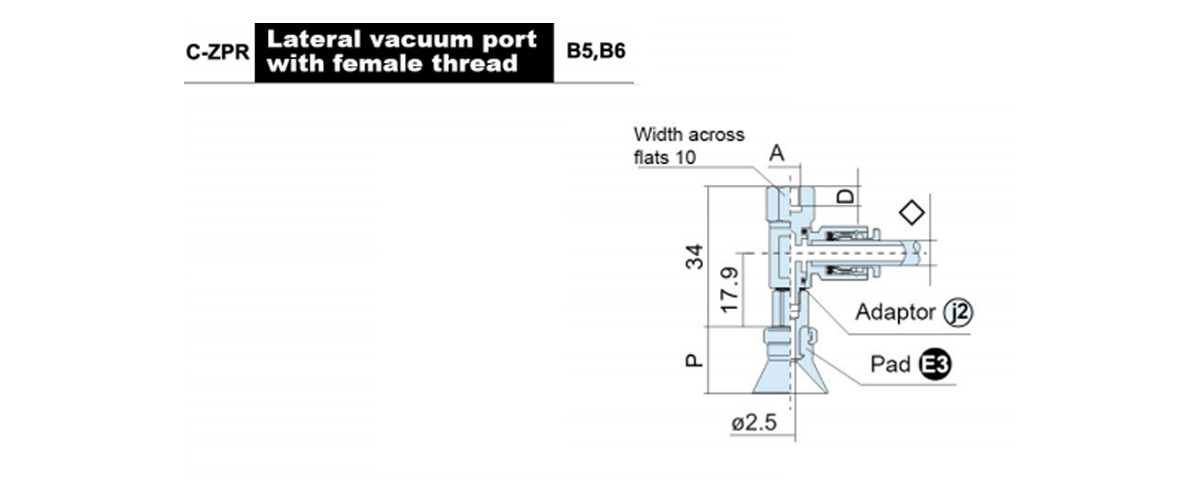

    Model A D ○Pad diameter P Adaptor Model
    10 13 16

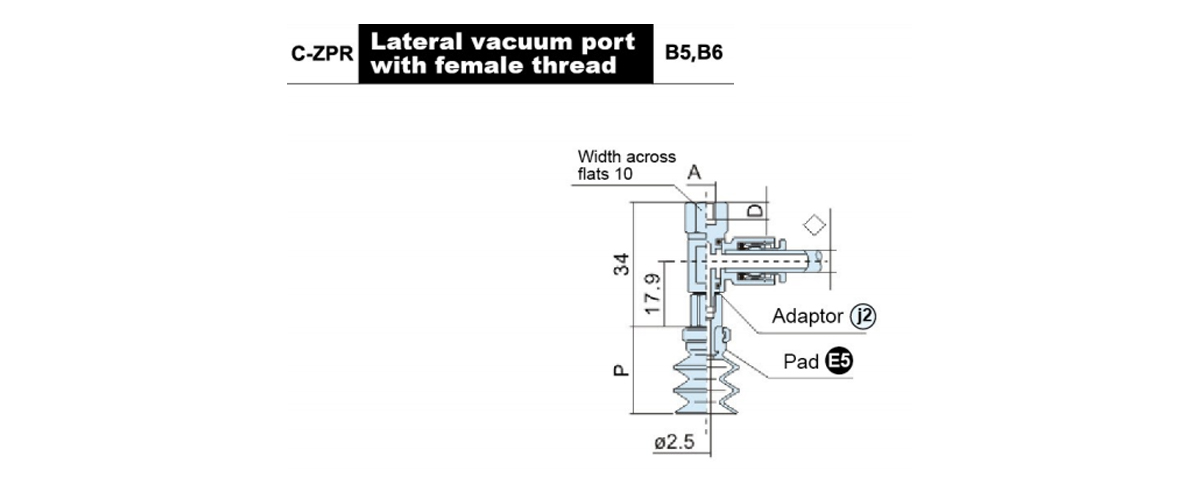

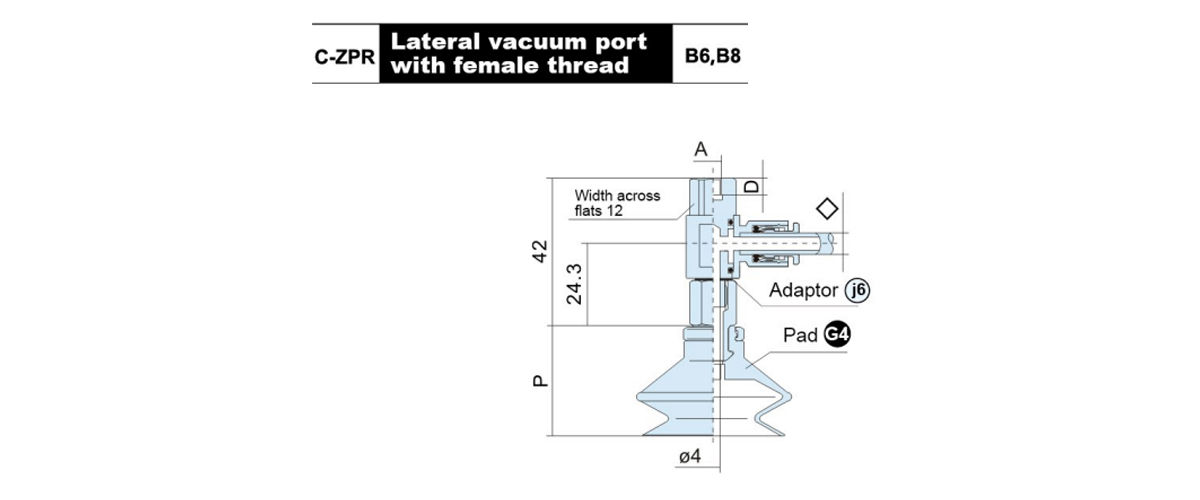

    C-ZPR○☆□-◇-B5 M5×0.8 5 12 12 12.5 ZPR2-◇-B5
    C-ZPR○☆□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○Symbol of pad diameter:10,13,16
    □Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:04,06

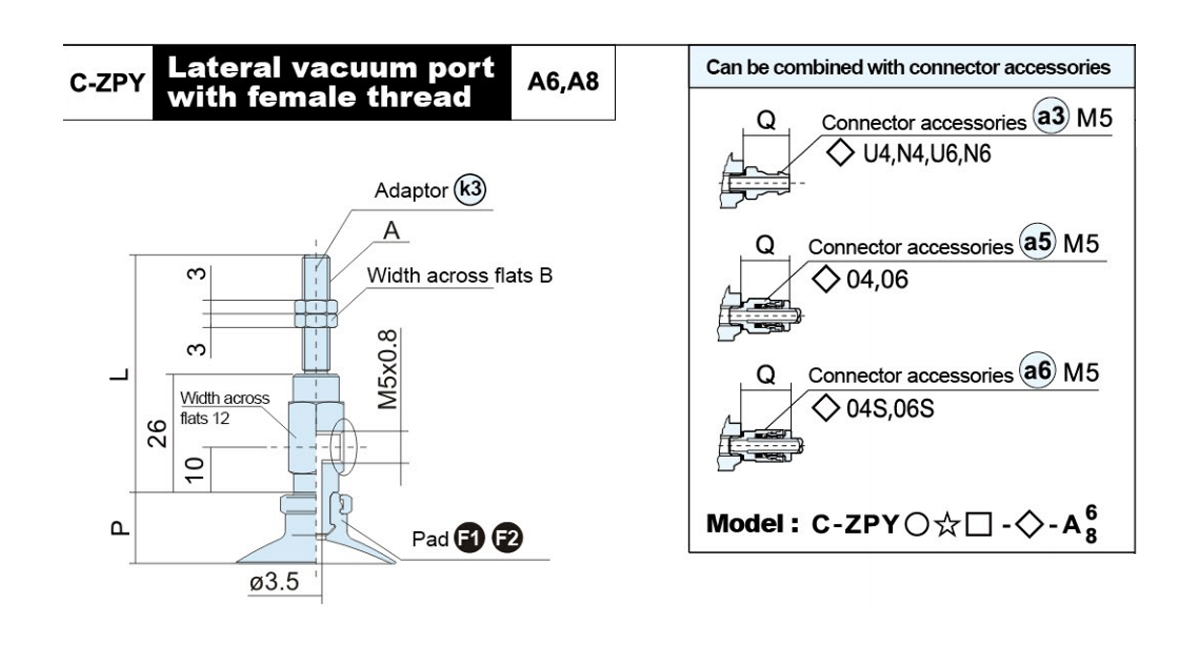

    Model A B C L ○Pad diameter P Adaptor Model
    10 13 16

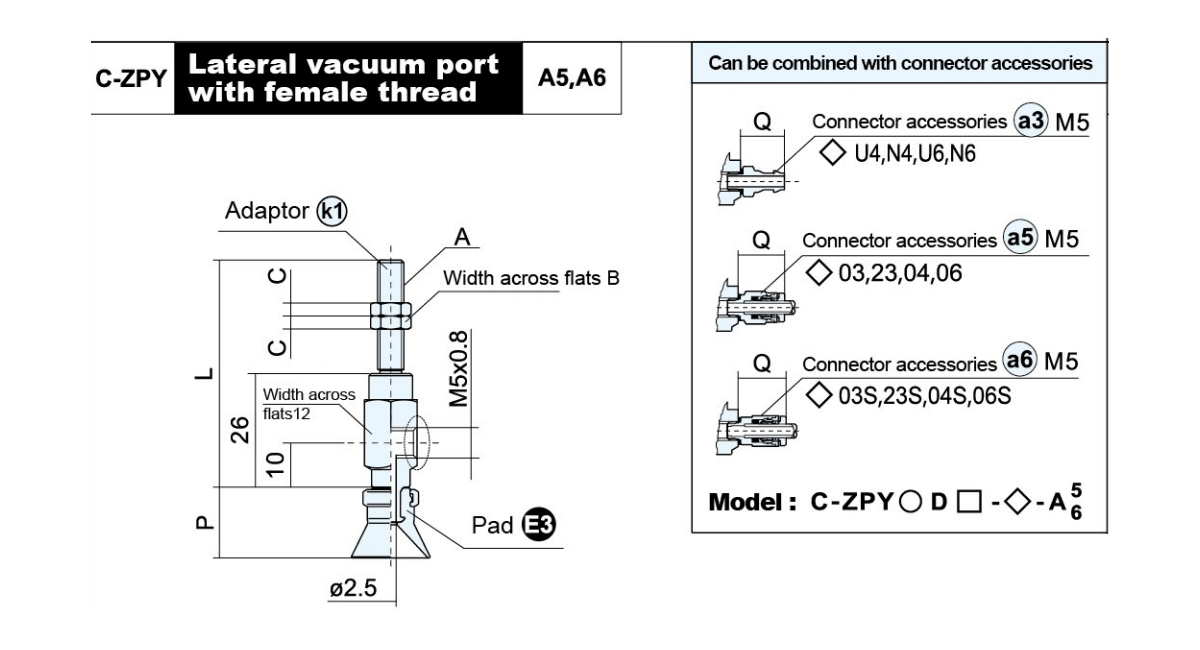

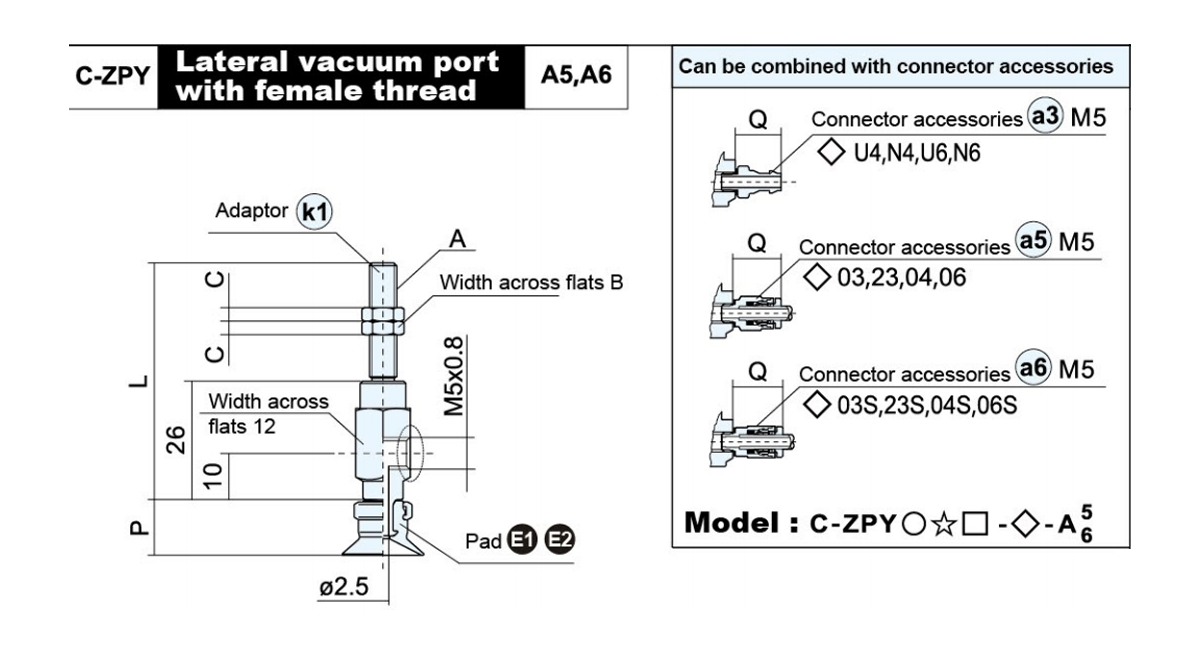

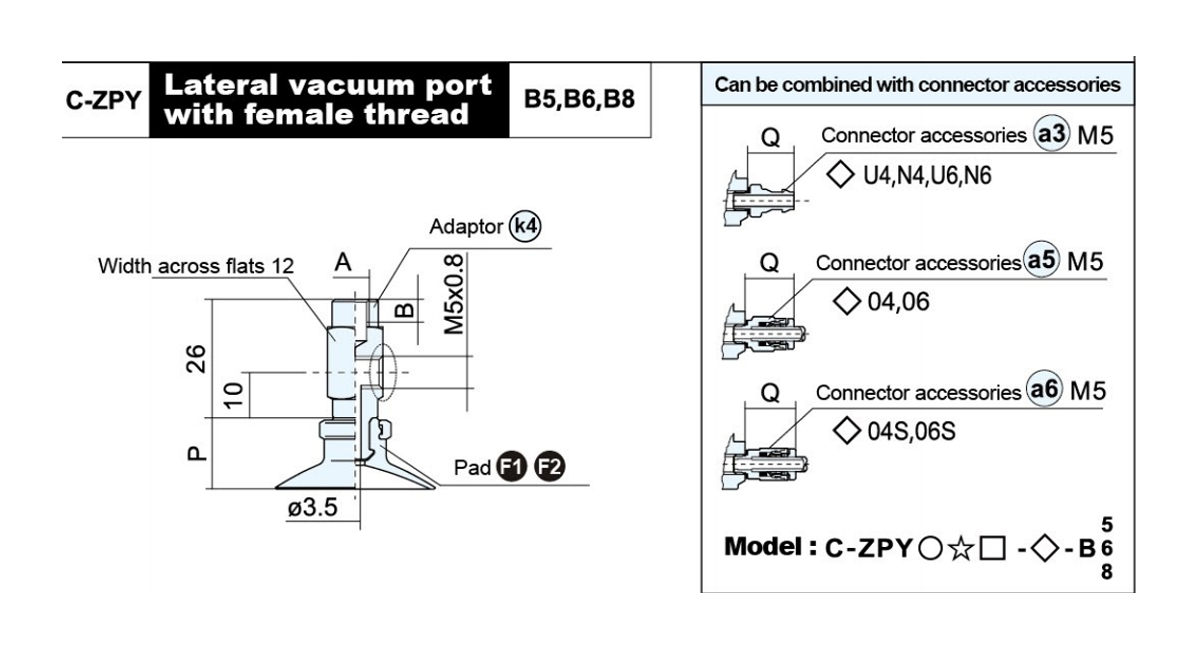

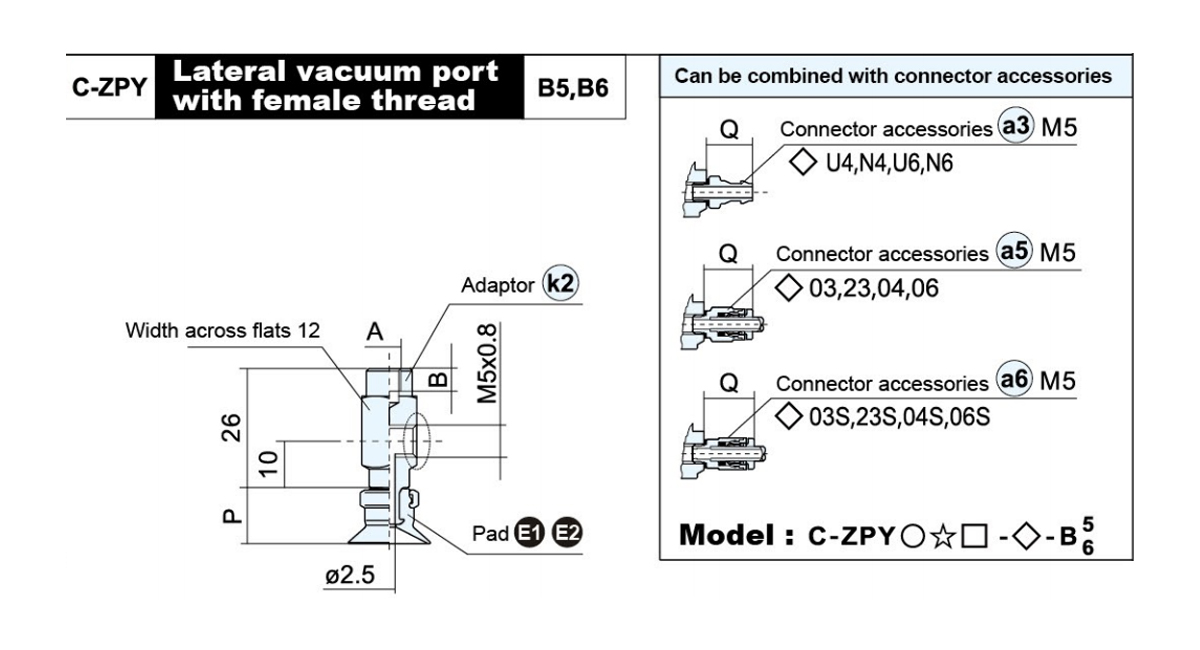

    C-ZPY○☆□-B5-A5 M5×0.8 7 4 47 12 12 12.5 ZPY2-B5-A5
    C-ZPY○☆□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○Symbol of pad diameter:10,13,16 ☆ Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

    Model A B ○Pad diameter P Adaptor Model
    10 13 16
    C-ZPY○☆□-B5-B5 M5×0.8 5 12 12 12.5 ZPY2-B5-B5
    C-ZPY○☆□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○Symbol of pad diameter:10,13,16 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

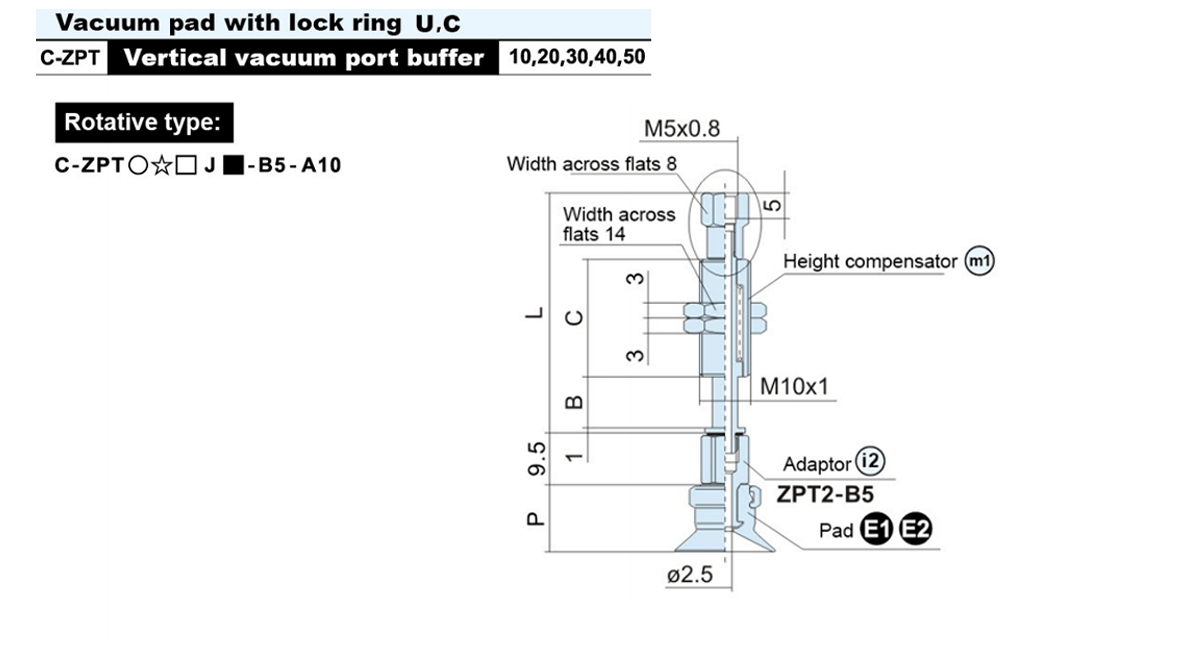

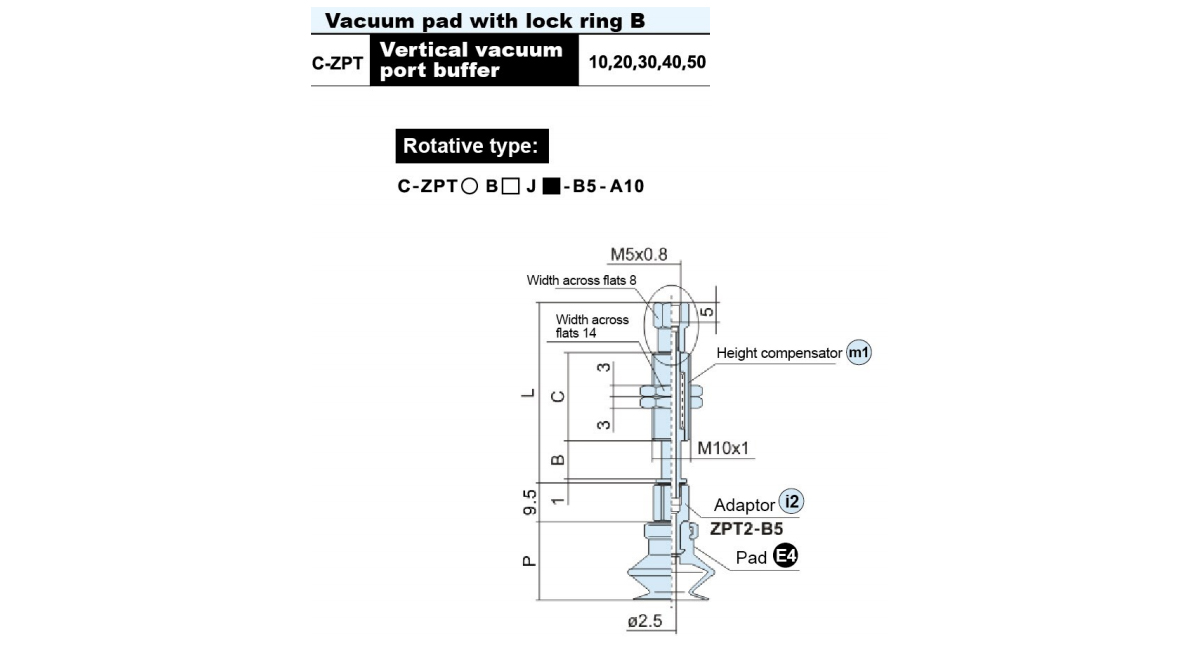

    Model B C L ○Pad Diameter  P m1 i2
    Bumper Support Model
    10 13 16

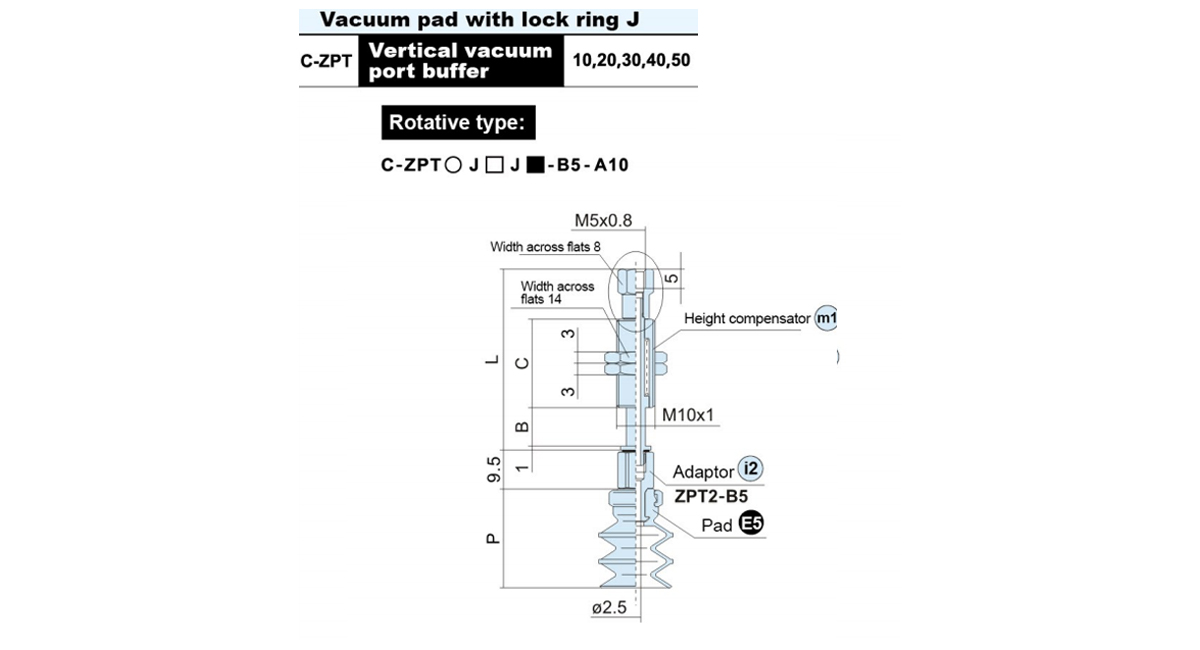

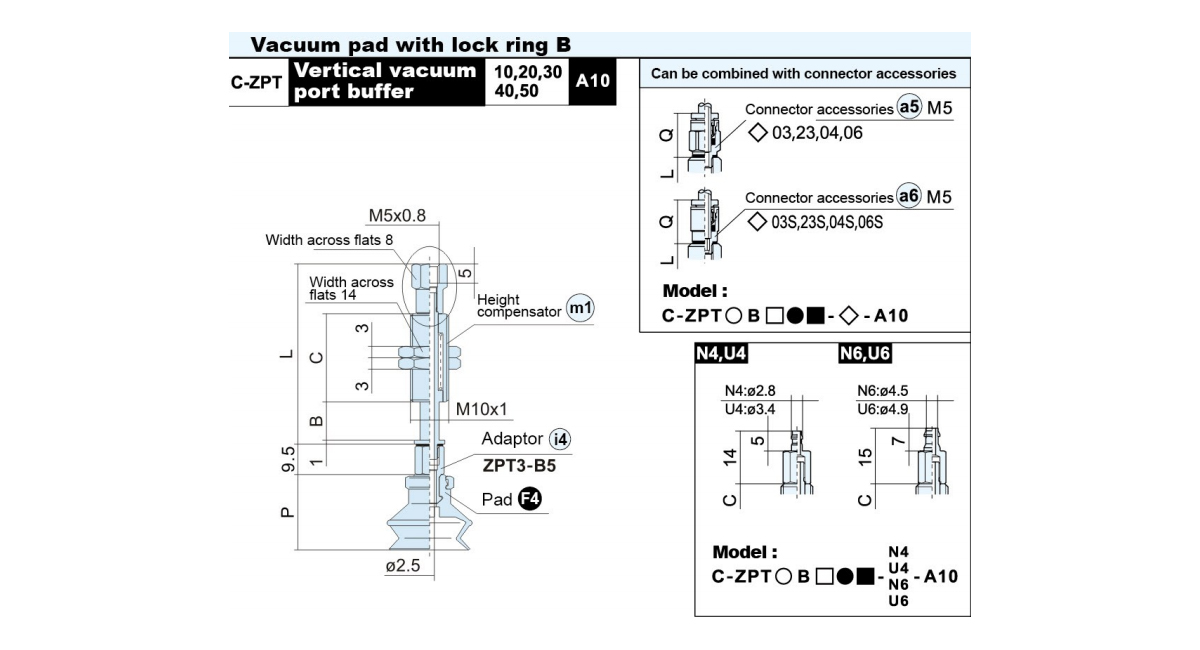

    C-ZPT○☆□J10-B5-A10 10 23 47 12 12 12.5 ZPT2-J10-B5-A10
    C-ZPT○☆□J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○☆□J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○☆□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○☆□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ■ Buffer   stroke(mm):10,20,30,40,50
    ☆ Pad  type:Flat(U),with  ribs(C)

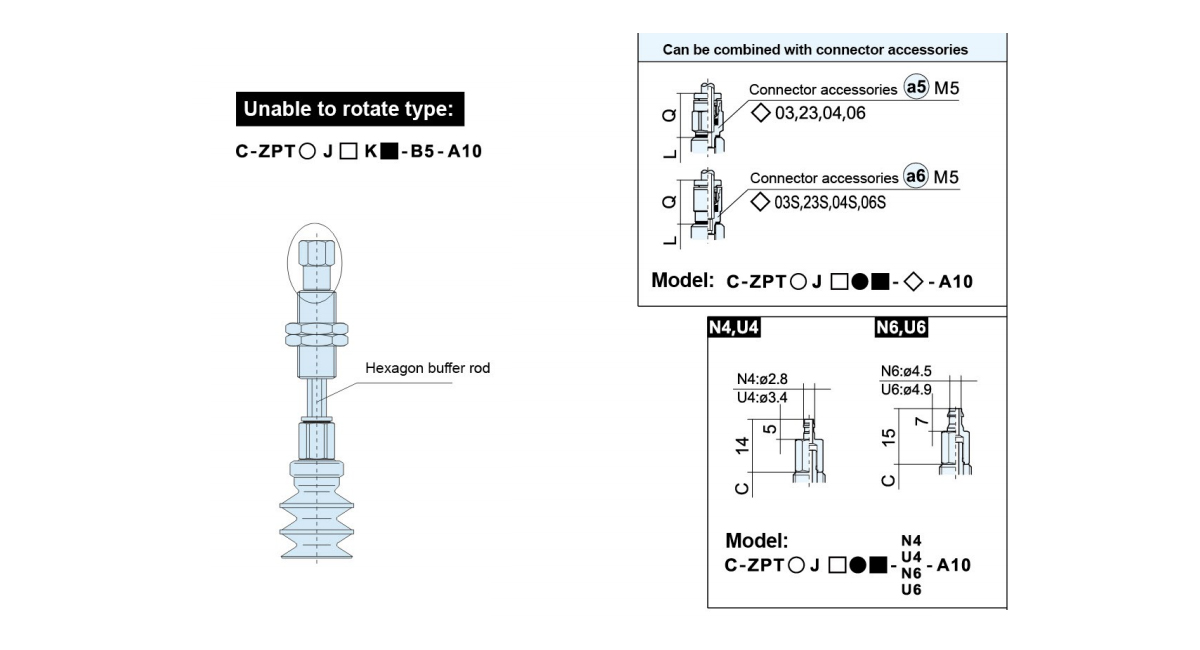

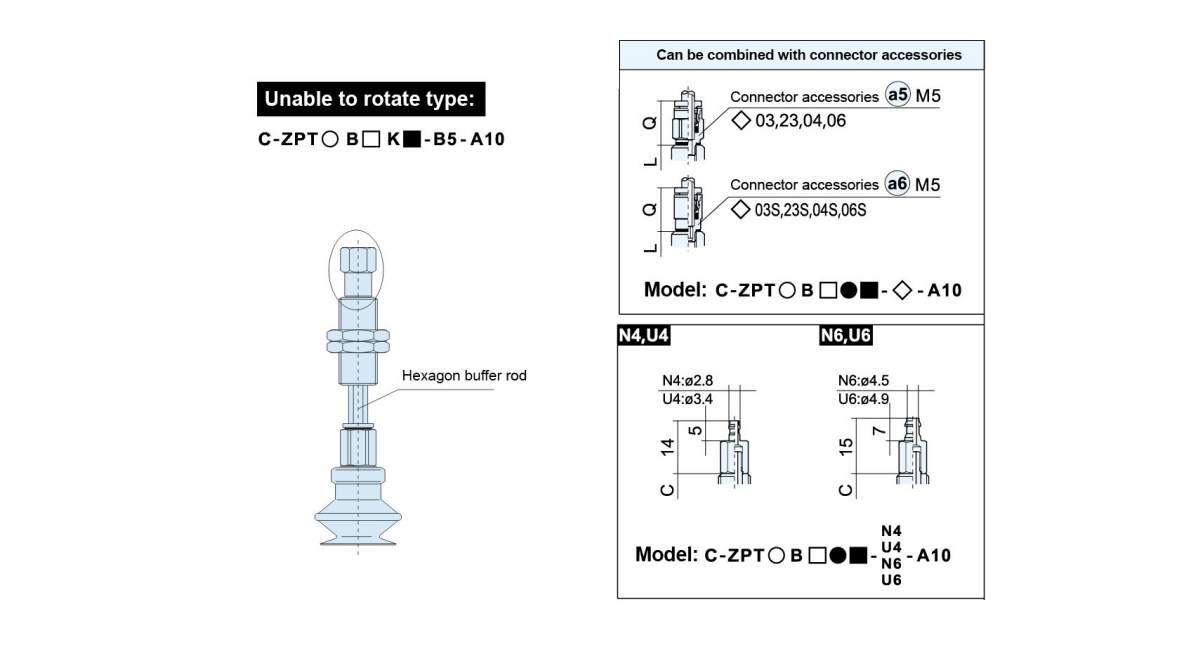

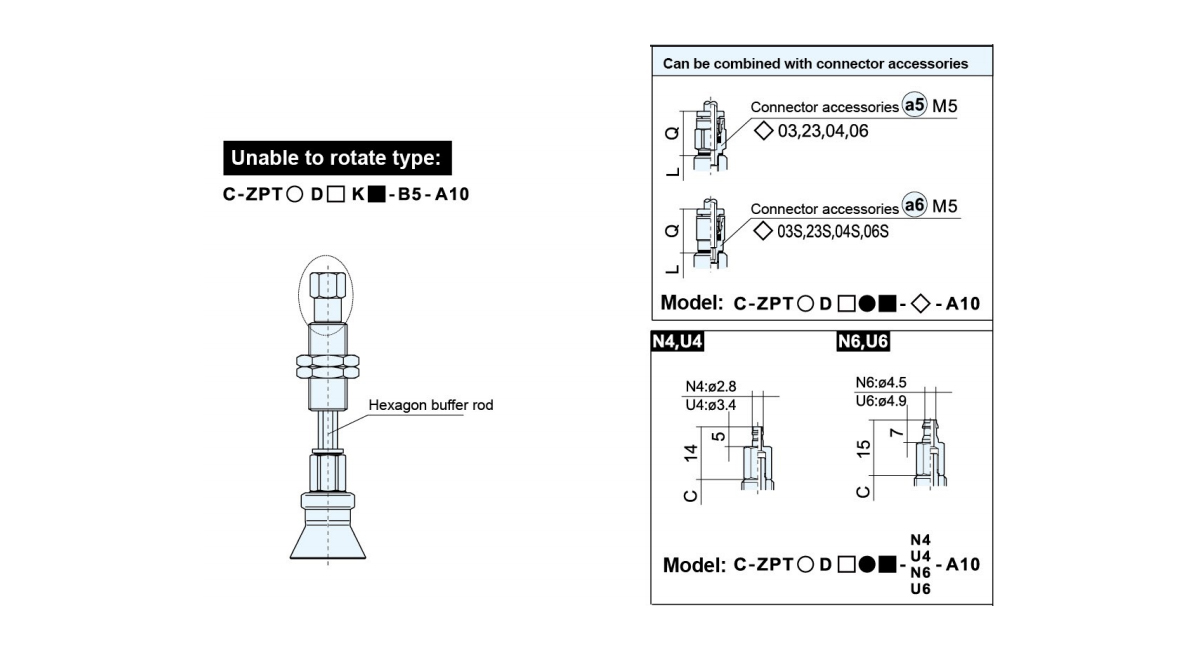

    ●  Height  compensator  type:Rotative(J),Unable  to  rotate(K)

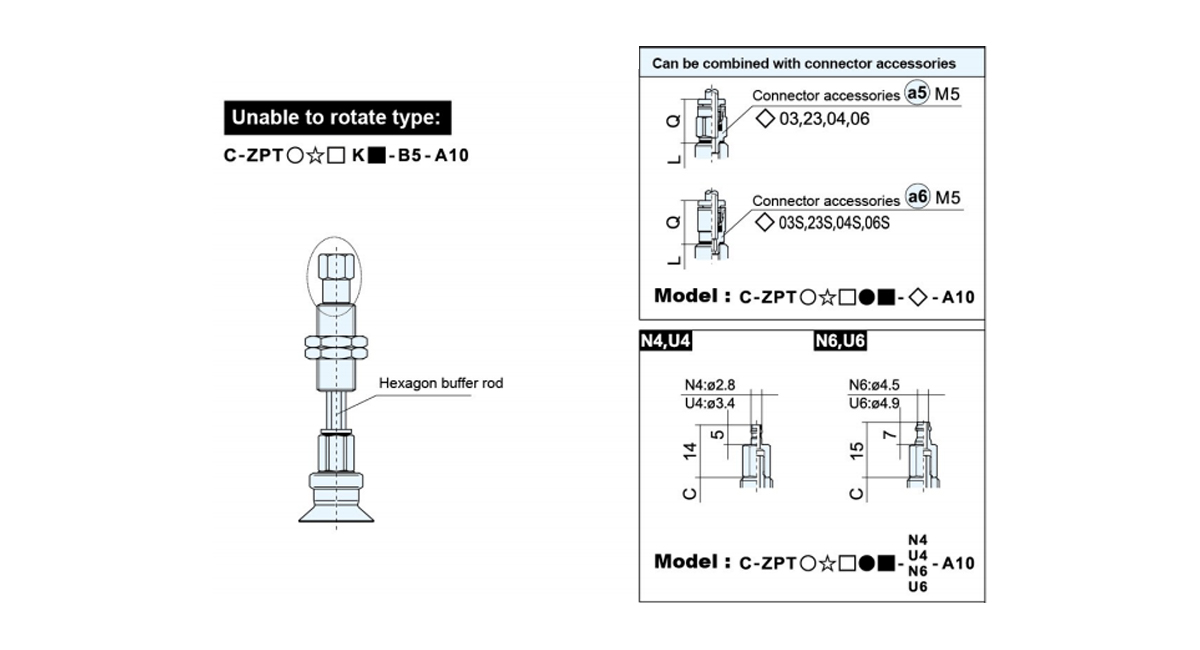

    Model B C L ○Pad Diameter  P m1 i2
    Bumper Support Model
    10 13 16
    C-ZPT○☆□K10-B5-A10 10 23 47 12 12 12.5 ZPT2-K10-B5-A10
    C-ZPT○☆□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○☆□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○☆□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○☆□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ■ Buffer   stroke(mm):10,20,30,40,50
    ☆ Pad  type:Flat(U),with  ribs(C)
    ●  Height  compensator  type:Rotative(J),Unable  to  rotate(K)

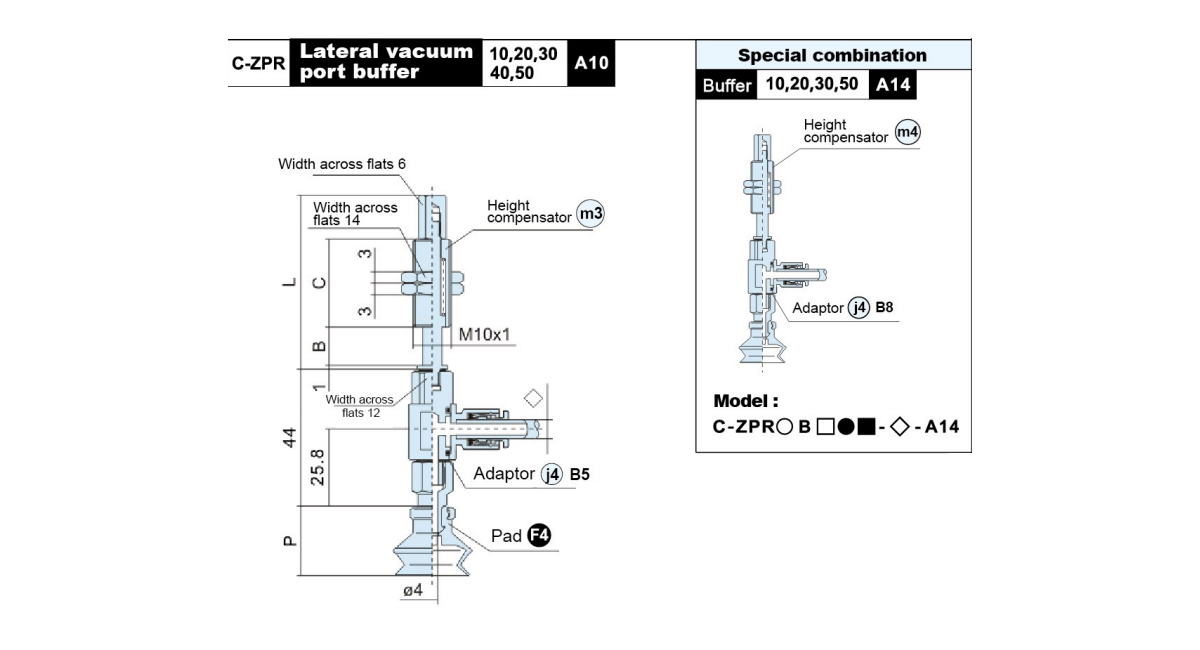

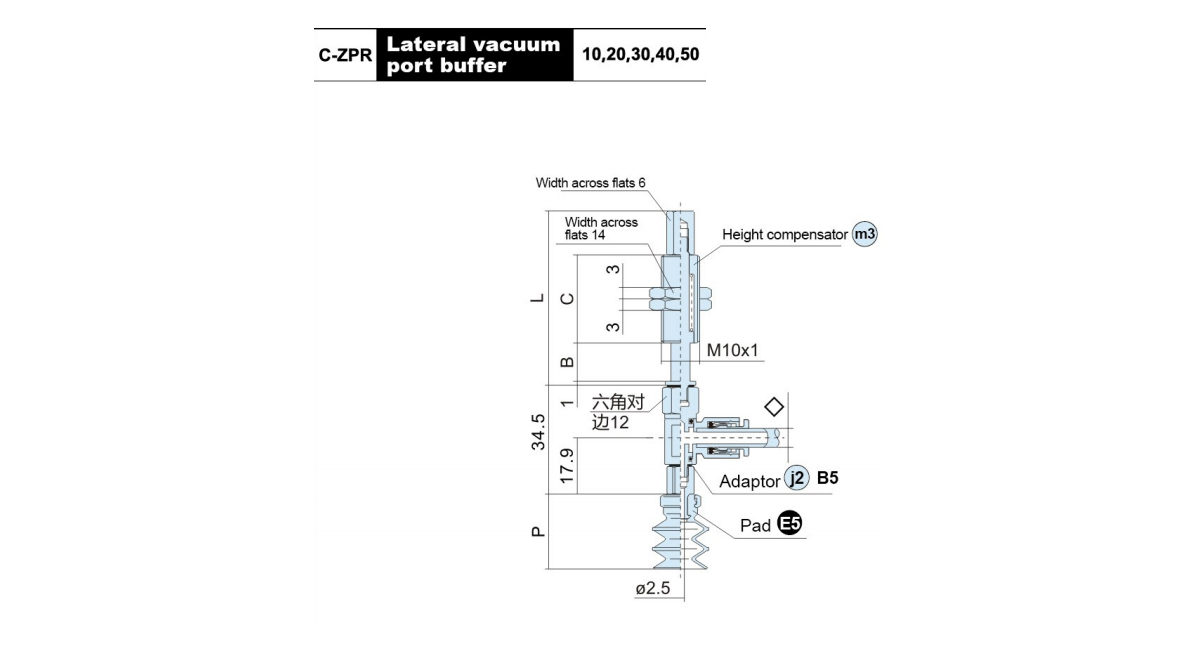

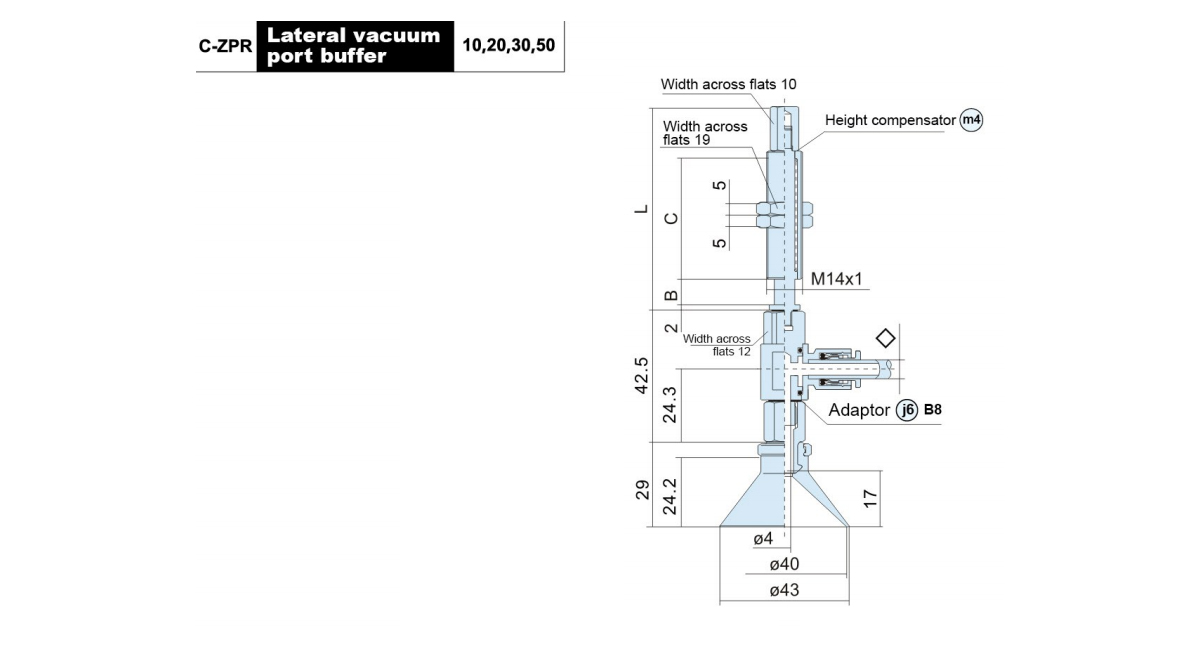

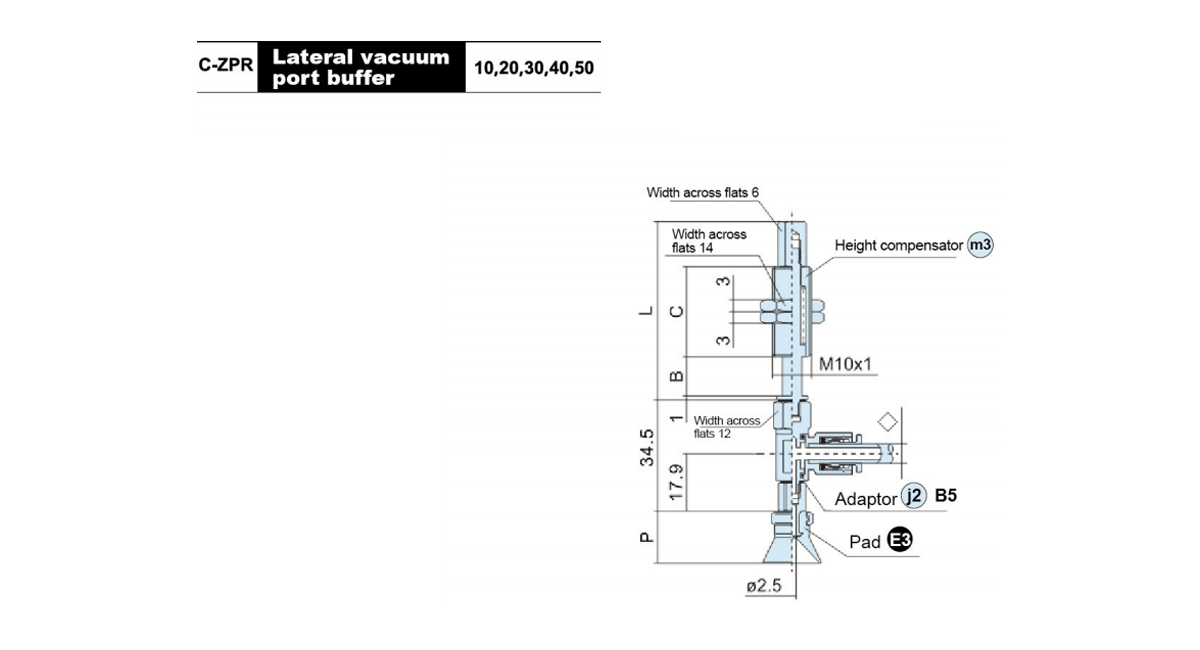

    Model B C L ○Pad Diameter P m3 j2
    Bumper Support Model
    10 13 16

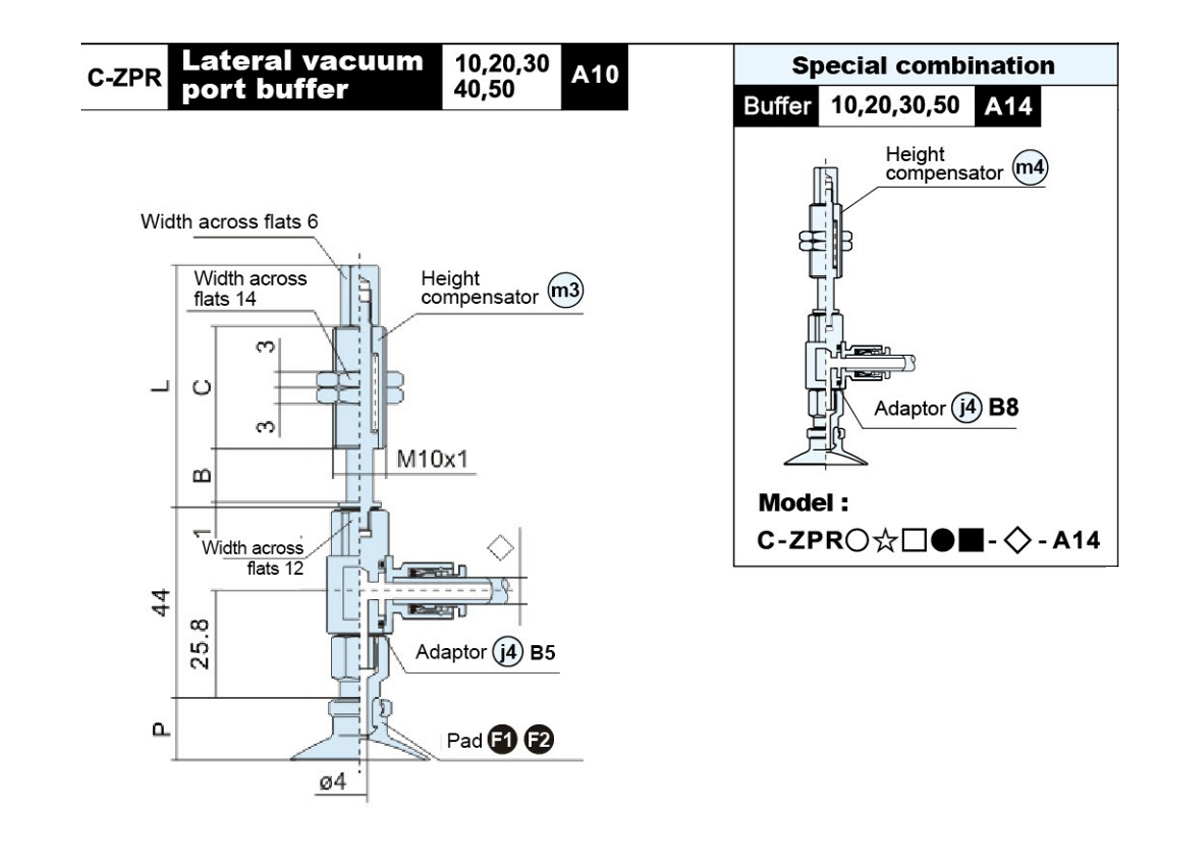

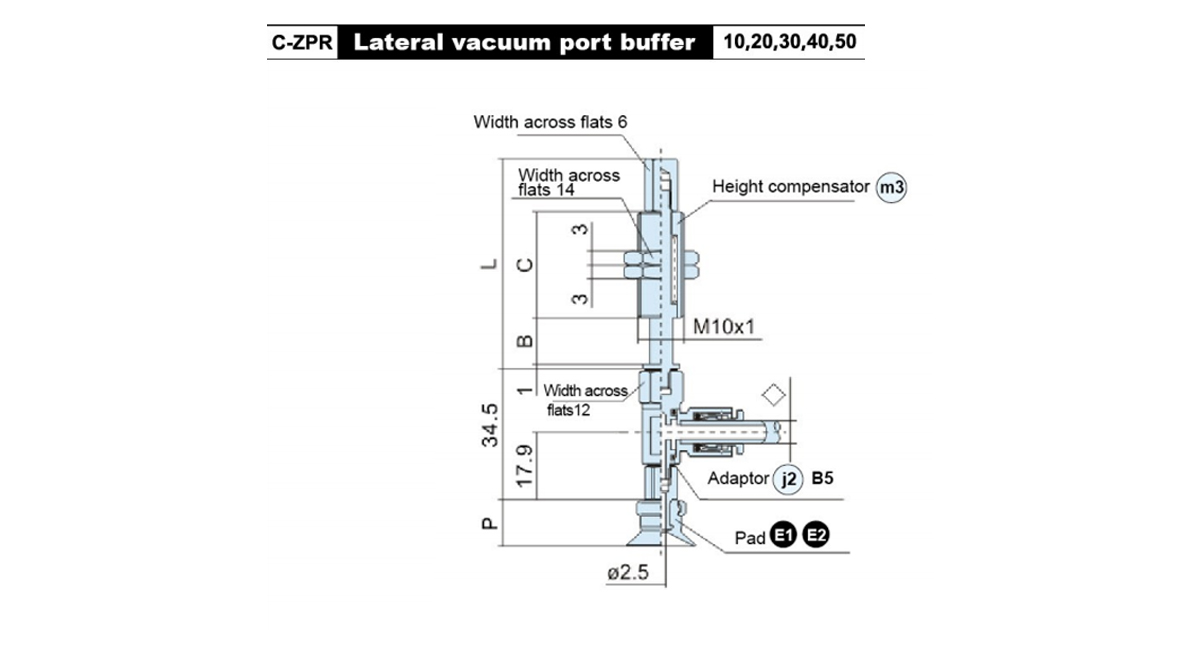

    C-ZPR○☆□●10-◇-A10 10 23 45 12 12 12.5 ZPR2-●10-◇-A10
    C-ZPR○☆□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○☆□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○☆□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○☆□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:04,06
    ● Height compensator type:Rotative(J),
    Unable to rotate(K)

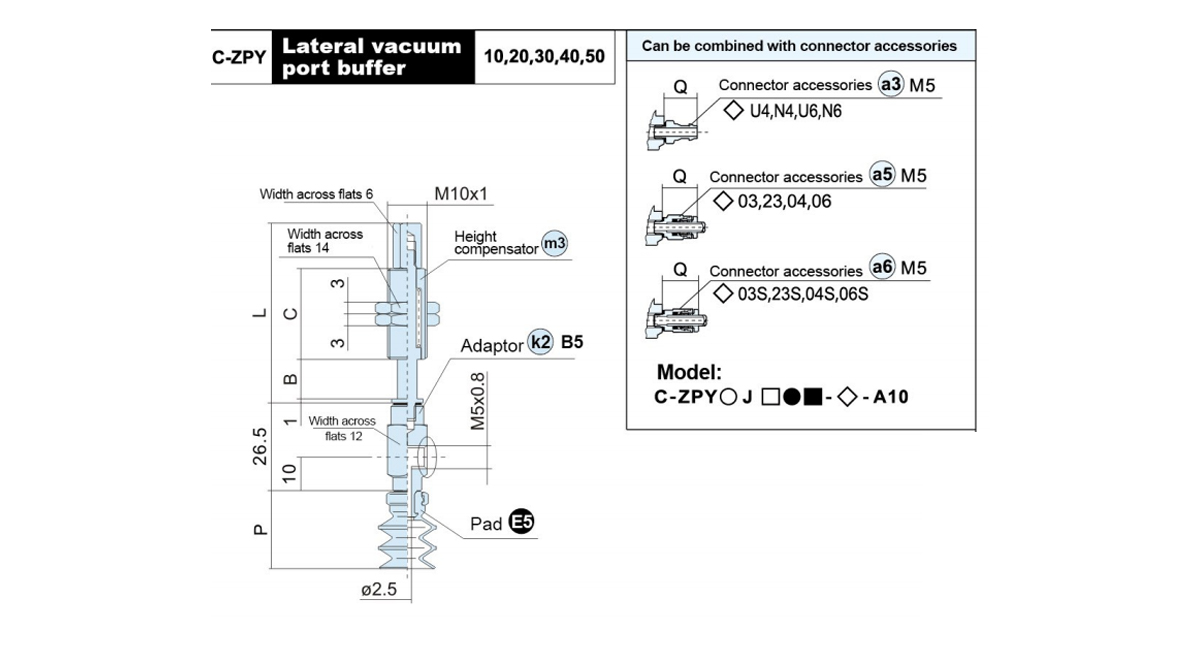

    Model B C L ○Pad Diameter P m3 j⑫
    Bumper Support Model
    10 13 16
    C-ZPY○☆□●10-B5-A10 10 23 45 12 12 12.5 ZPY2-●10-B5-A10
    C-ZPY○☆口●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○☆□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○☆□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○☆□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with  ribs(C)
    ●   Height   compensator   type:Rotative(J),
    ■ Buffer stroke(mm):10,20,30,40,50  Unable to rotate(K)

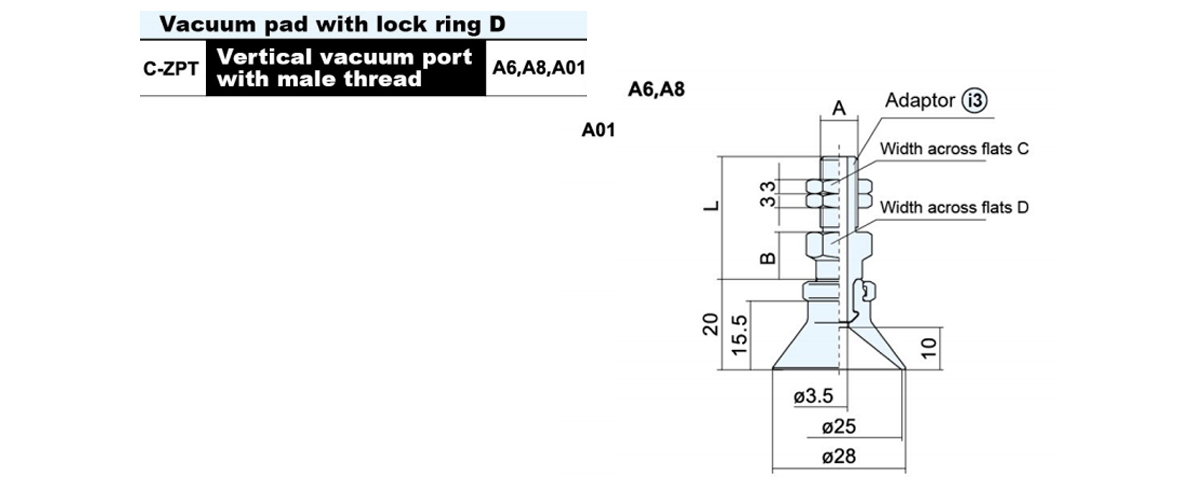

    Model A B C D L ○ Pad diameter P Adaptor Model
    20 25 32
    C-ZPT○☆□-A6 M6×1.0 5 8 8 31 14 14 14.5 ZPT3-A6
    C-ZPT○☆□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT○☆□-A01 - - - - - ZPT3-A01
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

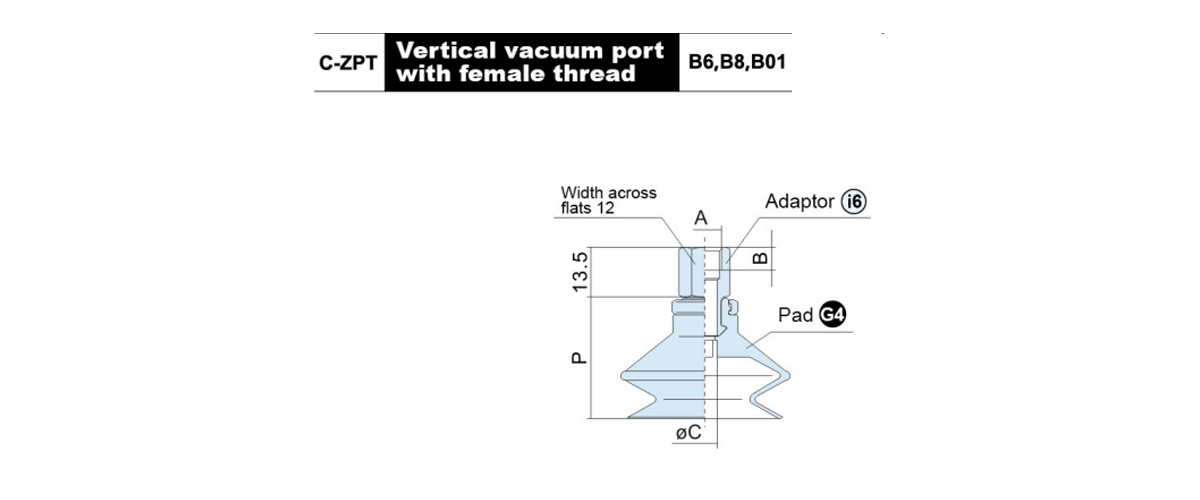

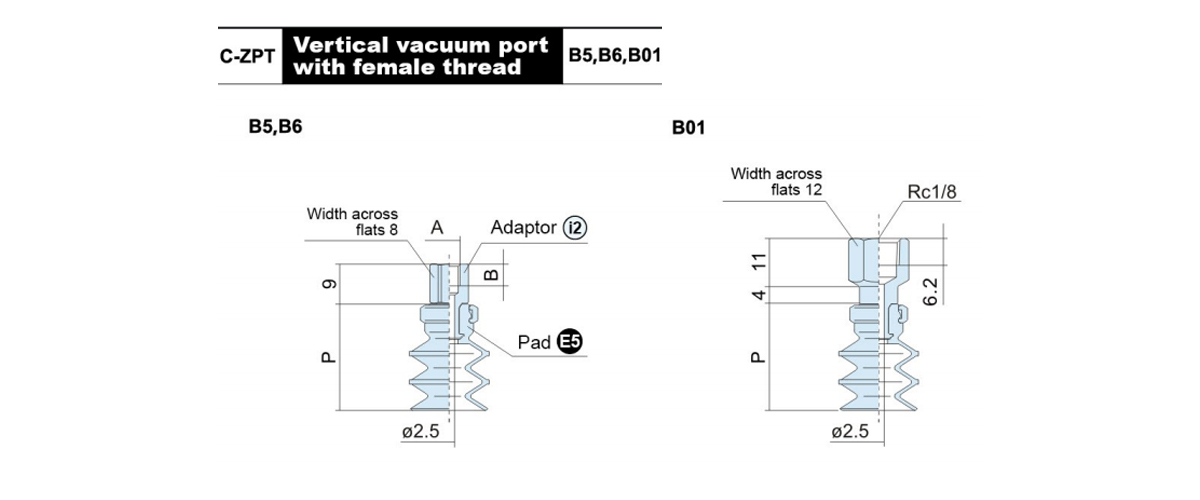

    Model A B ○Pad diameter P Adaptor Model
    20 25 32

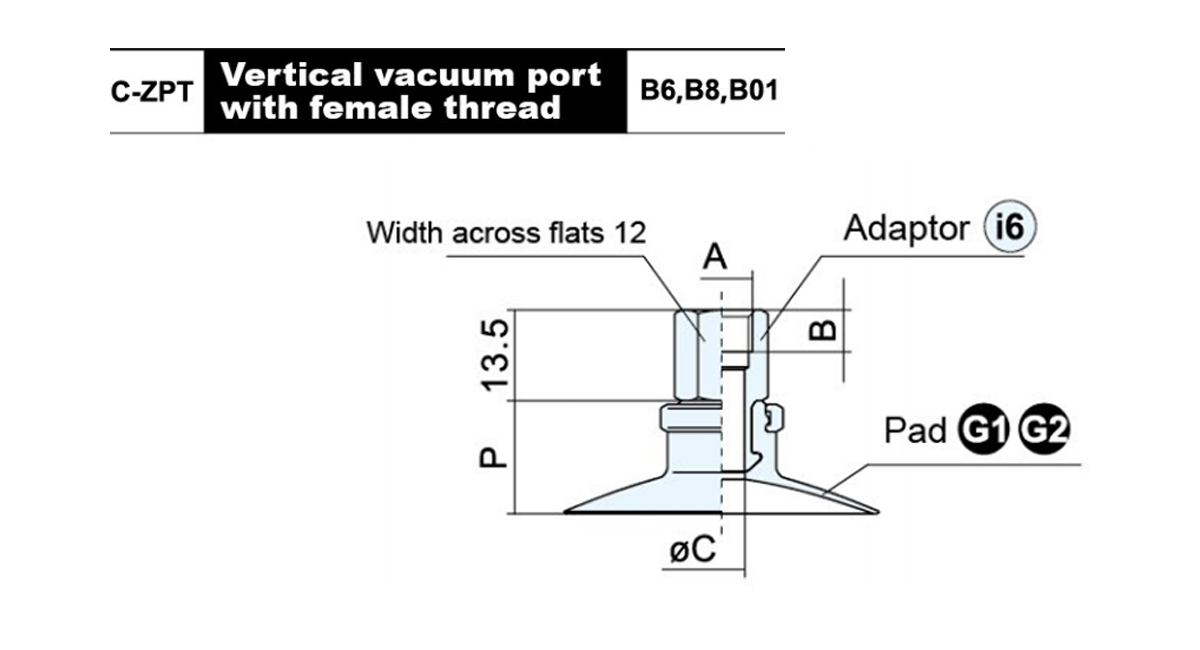

    C-ZPT○☆□-B5 M5×0.8 5 14 14 14.5 ZPT3-B5
    C-ZPT○☆□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT○☆□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT○☆□-B01 Rc1/8 6.2 ZPT3-B01
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

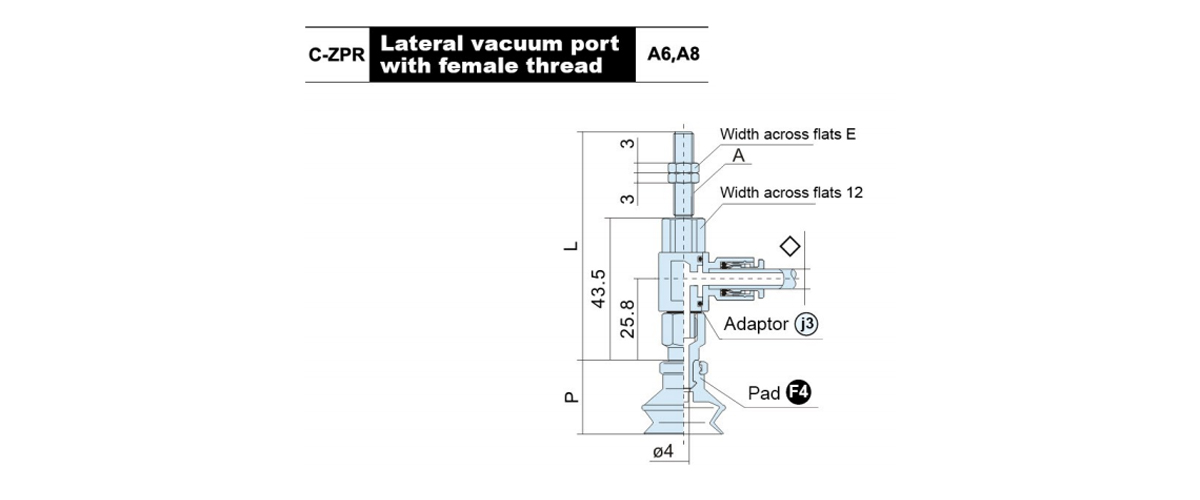

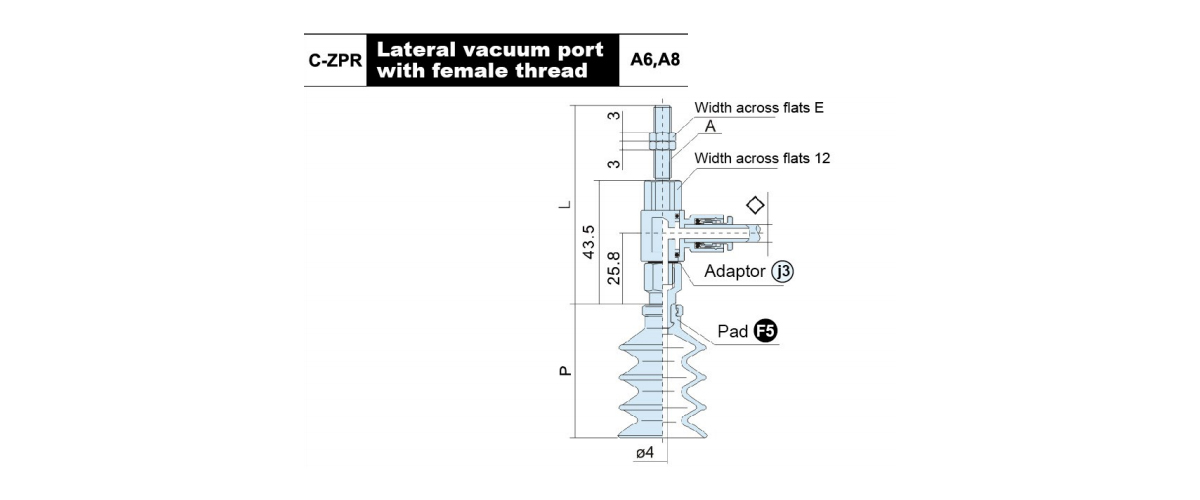

    Model A E L ○Pad diameter P Adaptor Model
    20 25 32

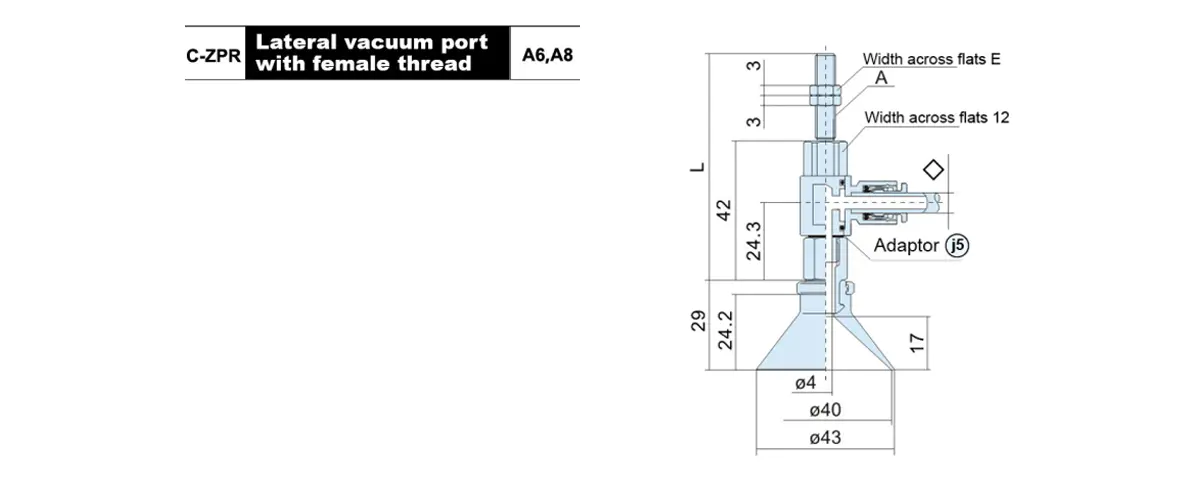

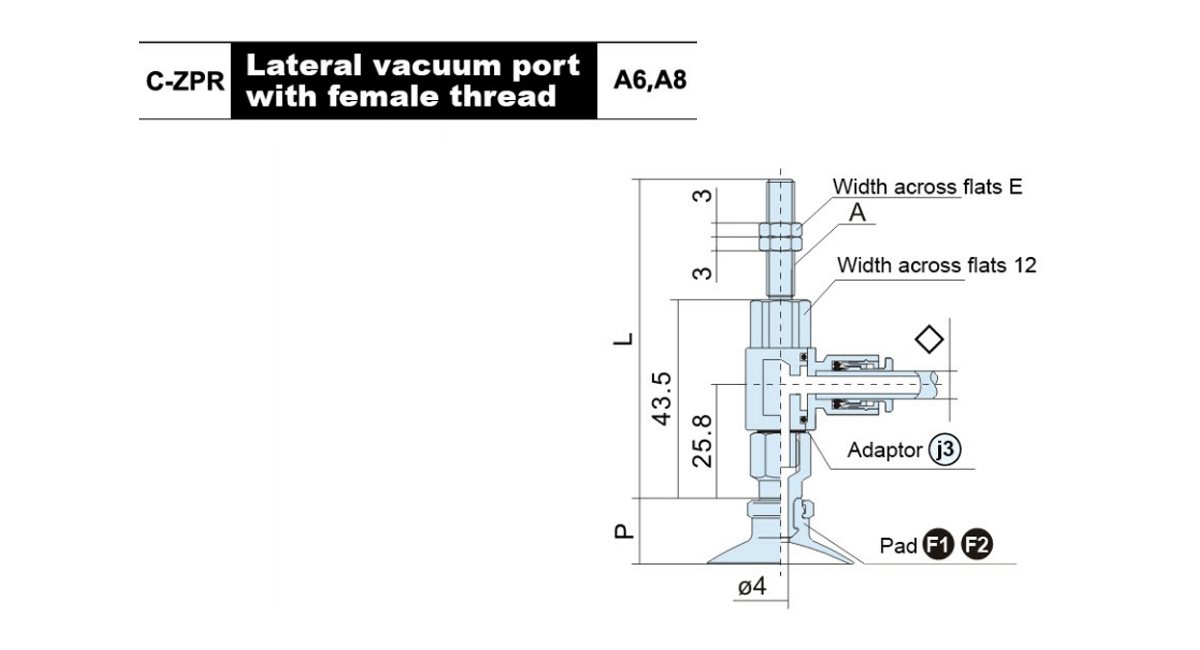

    C-ZPR○☆□-◇-A6 M6×1.0 8 69.5 14 14 14.5 ZPR3-◇-A6
    C-ZPR○☆□-◇-A8 M8×1.0 12 59.5 ZPR3-◇-A8
    ○Symbol of pad diameter:20,25,32☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)    ◇Vacuum port connection:04,06,08

    Model A D ○ Pad diameter P Adaptor Model
    20 25 32
    C-ZPR○☆口 - ◇-B5 M5×0.8 5 14 14 14.5 ZPR3-◇-B5
    C-ZPR○☆□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR○☆□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)          Vacuum port connection:04,06,08

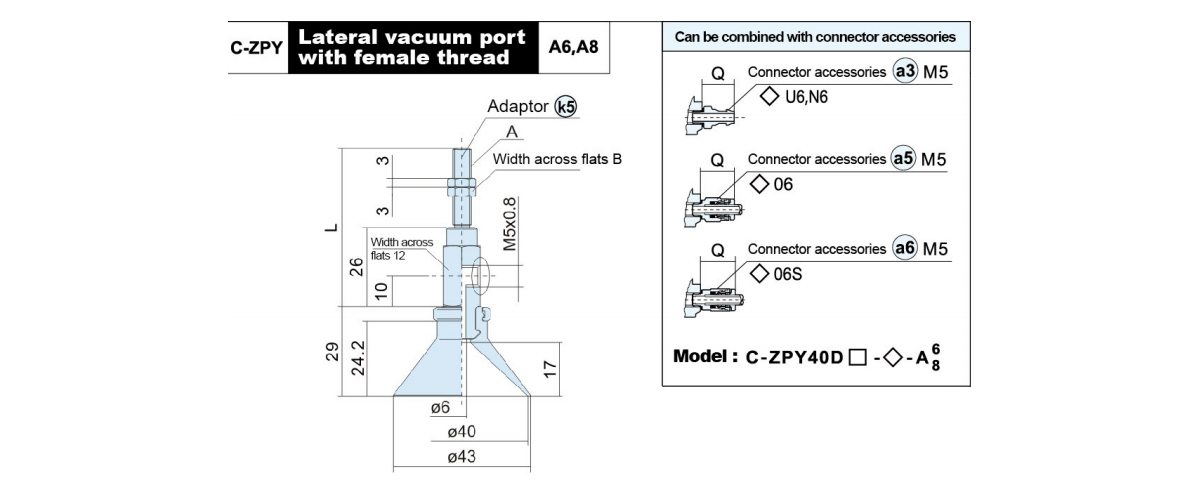

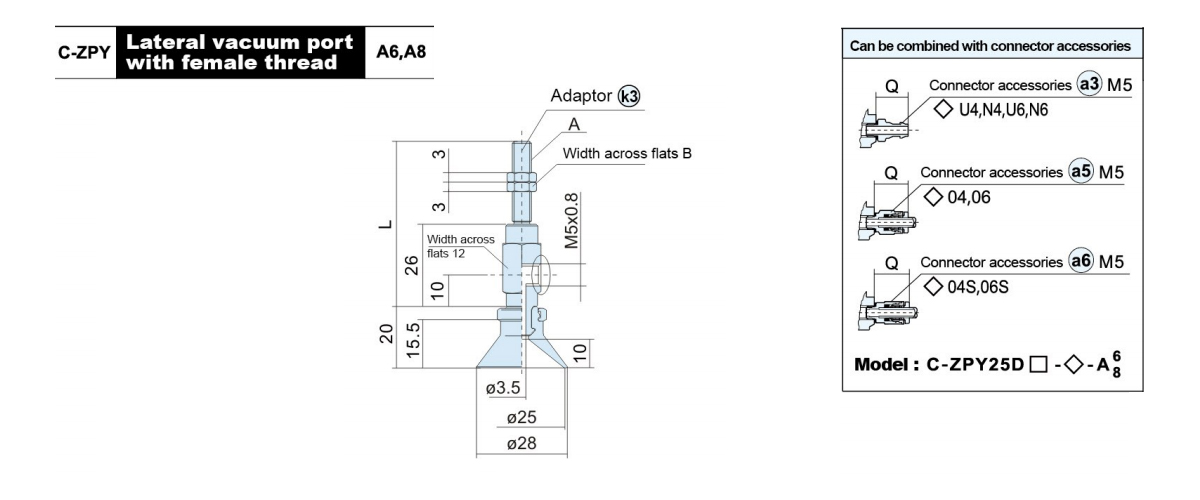

    Model A B L ○Pad diameter P Adaptor Model
    20 25 32

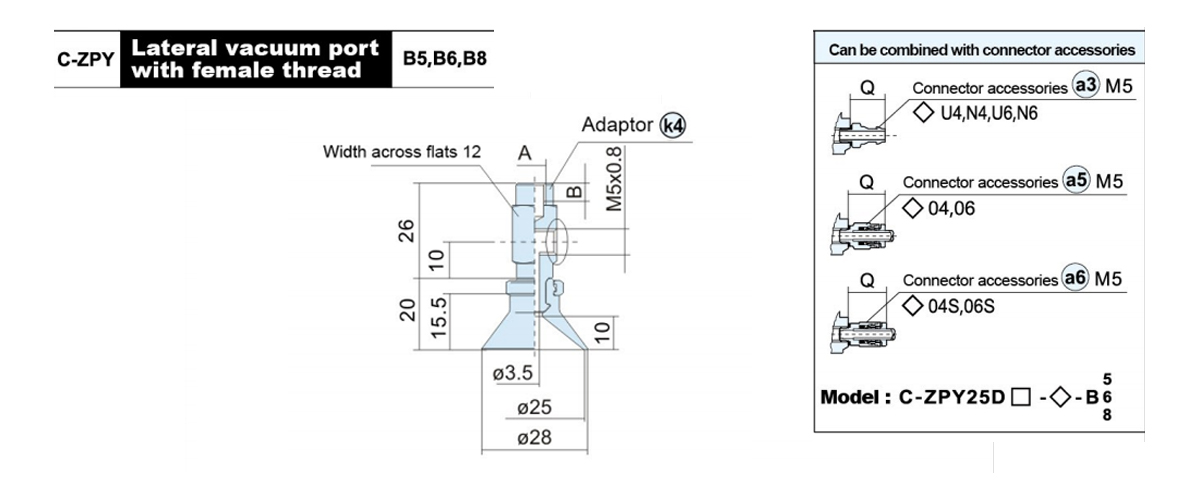

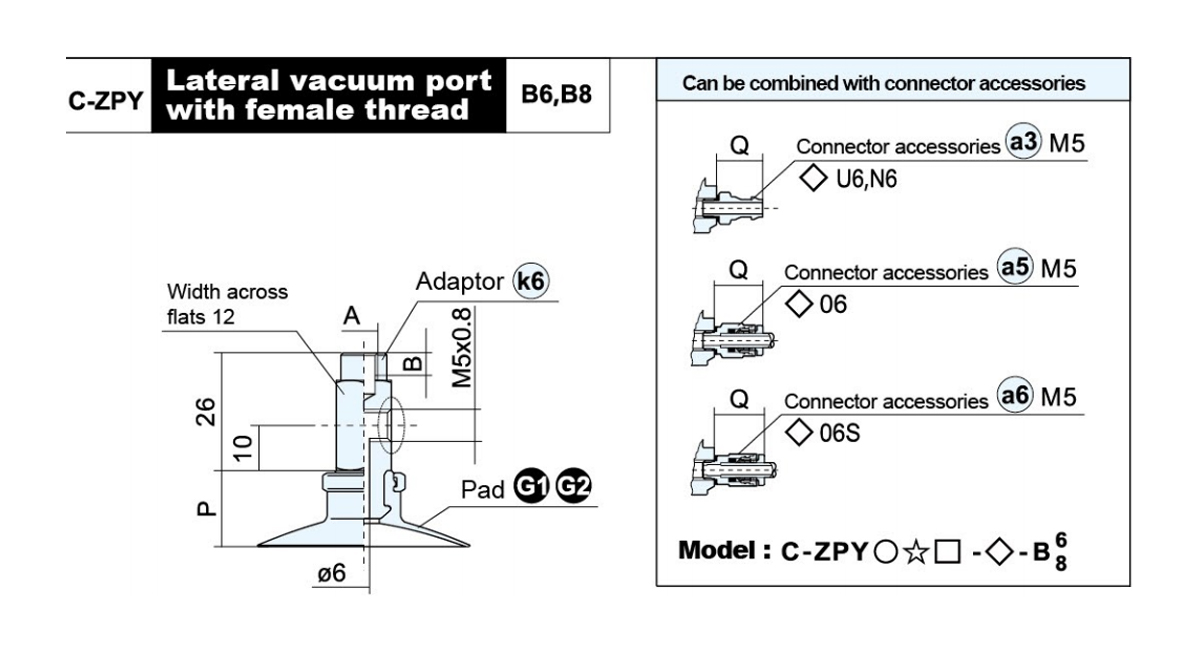

    C-ZPY○☆□-B5-A6 M6×1.0 8 54 14 14 14.5 ZPY3-B5-A6
    C-ZPY○☆□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

    Model A B ○Pad diameter P Adaptor Model
    20 25 32
    C-ZPY○☆□-B5-B5 M5×0.8 5 14 14 14.5 ZPY3-B5-B5
    C-ZPY○☆□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY○☆□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

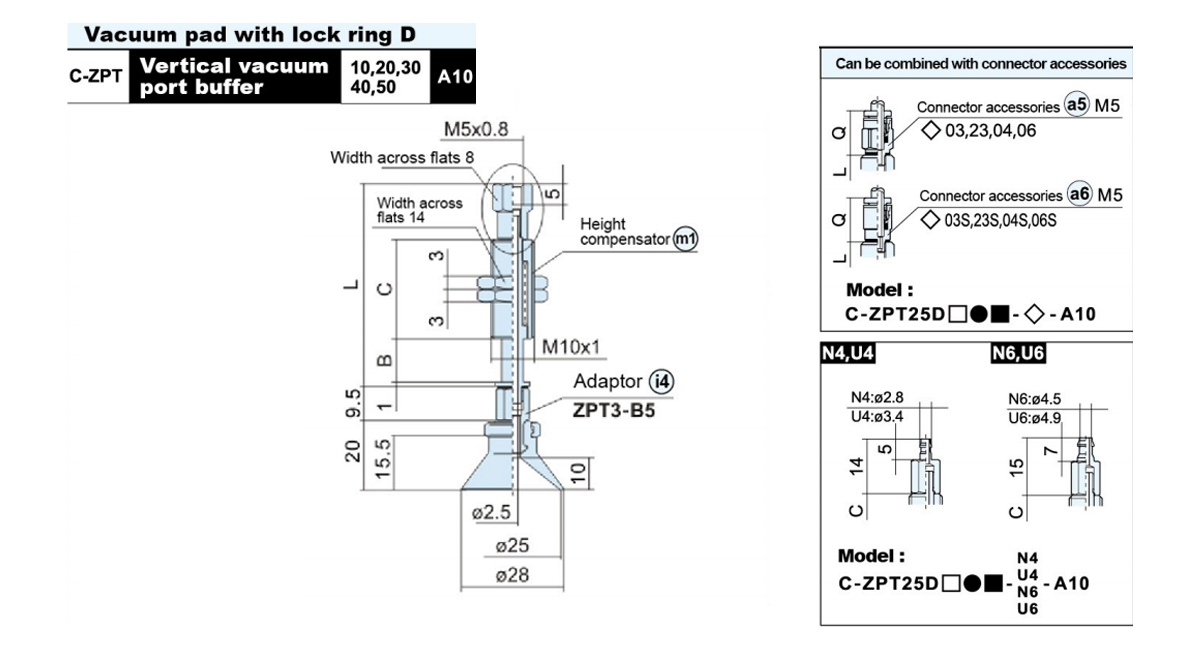

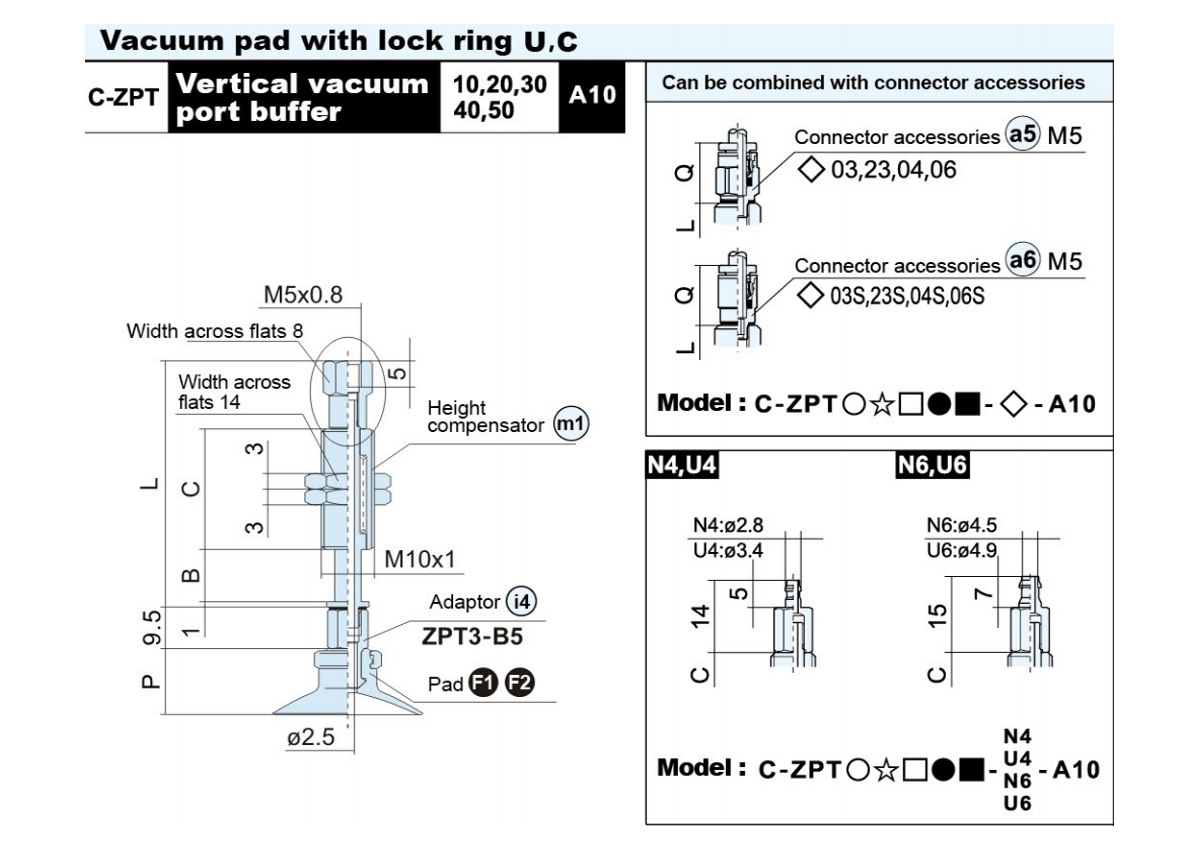

    Model B C L ○Pad Diameter P m1 i4
    Bumper Support Model
    20 25 32
    C-ZPT○☆□●10-B5-A10 10 23 47 14 14 14.5 ZPT3-●10-B5-A10
    C-ZPT○☆□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT○☆□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT○☆□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT○☆□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    ○Symbol of pad diameter:20,25,32 □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ●Height compensator type:Rotative(J)
    ■Buffer stroke(mm):10,20,30,40,50                           Unable to rotate(K)

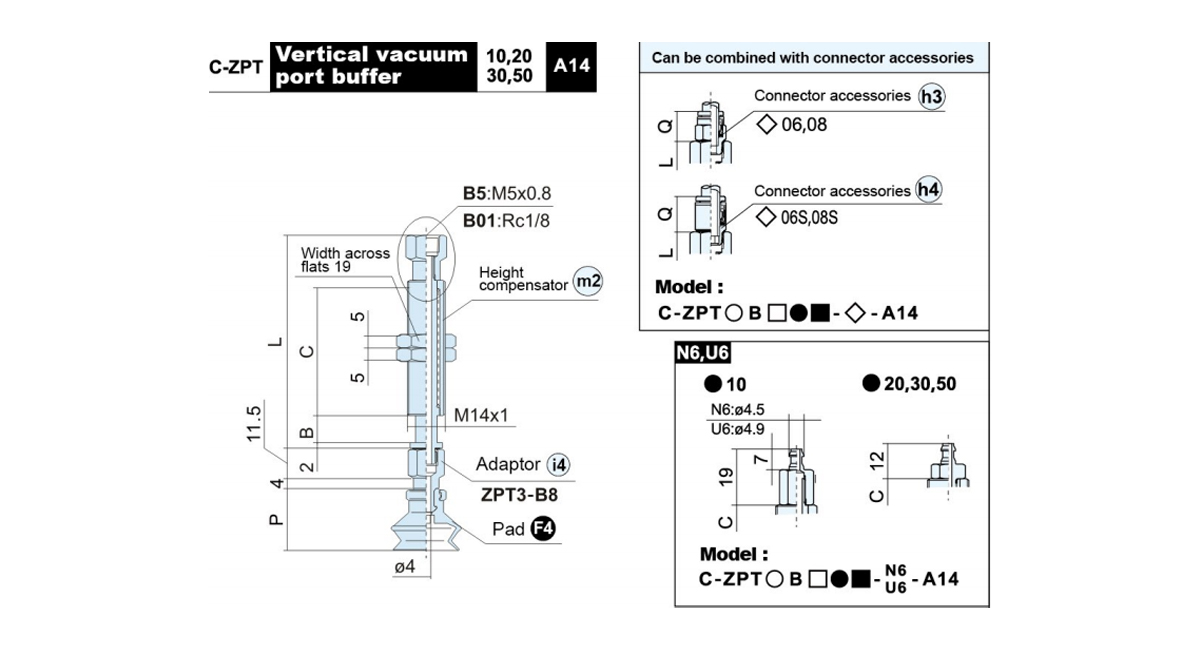

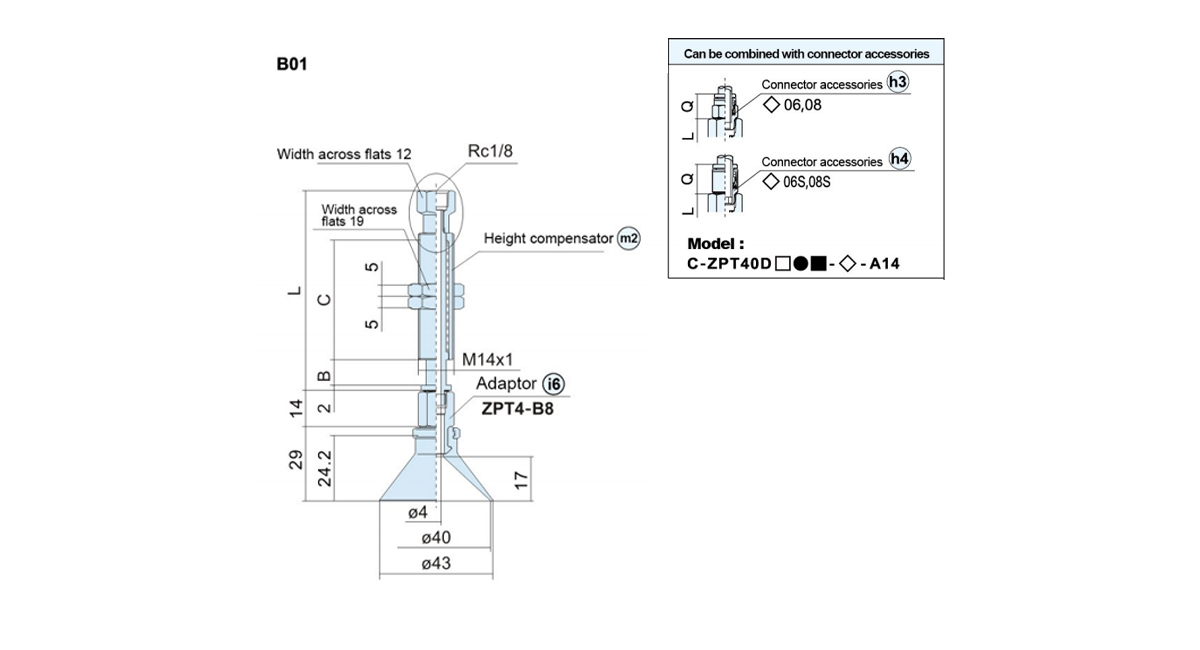

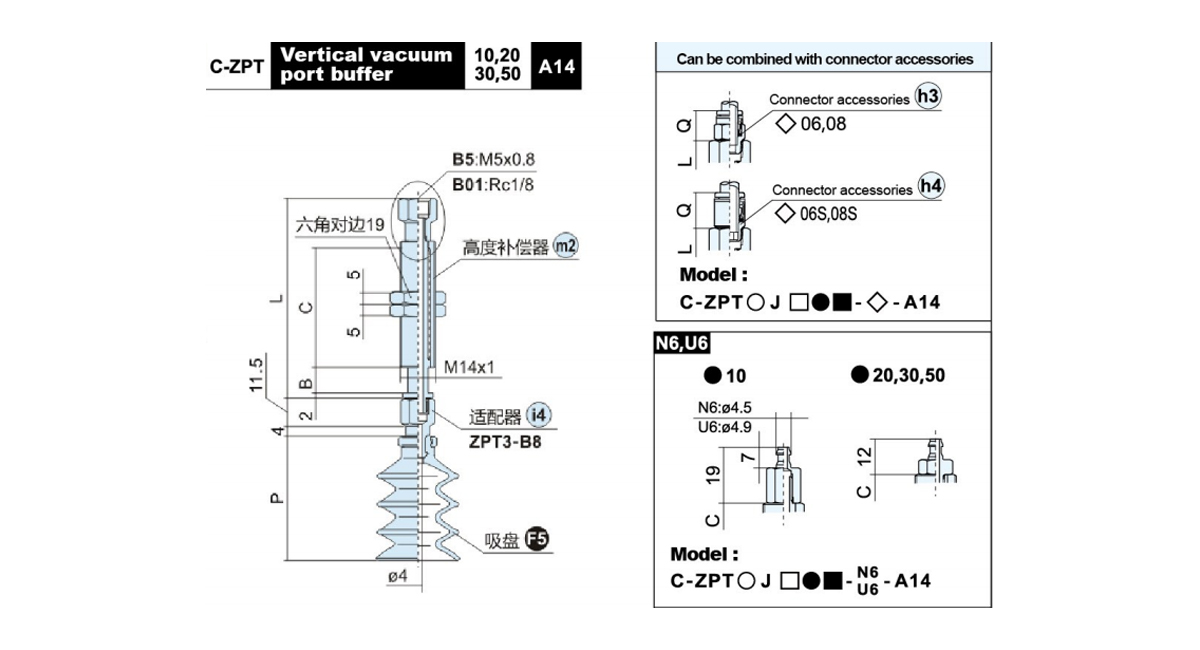

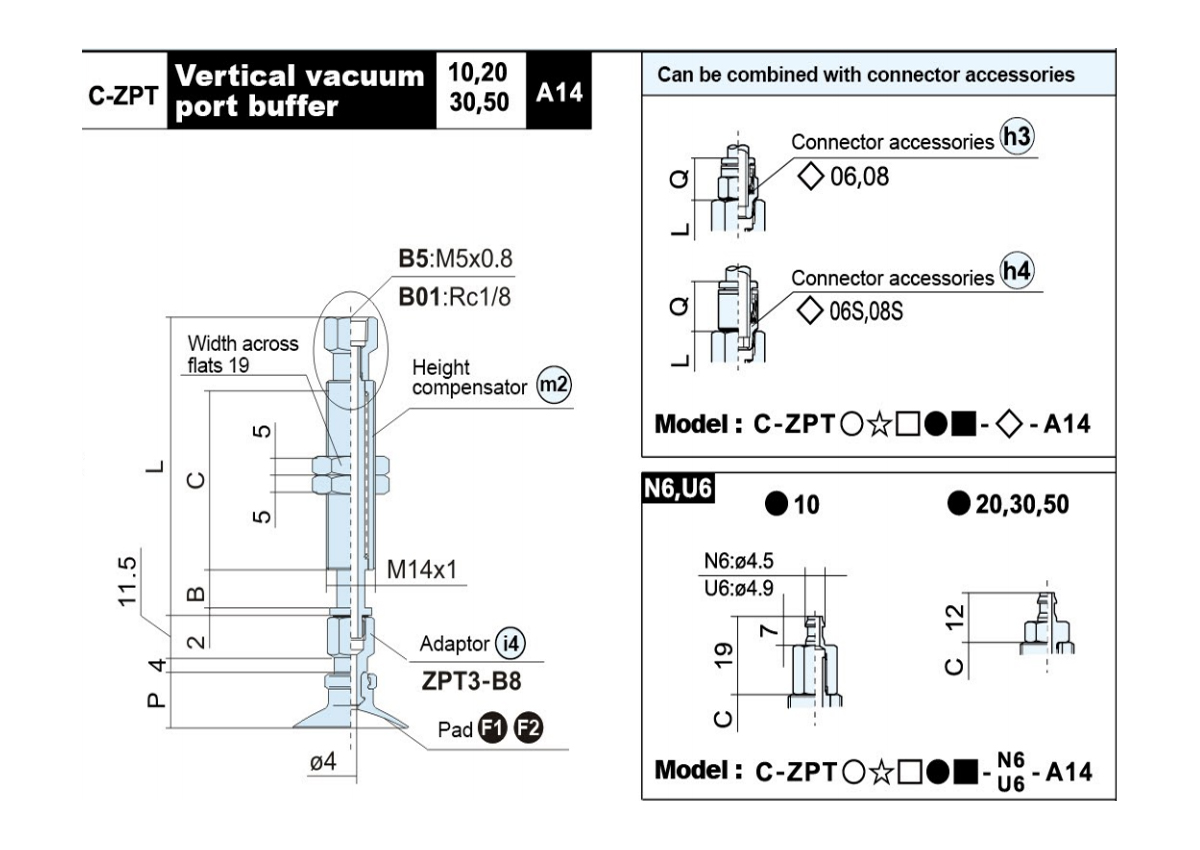

    Model B C L Pad
    U Diame
    Diameter     		P m2 i4
    Bumper Support Model
    20 25 32

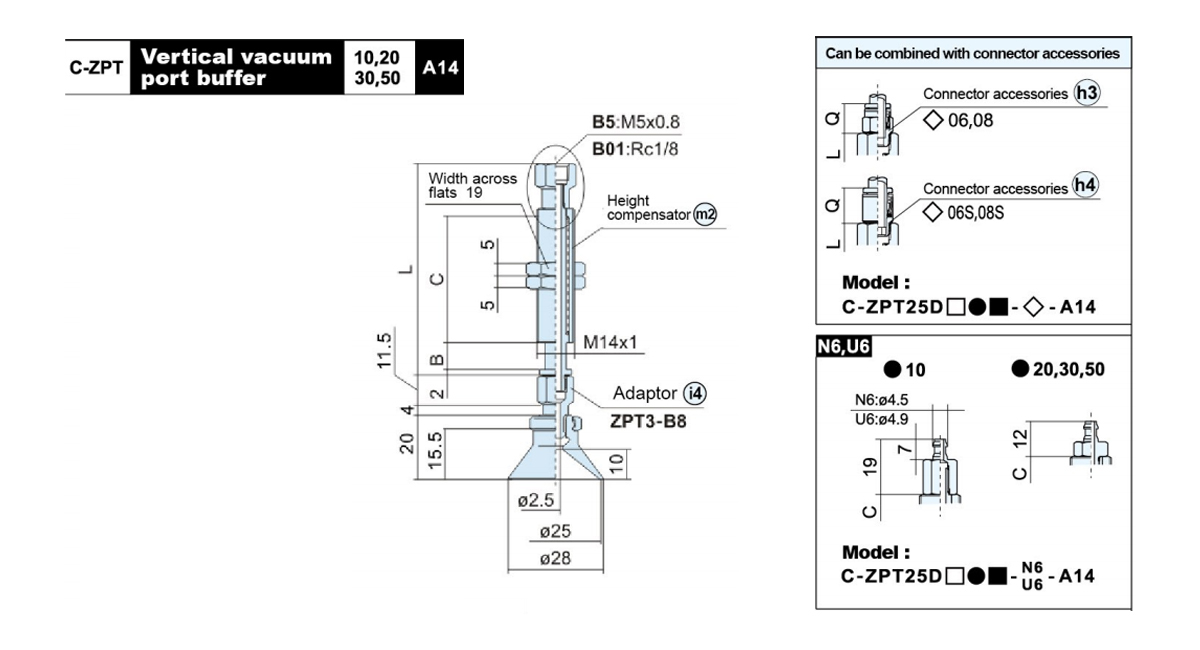

    C-ZPT○☆□●10-B5-A14 10 50 77 14 14 14.5 ZPT3-●10-B5-A14
    C-ZPT○☆□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT○☆□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT○☆□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14

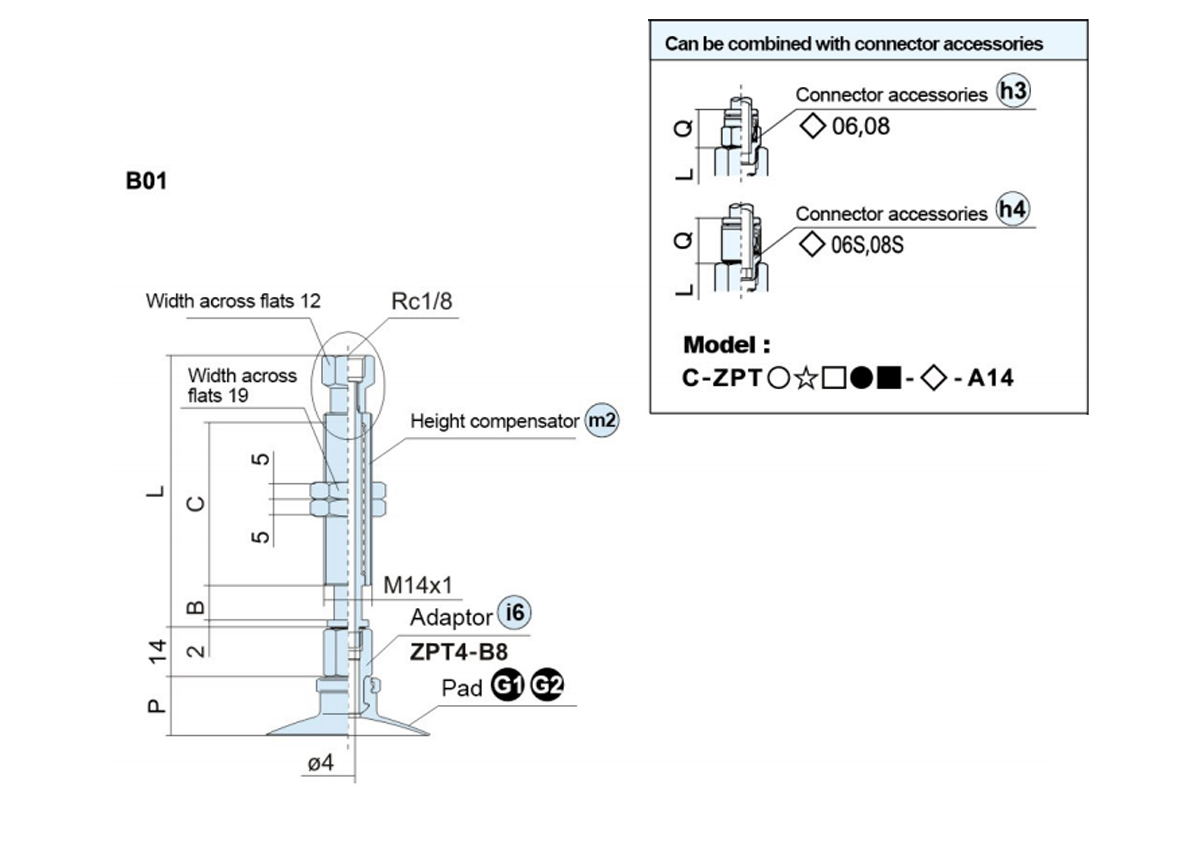

    C-ZPT○☆□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT○☆□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT○☆□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT○☆□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    ○Symbol  of  pad  diameter:20,25,32
    □Material:NBR(N),Silicone(S)
    ☆ Pad  type:Flat(U),with   ribs(C)
    ●   Height  compensator  type:Rotative(J)
    ■    Buffer   stroke(mm):10,20,30,50                                                         Unable to rotate(K)

    Model B C L ○Pad Diameter P m3 ④
    Bumper Support Model
    20 25 32

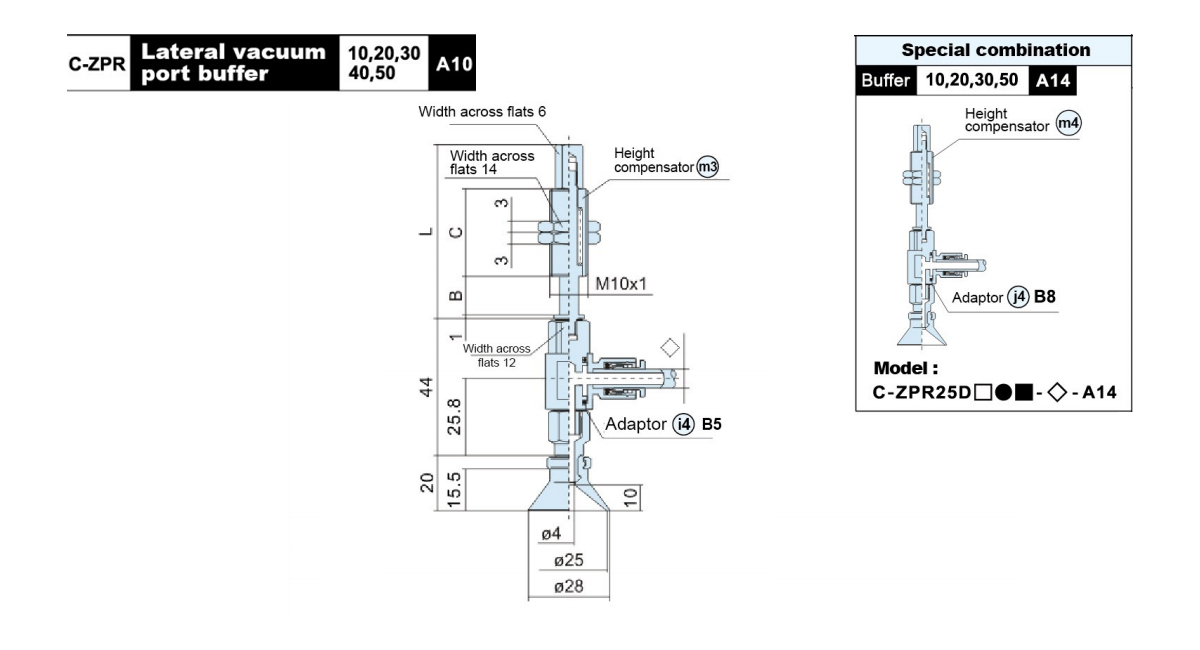

    C-ZPR○☆□●10-◇-A10 10 23 45 14 14 14.5 ZPR3-●10-◇-A10
    C-ZPR○☆□●20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR○☆口●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR○☆□●40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR○☆□●50-◇-A10 50 139 ZPR3-●50-◇-A10
    ○Symbol of pad diameter:20,25,32
    □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ● Height compensator type:Rotative(J)
    ◇Vacuum port connection:04,06,08
    Unable to rotate(K)

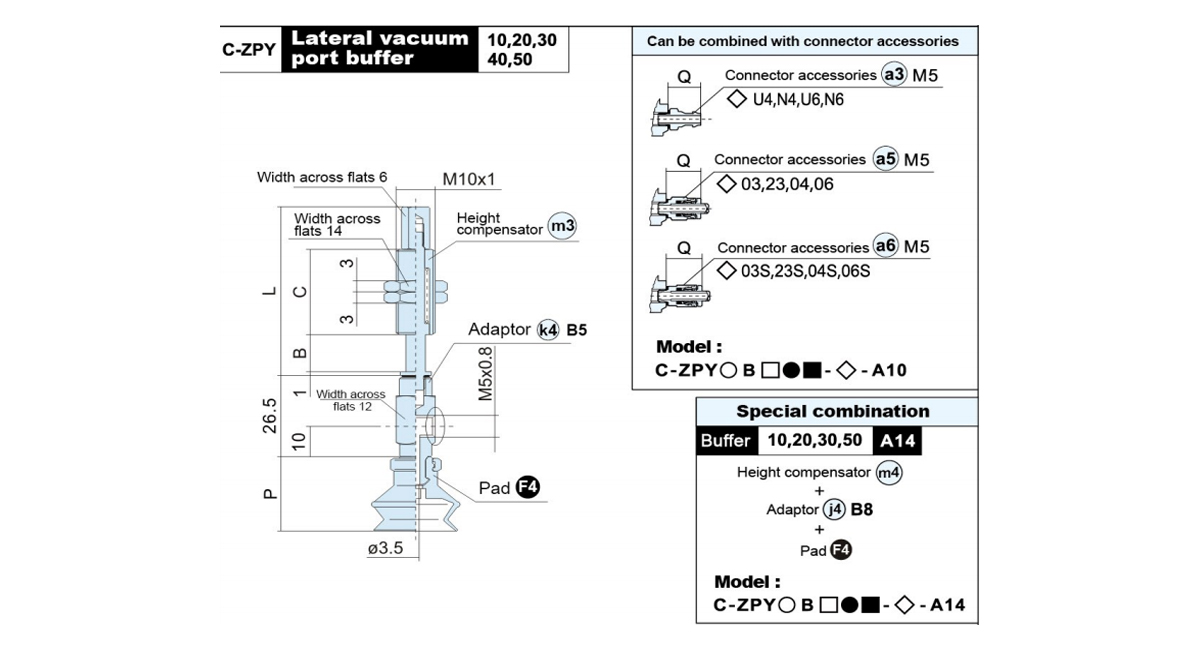

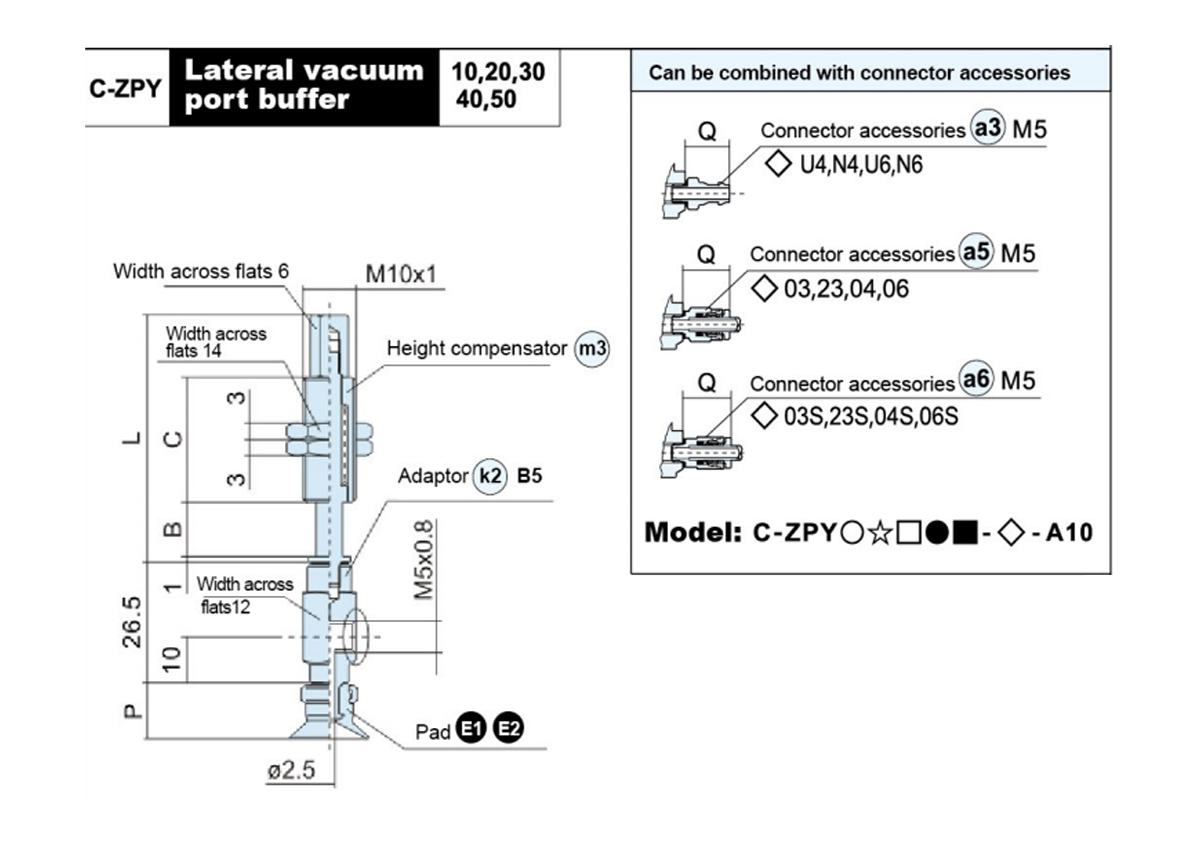

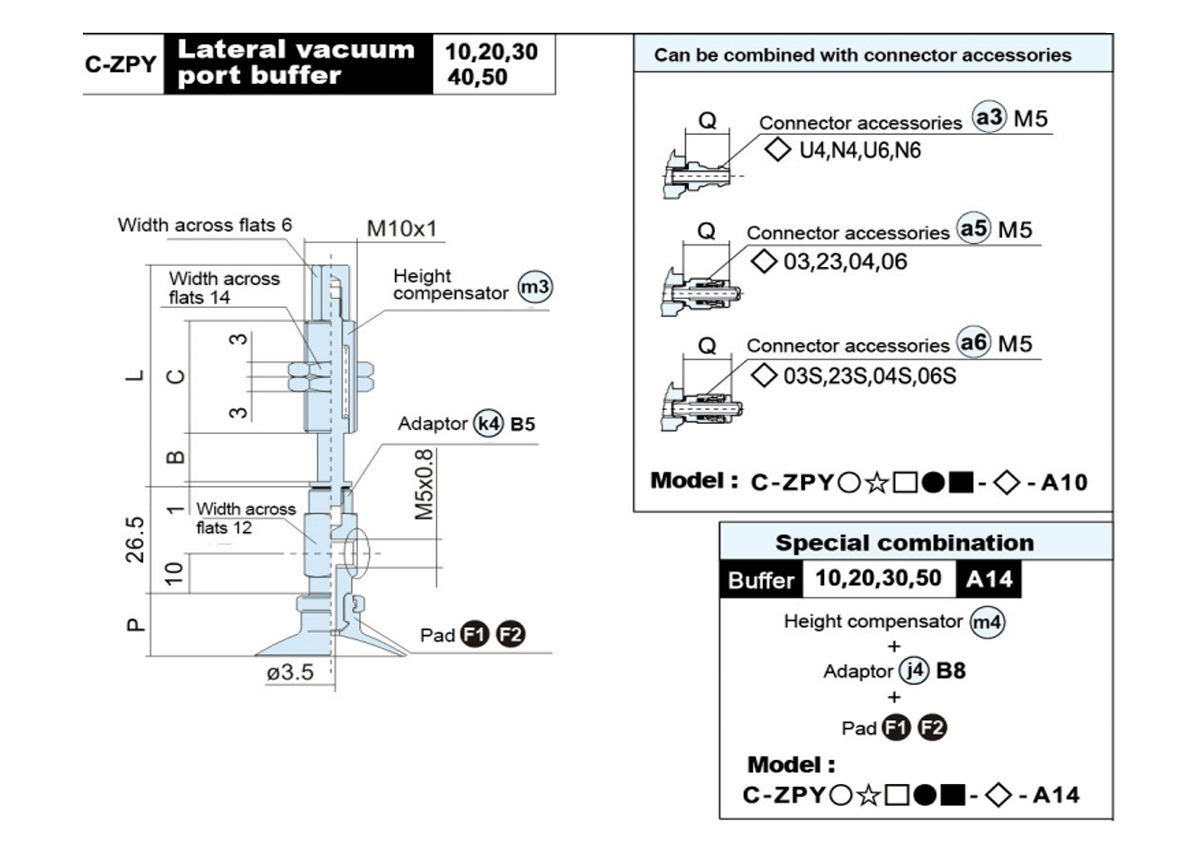

    Model B C L ○Pad Diameter P m3 k4
    Bumper Support Model
    20 25 32
    C-ZPY○☆□●10-B5-A10 10 23 45 14 14 14.5 ZPY3-●10-B5-A10
    C-ZPY○☆□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY○☆口●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY○☆□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY○☆□●50-B5-A10 50 139 ZPY3-●50-B5-A10
    ○Symbol of pad diameter:20,25,32
    □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ● Height compensator type:Rotative(J)
    ■Buffer stroke(mm):10,20,30,50
    Unable to rotate(K)

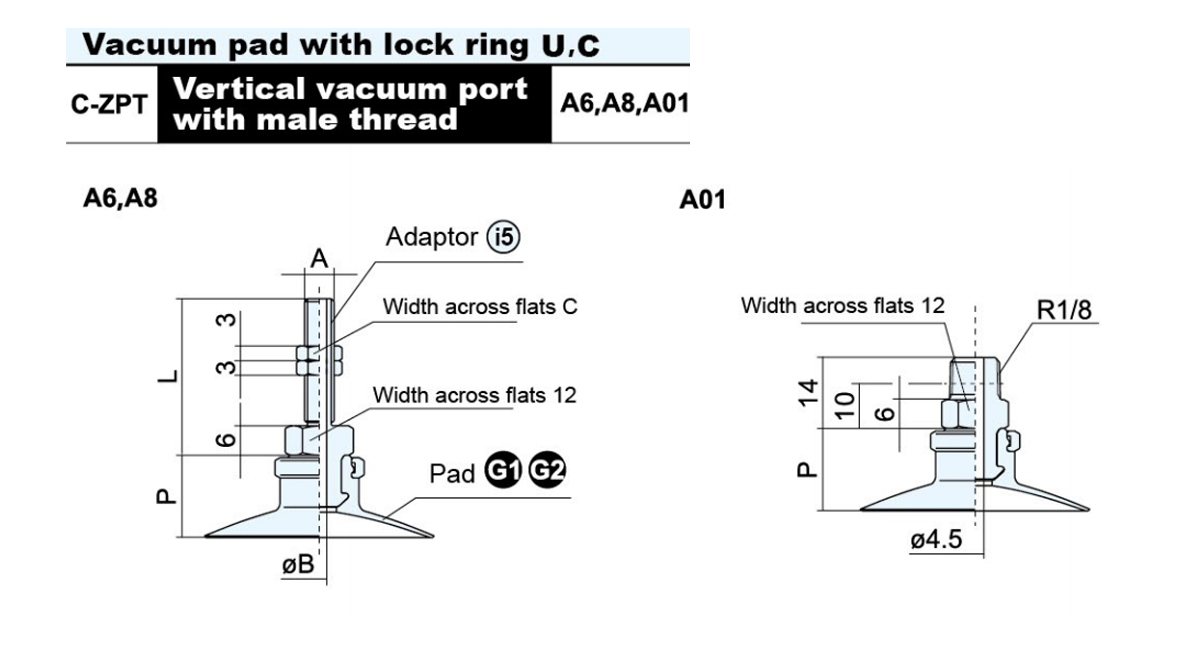

    Model A ØB C L ○Pad DiameterP Adaptor Model
    40 50
    C-ZPT○☆□-A6 M6×1.0 3.5 8 32 18.5 19.5 ZPT4-A6
    C-ZPT○☆□-A8 M8×1.0 4.5 12 22 ZPT4-A8
    C-ZPT○☆□-A01 - ZPT4-A01
    ○Symbol of pad diameter:40,50     ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

    Model A B oC ○Pad Diameter P Adaptor Model
    40 50
    C-ZPT○☆□-B6 M6×1.0 6 4.5 18.5 19.5 ZPT4-B6
    C-ZPT○☆□-B8 M8×1.25 8 6.8 ZPT4-B8
    C-ZPT○☆□-B01 Rc1/8 6.2 ZPT4-B01
    ○Symbol of pad diameter:40,50    ☆ Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

    Model A E L ○Pad Diameter P Adaptor Model
    40 50
    C-ZPR○☆□-◇-A6 M6×1.0 8 68 18.5 19.5 ZPR4-◇-A6
    C-ZPR○☆□-◇-A8 M8×1.0 12 58 ZPR4-◇-A8
    ○Symbol of pad diameter:40,50
    □Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:06,08

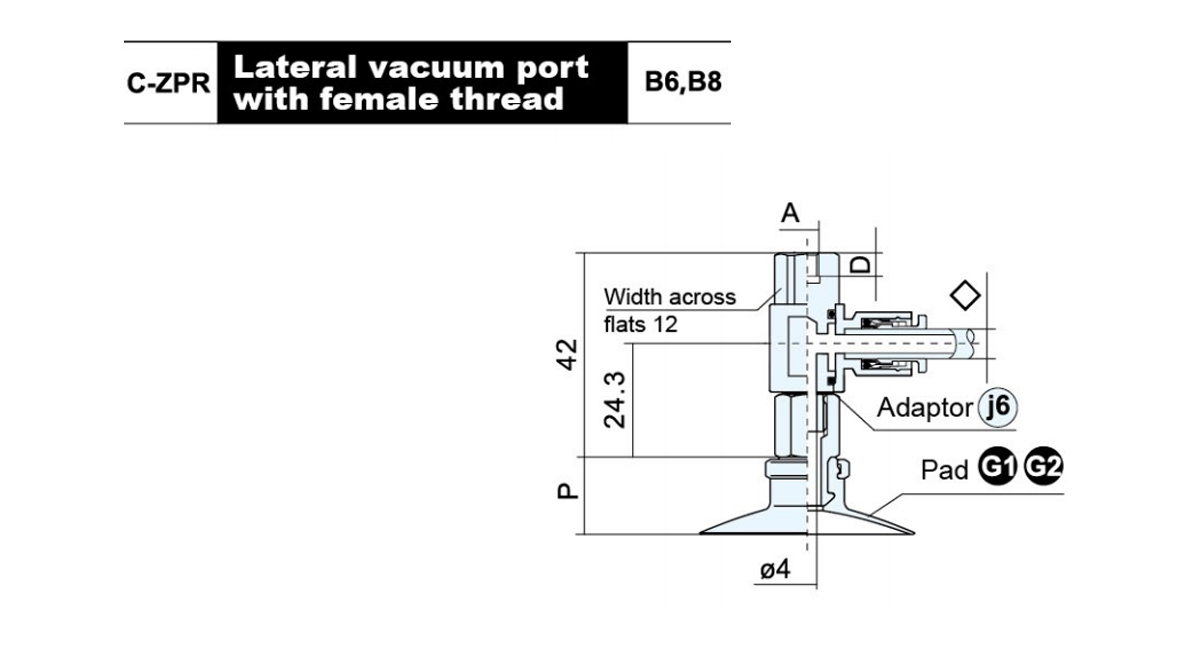

    Model A D ○Pad Diameter P Adaptor Model
    40 50
    C-ZPR○☆口 - ◇ -B6 M6×1.0 6 18.5 19.5 ZPR4-◇-B6
    C-ZPR○☆□-◇-B8 M8×1.25 8 ZPR4-◇-B8
    ○Symbol of pad diameter:40,50
    □Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:06,08

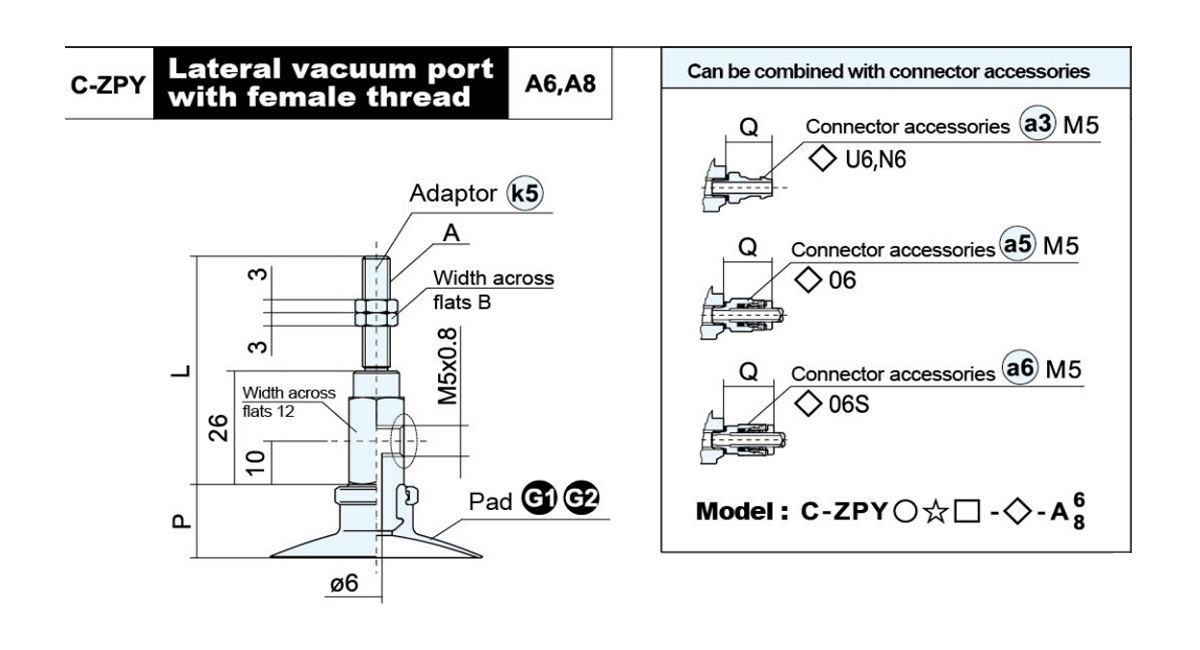

    Model A B L ○Pad DiameterP Adaptor Model
    40 50
    C-ZPY○☆□-B5-A6 M6×1.0 8 54 18.5 19.5 ZPY4-B5-A6
    C-ZPY○☆□-B5-A8 M8×1.0 12 44 ZPY4-B5-A8
    ○Symbol of pad diameter:40,50    ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor Model
    40 50
    C-ZPY○☆□-B5-B6 M6×1.0 6 18.5 19.5 ZPY3-B5-B6
    C-ZPY○☆□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○Symbol of pad diameter:40,50   ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

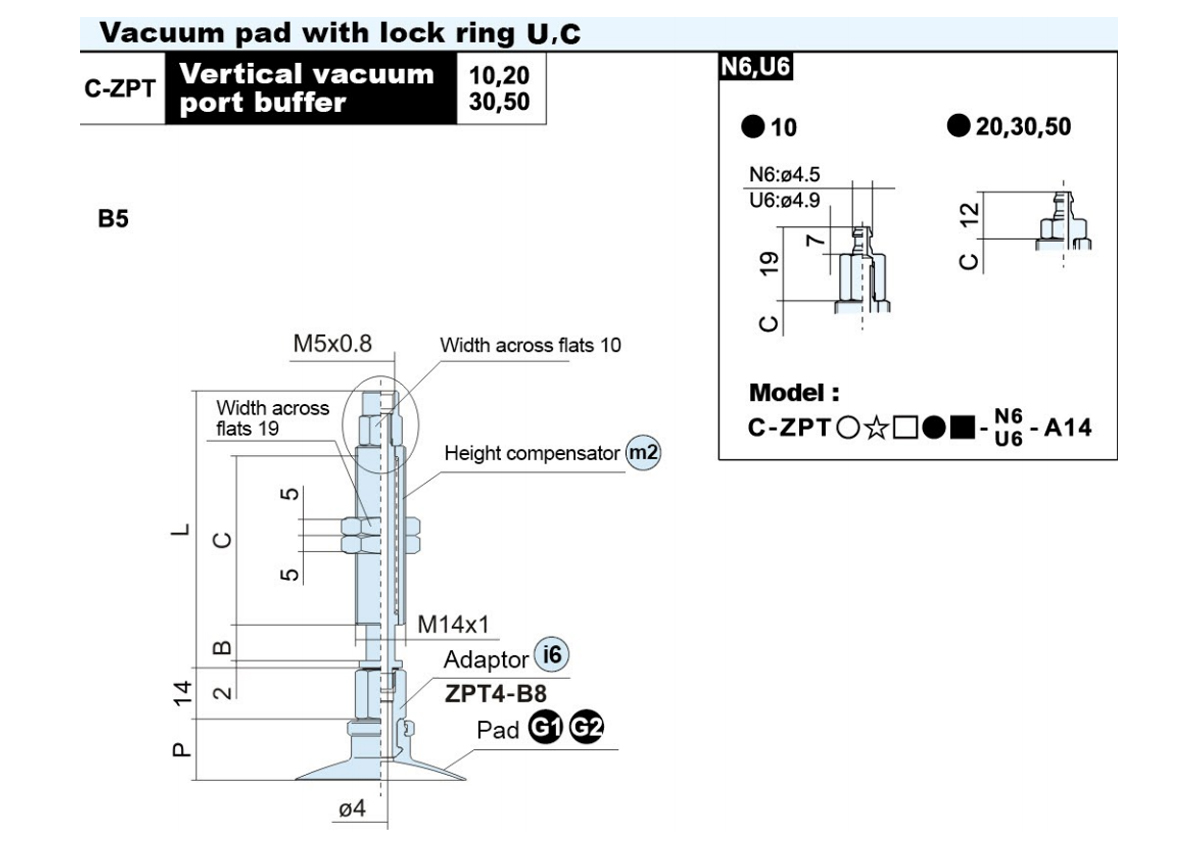

    Model B C L ○Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○☆□●10-B5-A14 10 50 77 18.5 19.5 ZPT4-●10-B5-A14
    C-ZPT○☆□●20-B5-A14 20 81 ZPT4-●20-B5-A14
    C-ZPT○☆□●30-B5-A14 30 91 ZPT4-●30-B5-A14
    C-ZPT○☆□●50-B5-A14 50 75 136 ZPT4-●50-B5-A14
    ○Symbol of pad diameter:40,50
    ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J),Unable to rotate(K)   ■Buffer stroke(mm):10,20,30,50

    Model B C L ○Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○☆□●10-B01-A14 10 50 78.5 18.5 19.5 ZPT4-●10-B01-A14
    C-ZPT○☆□●20-B01-A14 20 84 ZPT4-●20-B01-A14
    C-ZPT○☆□●30-B01-A14 30 94 ZPT4-●30-B01-A14
    C-ZPT○☆□●50-B01-A14 50 75 139 ZPT4-●50-B01-A14
    ○Symbol of pad diameter:40,50
    ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J),Unable to rotate(K)   ■Buffer stroke(mm):10,20,30,50

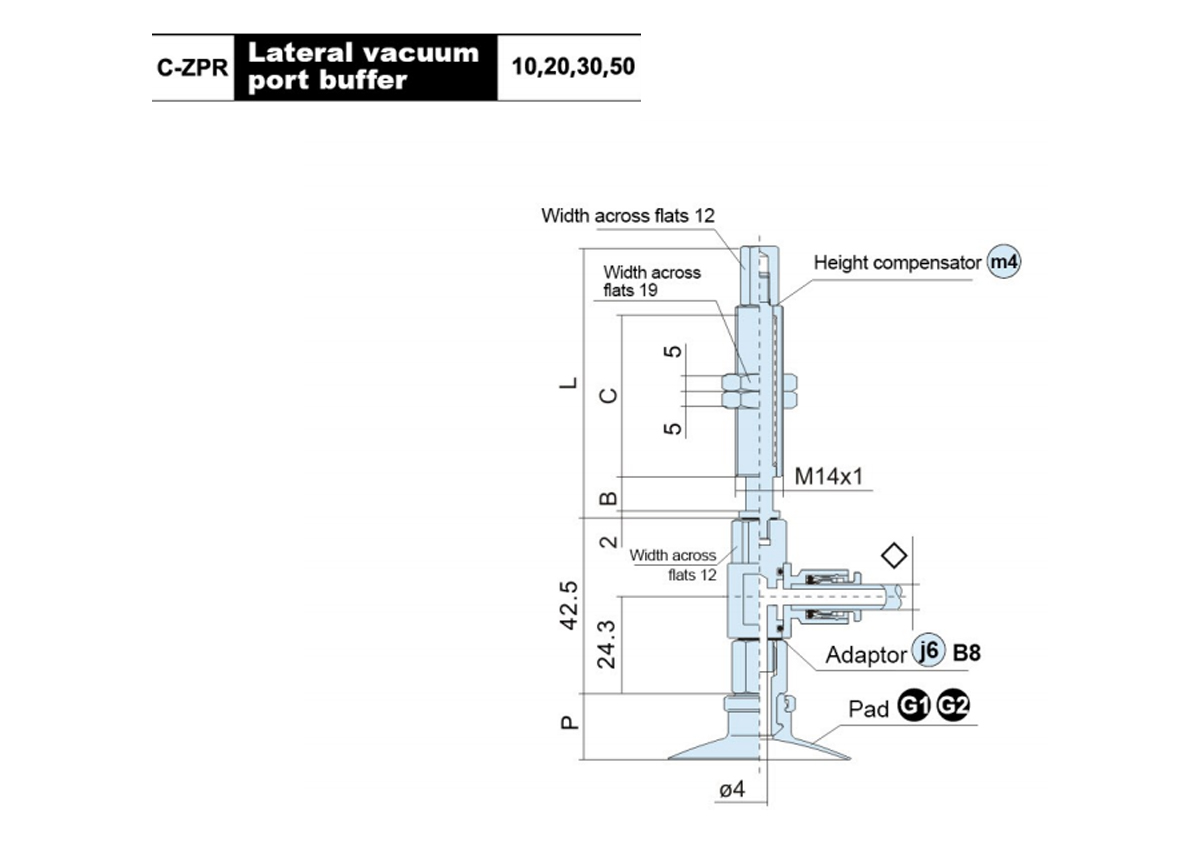

    Model B C L ○Pad Diameter P m4 j6
    Bumper Support Model
    40 50
    C-ZPR○☆□●10-◇-A14 10 50 80 18.5 19.5 ZPR4-●10-◇-A14
    C-ZPR○☆□●20-◇-A14 20 77 ZPR4-●20-◇-A14
    C-ZPR○☆□●30-◇-A14 30 87 ZPR4-●30-◇-A14
    C-ZPR○☆□●50-◇-A14 50 75 132 ZPR4-●50-◇-A14
    ○ Symbol of pad diameter:40,50
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J)
    ◇Vacuum port connection:06,08
    Unable to rotate(K)

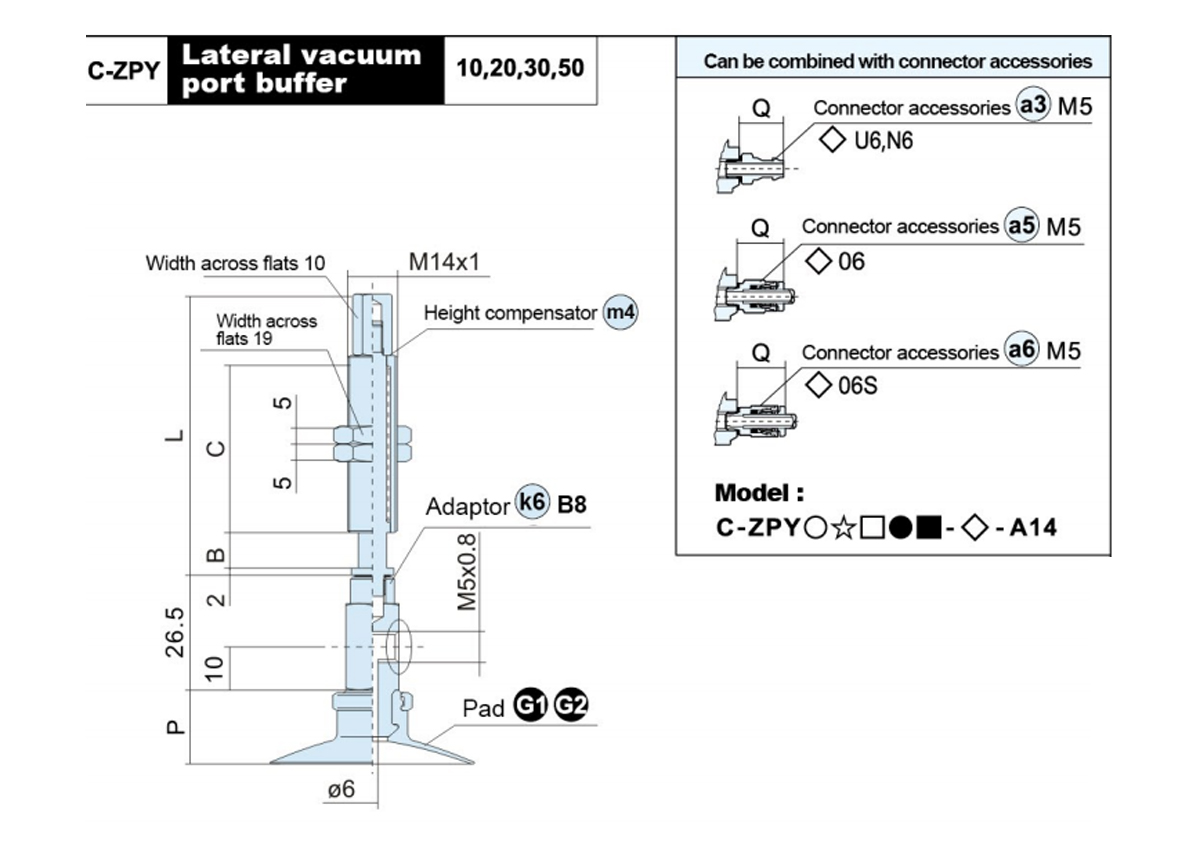

    Model B C L ○Pad Diameter P m4 k6
    Bumper Support Model
    40 50
    C-ZPY○☆□●10-◇-A14 10 50 80 18.5 19.5 ZPY4-●10-◇-A14
    C-ZPY○☆口●20-◇-A14 20 77 ZPY4-●20-◇-A14
    C-ZPY○☆□●30-◇-A14 30 87 ZPY4-●30-◇-A14
    C-ZPY○☆□●50-◇-A14 50 75 132 ZPY4-●50-◇-A14
    ○Symbol of pad diameter:40,50
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model A B C L ○Pad diameter P Adaptor Model
    10 16
    C-ZPT○D□-A5 M5×0.8 7 4 26 15 16 ZPT2-A5
    C-ZPT○D□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○D□-A01 - - ZPT2-A01
    ○Symbol of pad diameter:10,16 □Material:NBR(N),Silicone(S)

    Model A B ○Pad diameter  P Adaptor Model
    10 16
    C-ZPT○D□-B5 M5×0.8 5 15 16 ZPT2-B5
    C-ZPT○D□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○D□-B01 - - ZPT2-B01
    ○Symbol of pad diameter:10,16 □Material:NBR(N),Silicone(S)

    Model A D E L ○Pad Diameter P Adaptor Model
    10 16
    C-ZPR○D□-◇-A5 M5×0.8 4 7 55 15 16 ZPR2-◇-A5
    C-ZPR○D□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○Symbo of pad diameter:10,16   □Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A D ○Pad Diameter P Adaptor Model
    10 16
    C-ZPR○D□-◇-B5 M5×0.8 5 15 16 ZPR2-◇-B5
    C-ZPR○D□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○Symbol of pad diameter:10,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A B C L ○Pad Diameter P Adaptor Model
    10 16
    C-ZPY○D□-B5-A5 M5×0.8 7 4 47 15 16 ZPY2-B5-A5
    C-ZPY○D□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○Symbol of pad diameter:10,16   □Material:NBR(N),Silicone(S)

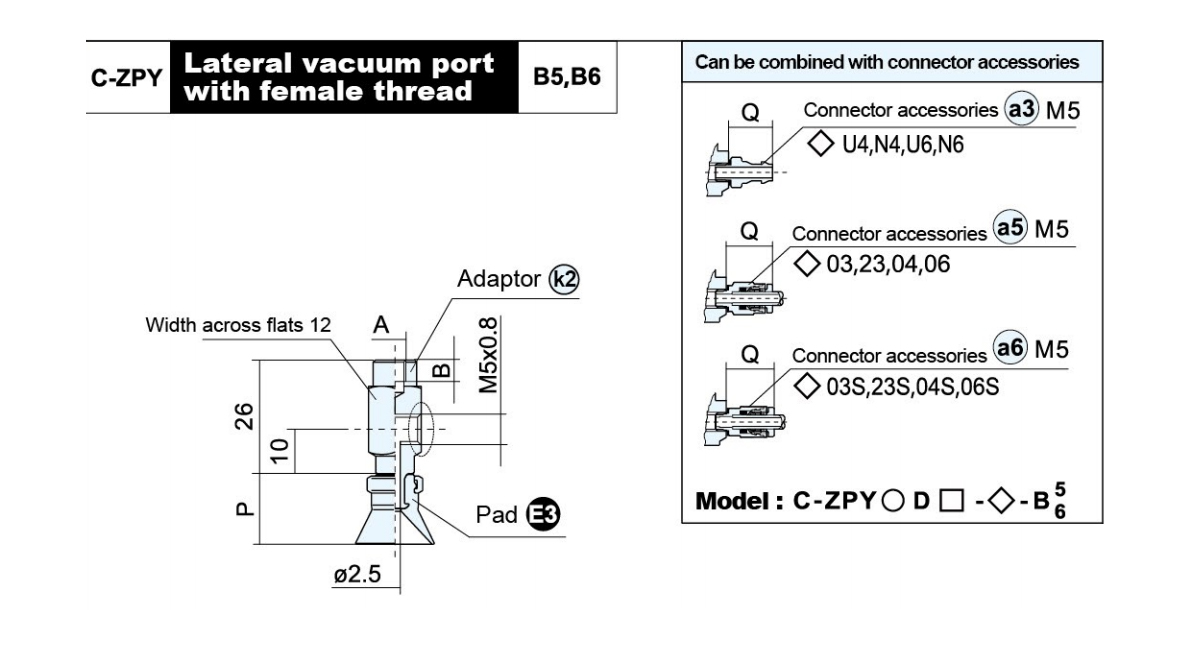

    Model A B ○Pad Diameter P Adaptor Model
    10 16
    C-ZPY○D□-B5-B5 M5×0.8 5 15 16 ZPY2-B5-B5
    C-ZPY○D□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○Symbol of pad diameter:10,16   □Material:NBR(N),Silicone(S)

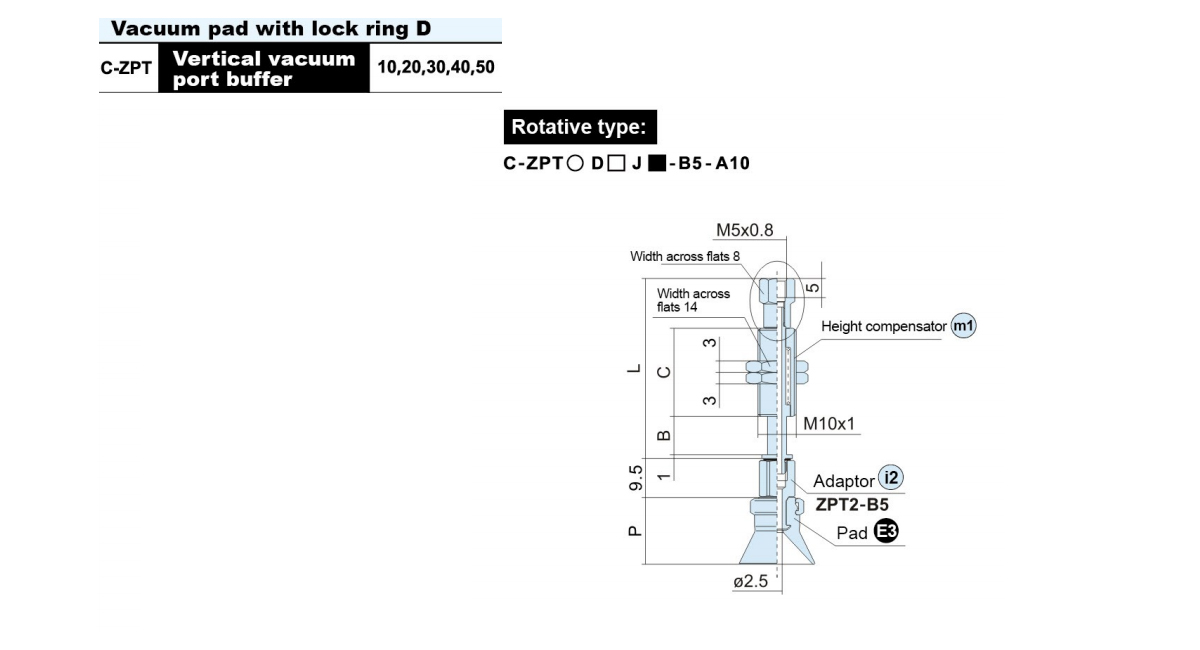

    Model B C L ○Pad Diameter P P m1 i2
    Bumper Support Model
    10 16
    C-ZPT○D□J10-B5-A10 10 23 47 15 16 ZPT2-J10-B5-A10
    C-ZPT○D□J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○D□J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○D□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○D□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○Symbol of pad diameter:10,16
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P m1 i2
    Bumper Support Model
    10 16
    C-ZPT○D□K10-B5-A10 10 23 47 15 16 ZPT2-K10-B5-A10
    C-ZPT○D□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○D□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○D□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○D□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○Symbol of pad diameter:10,16
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J),Unable to rotate(K)

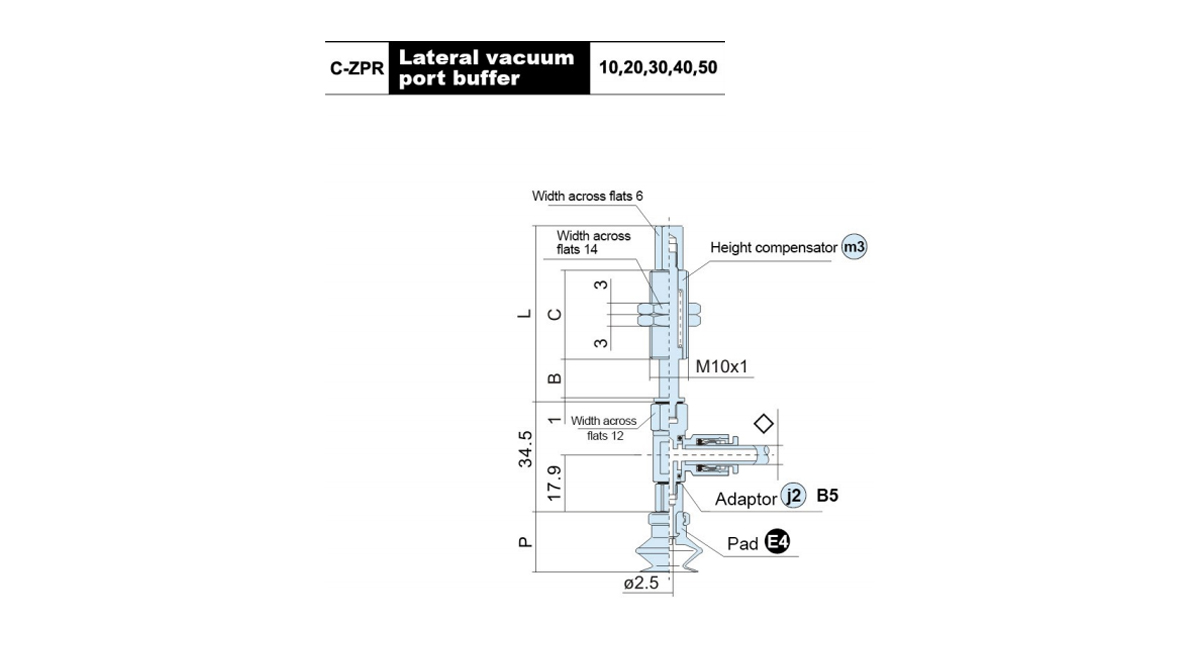

    Model B C L ○Pad Diameter P m3 j2
    Bumper Support Model
    10 16
    C-ZPR○D□●10-◇-A10 10 23 45 15 16 ZPR2-●10-◇-A10
    C-ZPR○D□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○D□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○D□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○D□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○ Symbol of pad diameter:10,16
    ◇Vacuum port connection:04,06
    □    Material:NBR(N),Silicone(S)
    ●  Height compensator type:Rotative(J)
    Unable to rotate(K)

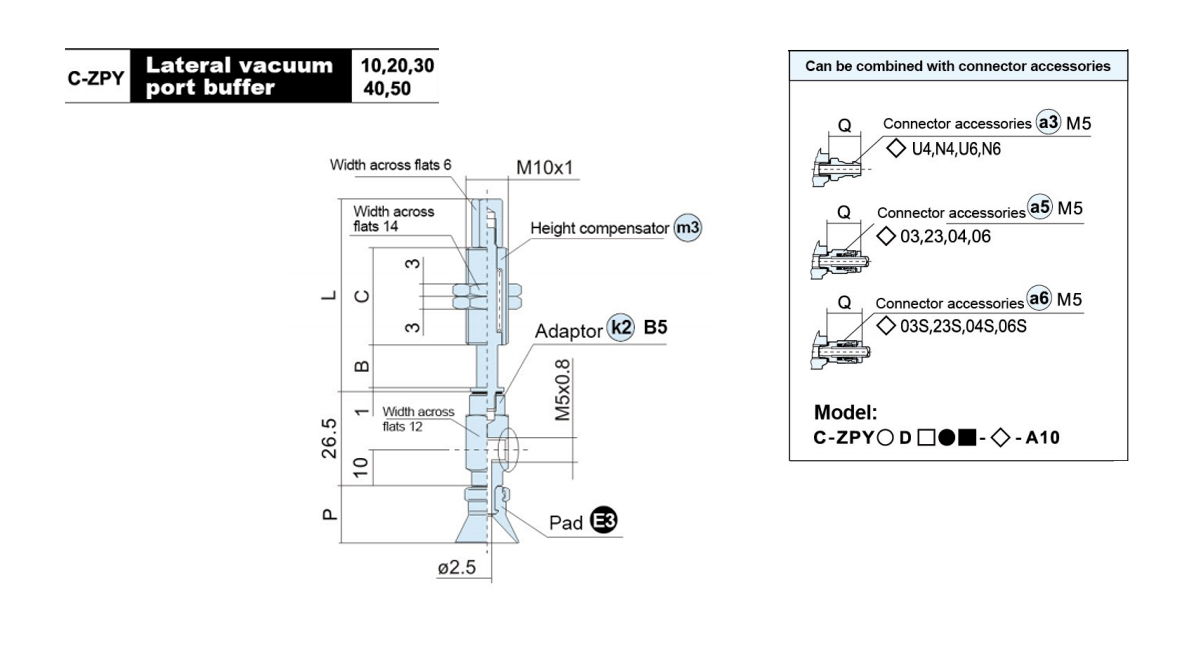

    Model B C L ○Pad Diameter P m3 j2
    Bumper Support Model
    10 16
    C-ZPY○D□●10-B5-A10 10 23 45 15 16 ZPY2-●10-B5-A10
    C-ZPY○D□●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○D□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○D□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○D□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○ Symbol of pad diameter:10,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J)
    Unable to rotate(K)

    Model A B C D L Adaptor
    Model
    C-ZPT25D□-A6 M6×1.0 5 8 8 31 ZPT3-A6
    C-ZPT25D□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT25D□-A01 - - - - - ZPT3-A01
    □Material:NBR(N),Silicone(S)

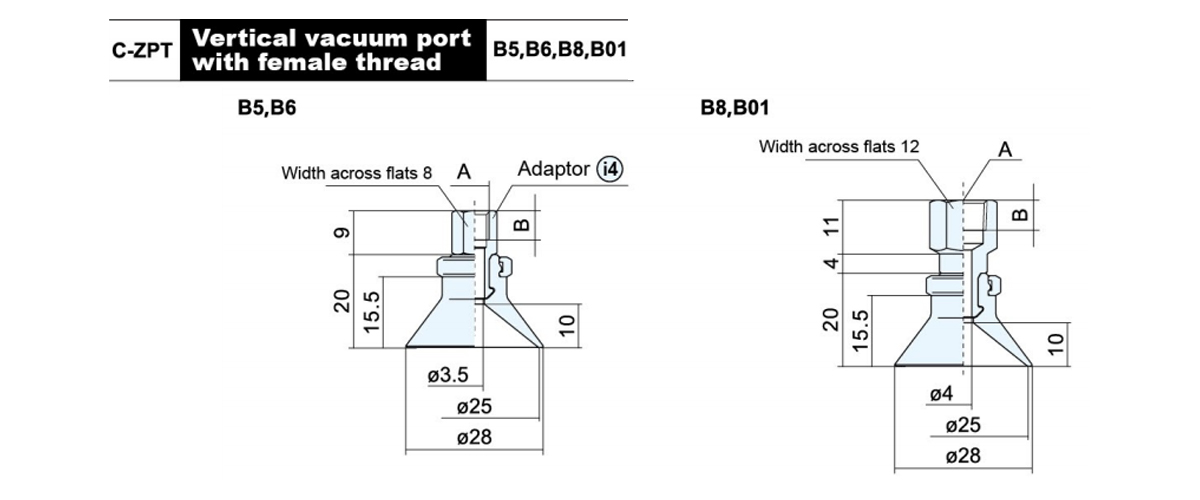

    Model A B Adaptor
    Model
    C-ZPT25D□-B5 M5×0.8 5 ZPT3-B5
    C-ZPT25D□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT25D□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT25D□-B01 Rc1/8 6.2 ZPT3-B01
    □ Material:NBR(N),Silicone(S)

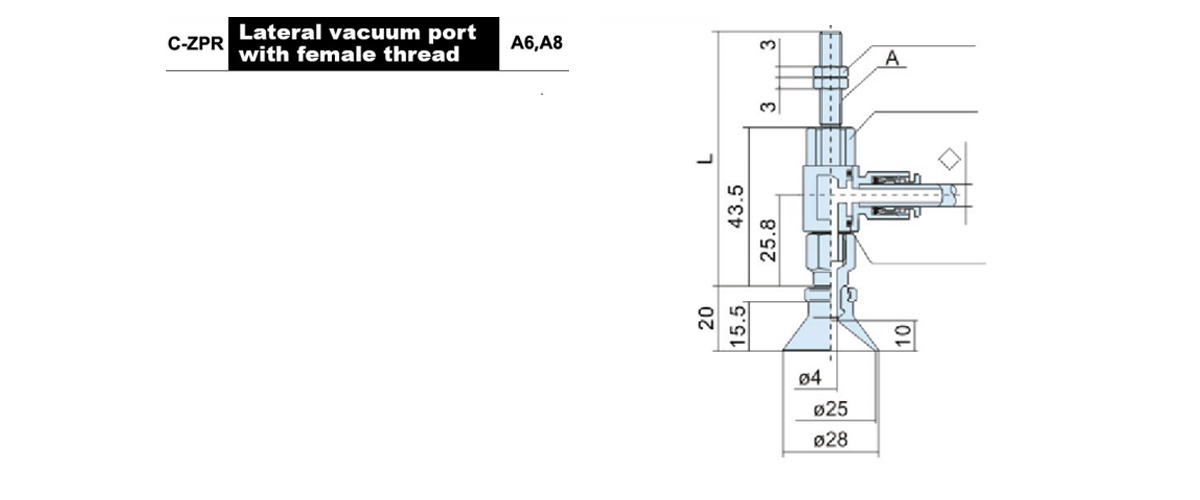

    Model A E L Adaptor
    Model
    C-ZPR25D□-◇ -A6 M6×1.0 8 69.5 ZPR3-◇-A6
    C-ZPR25D□-◇ -A8 M8×1.0 12 59.5 ZPR3-◇-A8
    □Material:NBR(N),Silicone(S)◇Vacuum port connection:04,06,08

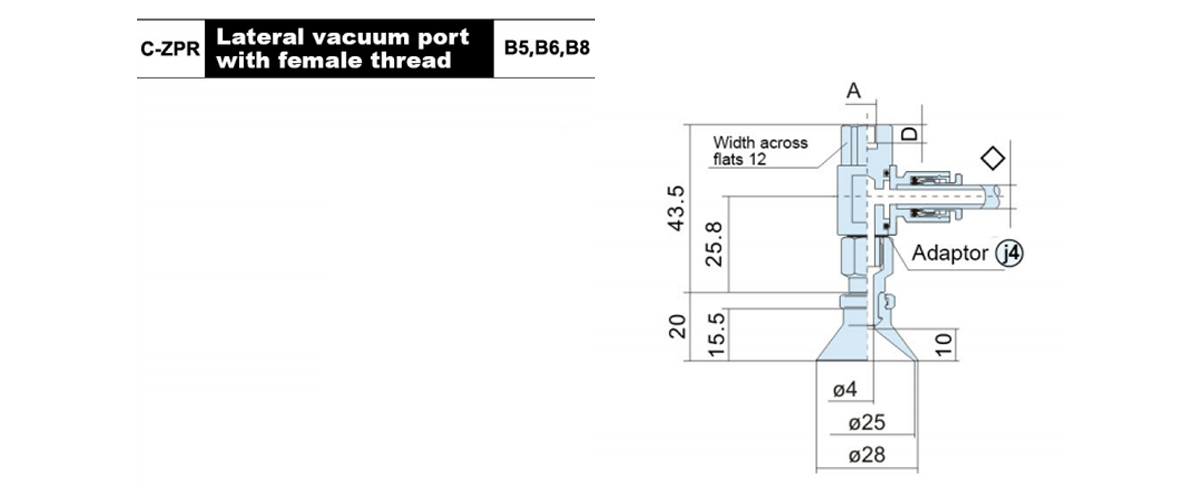

    Model A D Adaptor
    Model
    C-ZPR25D□-◇-B5 M5×0.8 5 ZPR3-◇-B5
    C-ZPR25D□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR25D□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    □Material:NBR(N),Silicone(S)◇Vacuum port connection:0406,08

    Model A B L Adaptor
    Model
    C-ZPY25D□-B5-A6 M6×1.0 8 54 ZPY3-B5-A6
    C-ZPY25D□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    □Material:NBR(N),Silicone(S)

    Model A B Adaptor
    Model
    C-ZPY25D□-B5-B5 M5×0.8 5 ZPY3-B5-B5
    C-ZPY25D□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY25D□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    □ Material:NBR(N),Silicone(S)

    Model B C L m1 i4
    Bumper Support Model
    C-ZPT25D□●10-B5-A10 10 23 47 ZPT3-●10-B5-A10
    C-ZPT25D□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT25D□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT25D□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT25D□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    □Material:NBR(N),Silicone(S)
    ■Buffer  stroke(mm):10,20,30,40,50
    ●Height  compensator  type:Rotative(J)
    Unable to rotate(K)

    Model B C L m2 i4
    Bumper Support Model
    C-ZPT25D□●10-B5-A14 10 50 77 ZPT3-●10-B5-A14
    C-ZPT25D□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT25D□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT25D□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT25D□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT25D□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT25D□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT25D□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    □Material:NBR(N),Silicone(S)
    ■Buffer   stroke(mm):10,20,30,50
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L m3 j4
    Bumper Support Model
    C-ZPR25D□●10-◇-A10 10 23 45 ZPR3-●10-◇-A10
    C-ZPR25D□●20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR25D□●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR25D□●40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR25D□●50-◇-A10 50 139 ZPR3-●50-◇-A10
    □Material:NBR(N),Silicone(S)     ●Height compensator type:Rotative(J)
    ◇Vacuum portconnection:04,06,08                            Unable to rotate(K)

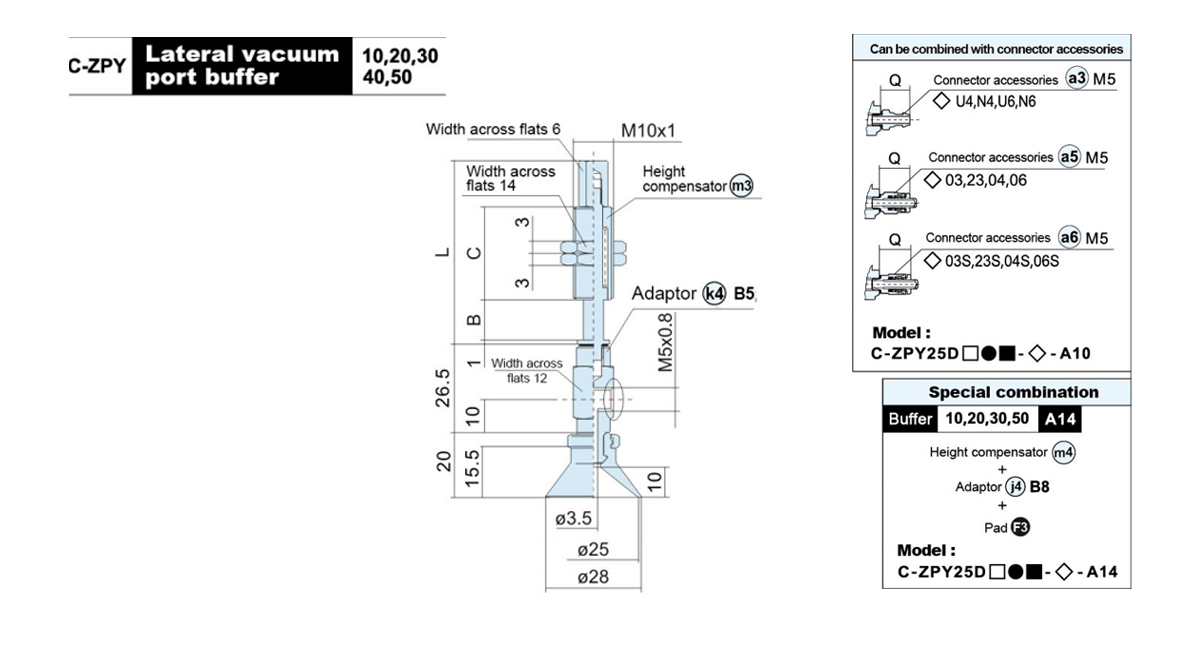

    Model B C L m3 k4 Bumper Support Model
    C-ZPY25D□●10-B5-A10 10 23 45 ZPY3-●10-B5-A10
    C-ZPY25D□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY25D□●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY25D□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY25D□●50-B5-A10 50 139 ZPY3-●50-B5-A10

    □Material:NBR(N),Silicone(S)

    ●Height compensator type:Rotative(J)
    ■ Buffer  stroke(mm):10,20,30,40,50                                                   Unable to rotate(K)

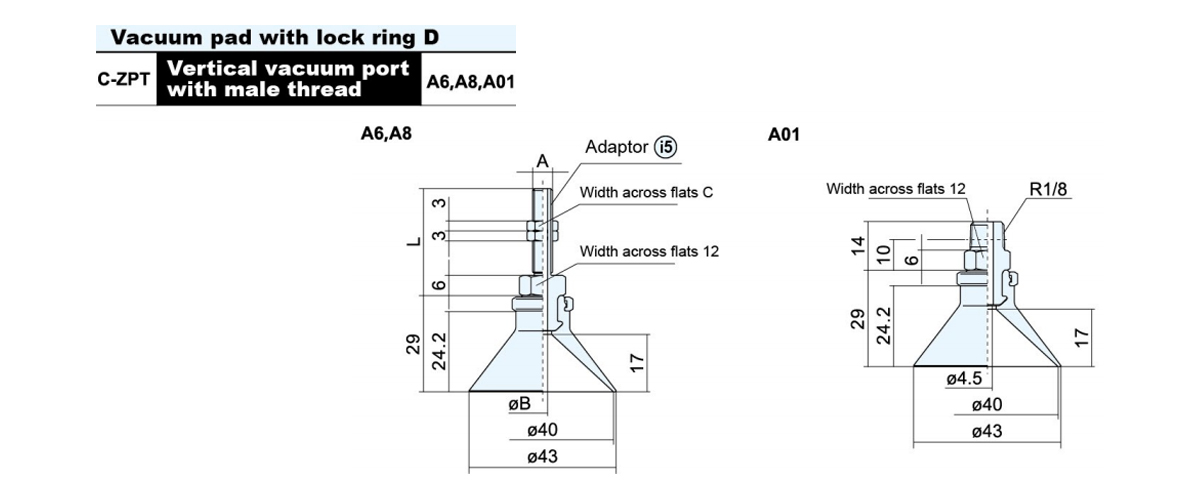

    Model A ØB C L Adaptor
    Model
    C-ZPT40D□-A6 M6×1.0 3.5 8 32 ZPT4-A6
    C-ZPT40D□-A8 M8×1.0 4.5 12 22 ZPT4-A8
    C-ZPT40D□-A01 - - - - ZPT4-A01
    □Material:NBR(N),Silicone(S)

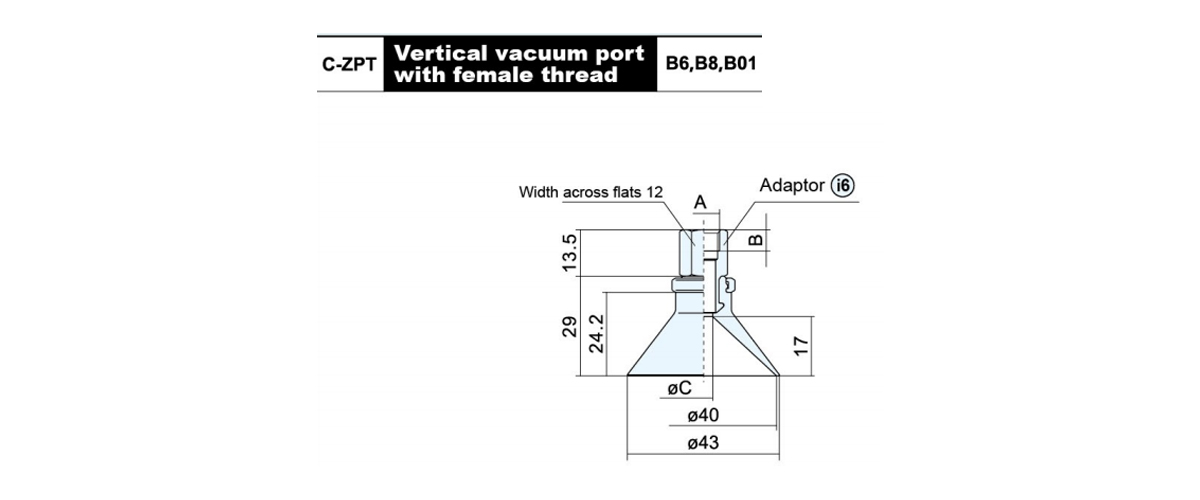

    Model A B C Adaptor
    Model
    C-ZPT40D□-B6 M6×1.0 6 4.5 ZPT4-B6
    C-ZPT40D□-B8 M8×1.25 8 6.8 ZPT4-B8
    C-ZPT40D□-B01 Rc1/8 6.2 ZPT4-B01
    □Material:NBR(N),Silicone(S)

    Model A E L Adaptor
    Model
    C-ZPR40D□-◇-A6 M6×1.0 8 68 ZPR4-◇-A6
    C-ZPR40D□-◇-A8 M8×1.0 12 58 ZPR4-◇-A8
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:06,08

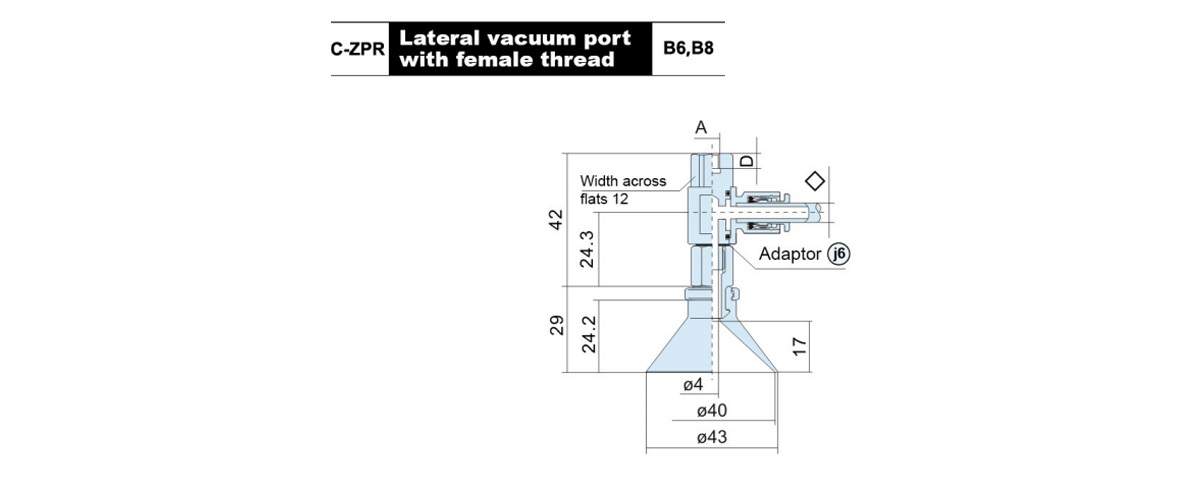

    Model A D Adaptor
    Model
    C-ZPR40D□-◇-B6 M6×1.0 6 ZPR4-◇-B6
    C-ZPR40D□-◇-B8 M8×1.25 8 ZPR4-◇-B8
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:06,08

    Model A B L Adaptor
    Model
    C-ZPY40D□-B5-A6 M6×1.0 8 54 ZPY4-B5-A6
    C-ZPY40D□-B5-A8 M8×1.0 12 44 ZPY4-B5-A8
    □Material:NBR(N),Silicone(S)

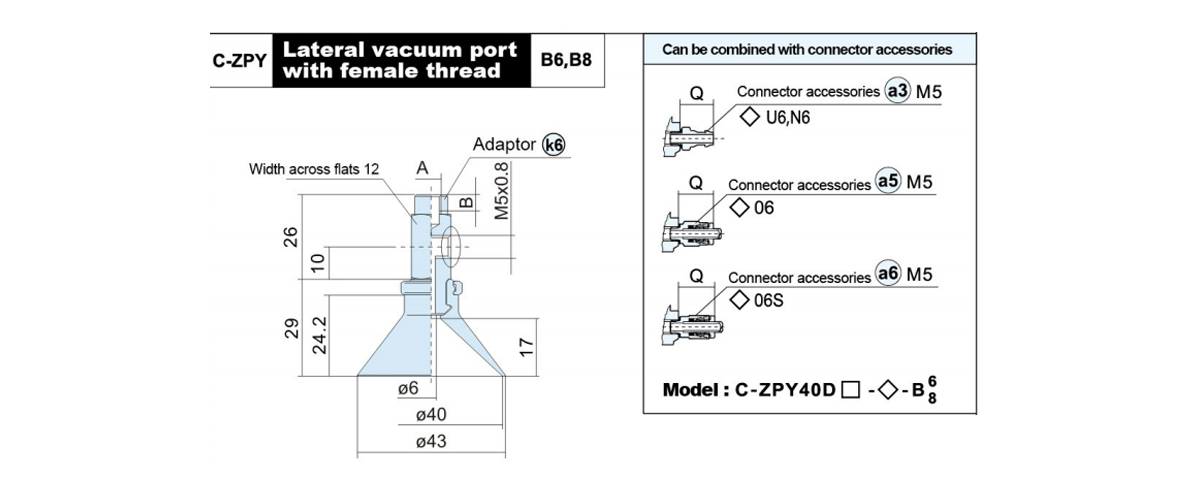

    Model A B Adaptor
    Model
    C-ZPY40D□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY40D□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    □Material:NBR(N),Silicone(S)

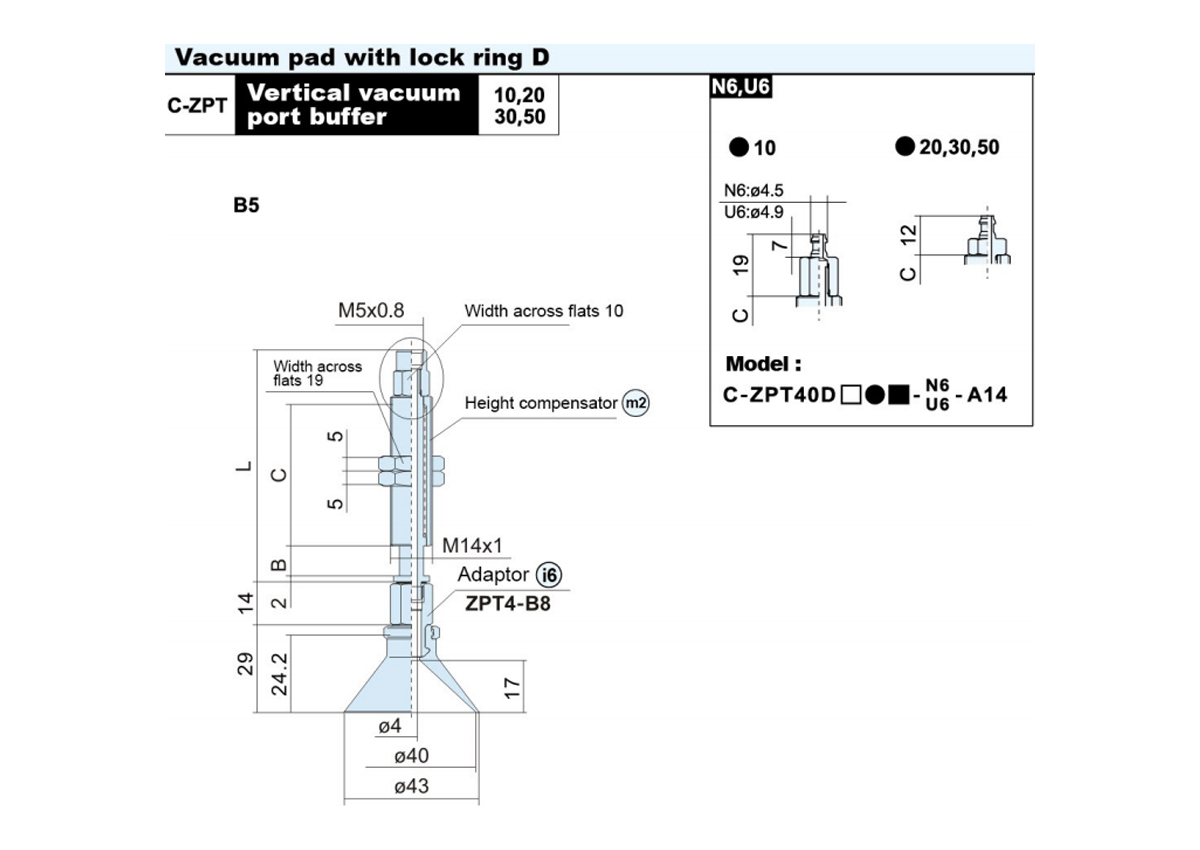

    Model B C L m2 i6
    Bumper Support Model
    C-ZPT40D□●10-B5-A14 10 50 77 ZPT4-●10-B5-A14
    C-ZPT40D□●20-B5-A14 20 81 ZPT4-●20-B5-A14
    C-ZPT40D□●30-B5-A14 30 91 ZPT4-●30-B5-A14
    C-ZPT40D□●50-B5-A14 50 75 136 ZPT4-●50-B5-A14
    □    Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J),Unable to rotate(K)
    ■ Buffer stroke(mm):10,20,30,50

    Model B C L m2 i6
    Bumper Support Model
    C-ZPT40D□●10-B01-A14 10 50 78.5 ZPT4-●10-B01-A14
    C-ZPT40D□●20-B01-A14 20 84 ZPT4-●20-B01-A14
    C-ZPT40D□●30-B01-A14 30 94 ZPT4-●30-B01-A14
    C-ZPT40D□●50-B01-A14 50 75 139 ZPT4-●50-B01-A14
    □    Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J),Unable to rotate(K)
    ■ Buffer stroke(mm):10,20,30,50

    Model B C L m4 j6
    Bumper Support Model
    C-ZPR40D□●10-◇-A14 10 50 80 ZPR4-●10-◇-A14
    C-ZPR40D□●20-◇-A14 20 77 ZPR4-●20-◇-A14
    C-ZPR40D□●30-◇-A14 30 87 ZPR4-●30-◇-A14
    C-ZPR40D□●50-◇-A14 50 75 132 ZPR4-●50-◇-A14
    □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

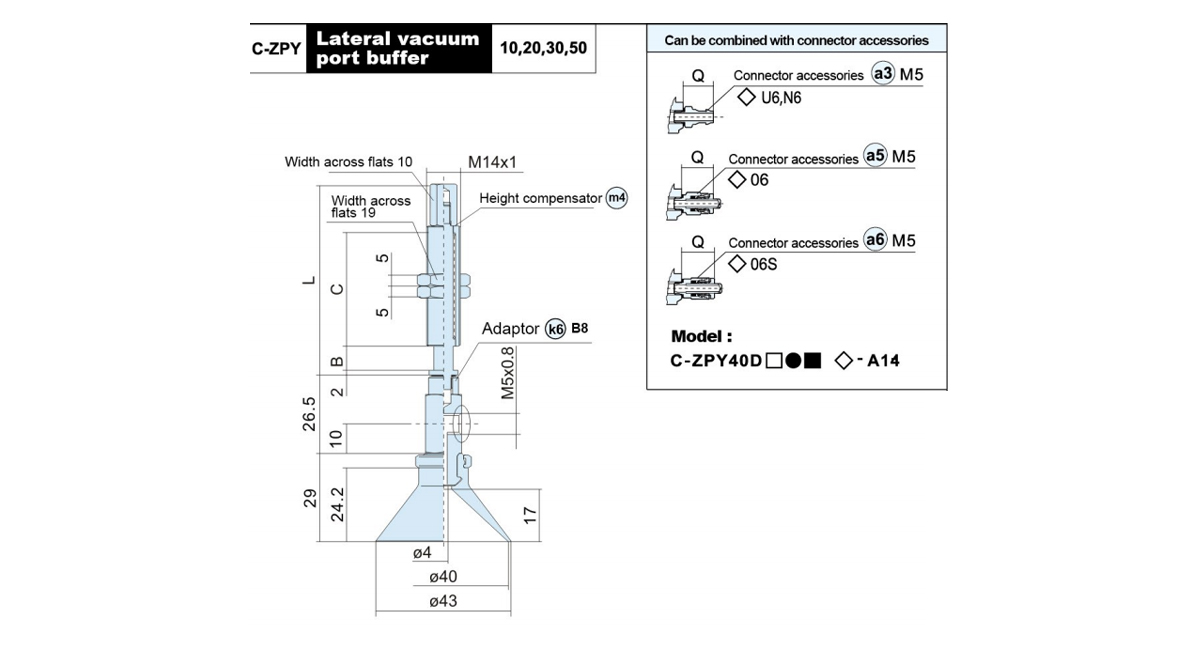

    Model B C L m4 k6
    Bumper Support Model
    C-ZPY40D□●10-◇-A14 10 50 80 ZPY4-●10-◇-A14
    C-ZPY40D□●20-◇-A14 20 77 ZPY4-●20-◇-A14
    C-ZPY40D□●30-◇-A14 30 87 ZPY4-●30-◇-A14
    C-ZPY40D□●50-◇-A14 50 75 132 ZPY4-●50-◇-A14
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model A B C L ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPT○B□-A5 M5×0.8 7 4 26 16 18.5 20 ZPT2-A5
    C-ZPT○B□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○B□-A01 - - - ZPT2-A01
    ○Symbol of pad diameter:10,13,16     □ Material:NBR(N),Silicone(S)

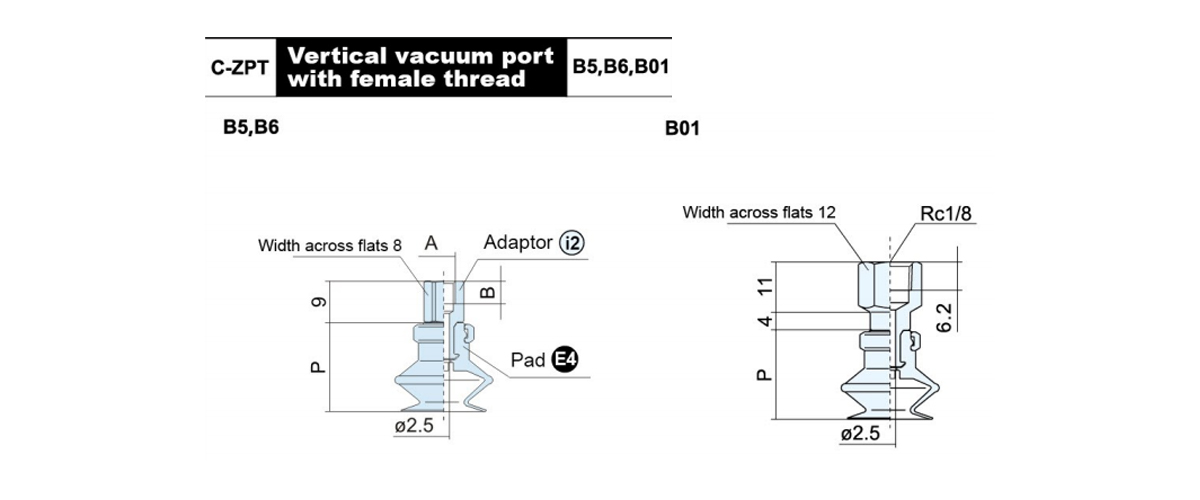

    Model A B ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPT○B□-B5 M5×0.8 5 16 18.5 20 ZPT2-B5
    C-ZPT○B□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○B□-B01 - - ZPT2-B01
    ○Symbol of pad diameter:10,13,16     □ Material:NBR(N),Silicone(S)

    Model A D E L ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPR○B□-◇-A5 M5×0.8 4 7 55 16 18.5 20 ZPR2-◇-A5
    C-ZPR○B□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A D ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPR○B□-◇-B5 M5×0.8 5 16 18.5 20 ZPR2-◇-B5
    C-ZPR○B□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A B C L ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPY○B□-B5-A5 M5×0.8 7 4 47 16 18.5 20 ZPY2-B5-A5
    C-ZPY○B□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○Symbol of pad diameter:10,13,16 Material:NBR(N),Silicone(S)

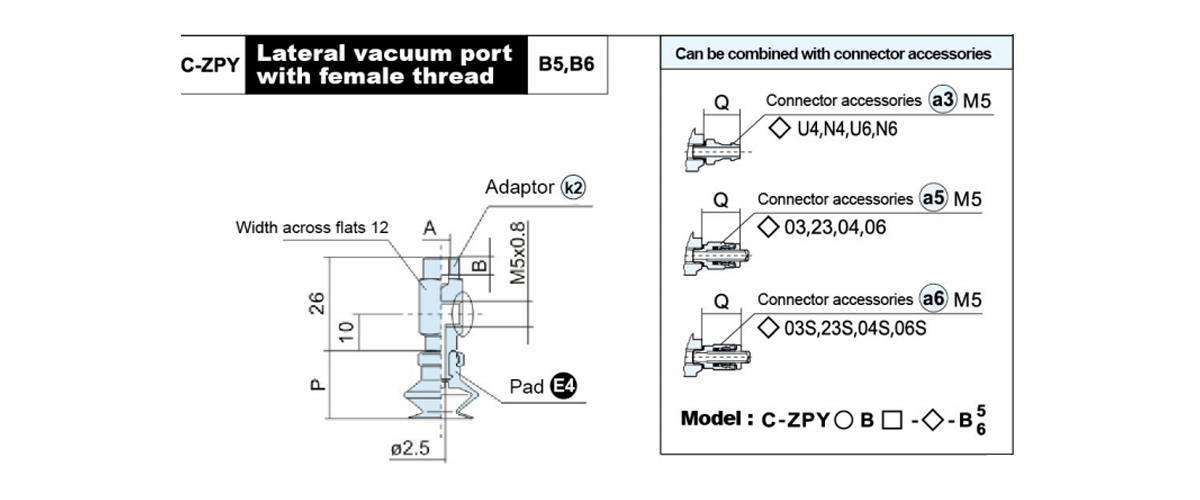

    Model A B ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPY○B□-B5-B5 M5×0.8 5 16 18.5 20 ZPY2-B5-B5
    C-ZPY○B□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter  P m1 i2
    Bumper Support Model
    10 13 16
    C-ZPT○ B□ J10-B5-A10 10 23 47 16 18.5 20 ZPT2-J10-B5-A10
    C-ZPT○ B□ J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○ B□ J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○ B□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○ B□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J) Unable to rotate(K)

    Model B C L ○Pad Diameter P m1 i2
    Bumper Support Model
    10 13 16
    C-ZPT○ B□K10-B5-A10 10 23 47 16 18.5 20 ZPT2-K10-B5-A10
    C-ZPT○ B□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○ B□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○ B□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○ B□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J) Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    10 13 16
    C-ZPR○ B□●10-◇-A10 10 23 45 16 18.5 20 ZPR2-●10-◇-A10
    C-ZPR○ B□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○ B□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○ B□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○ B□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○  Symbol of pad diameter:10,13,16
    ◇Vacuum port connection:04,06
    □ Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

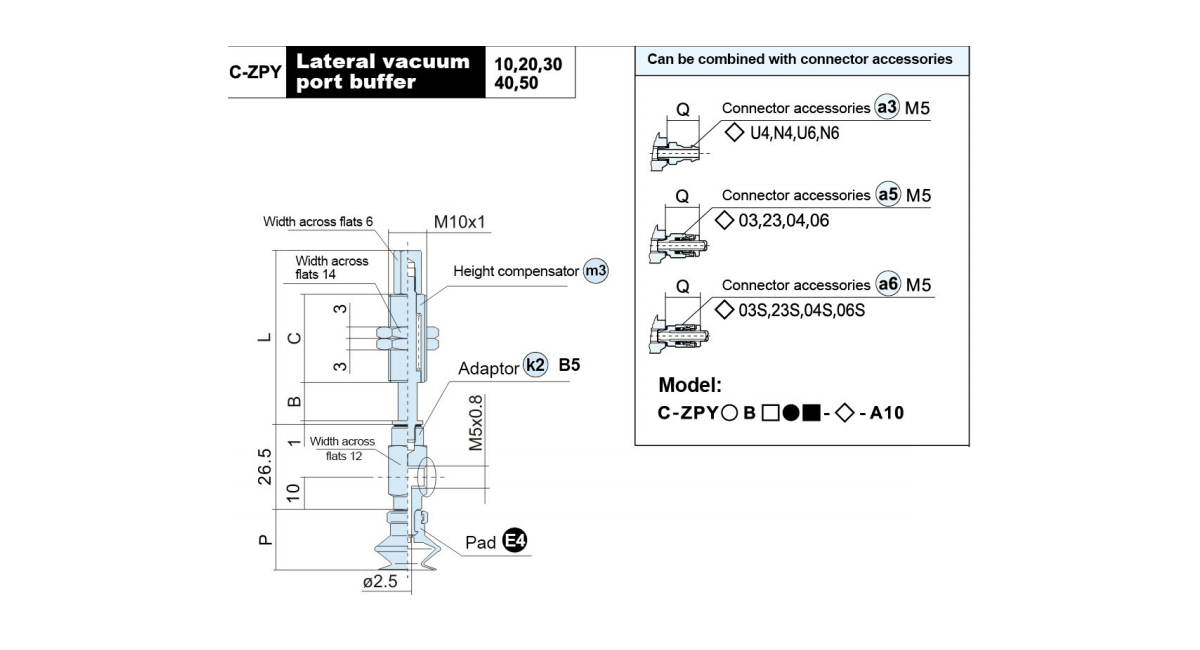

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    10 13 16
    C-ZPY○B□●10-B5-A10 10 23 45 16 18.5 20 ZPY2-●10-B5-A10
    C-ZPY○B□●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○B□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○B□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○B□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○  Symbol  of  pad  diameter:10,13,16    □       Material:NBR(N),Silicone(S)
    ◇Vacuum   port   connection:04,06               Buffer   stroke(mm):10,20,30,40,50

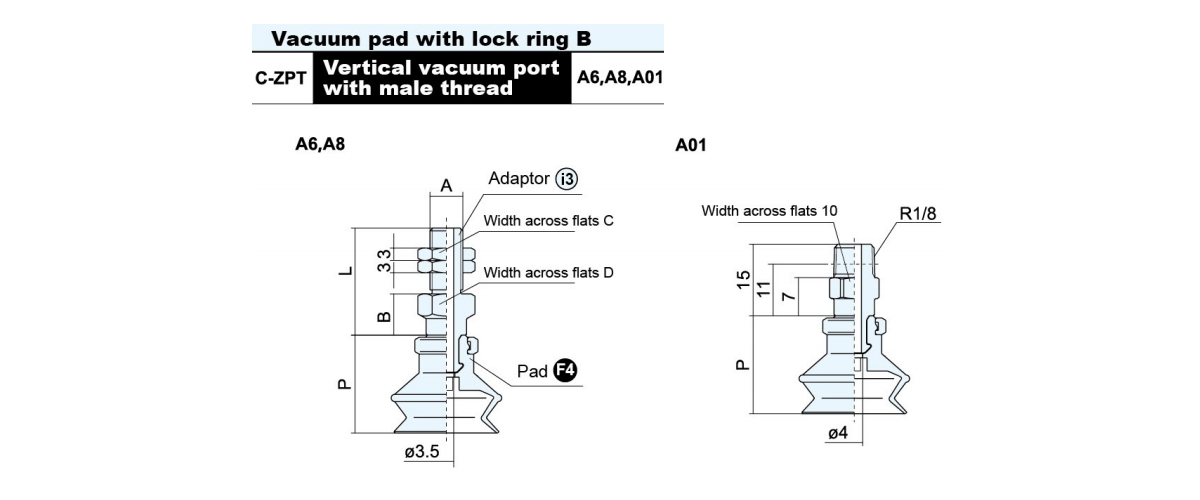

    Model A B C D L ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPT○B□-A6 M6×1.0 5 8 8 31 23.5 24 29 ZPT3-A6
    C-ZPT○B□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT○B□-A01 - - - - - ZPT3-A01
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

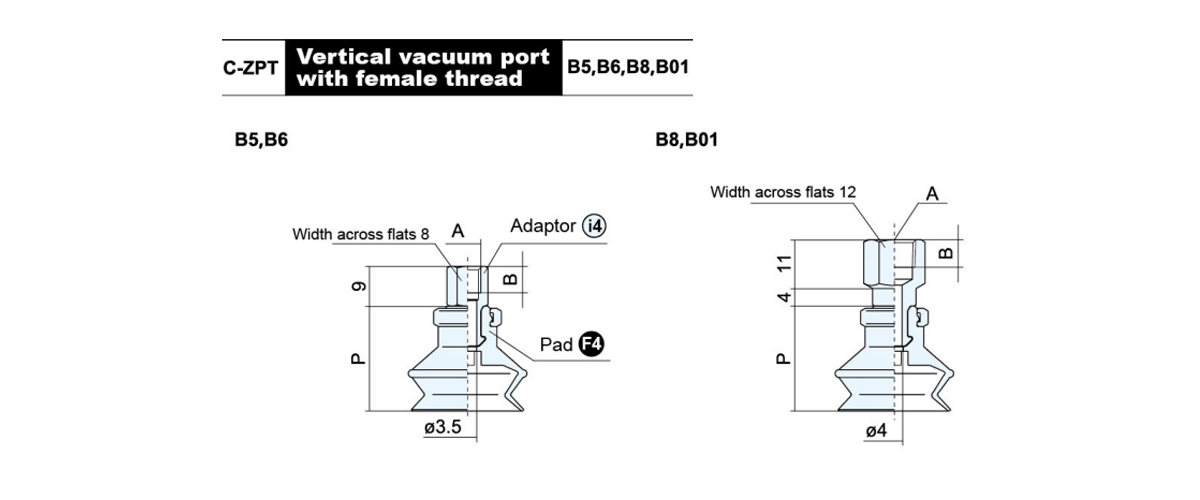

    Model A B ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPT○B□-B5 M5×0.8 5 23.5 24 29 ZPT3-B5
    C-ZPT○B□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT○B□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT○B□-B01 Rc1/8 6.2 ZPT3-B01
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model A E L ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPR○B□-◇-A6 M6×1.0 8 69.5 23.5 24 29 ZPR3-◇-A6
    C-ZPR○B□-◇-A8 M8×1.0 12 59.5 ZPR3-◇-A8
    ○ Symbol of pad diameter:20,25,32   □  Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06,08

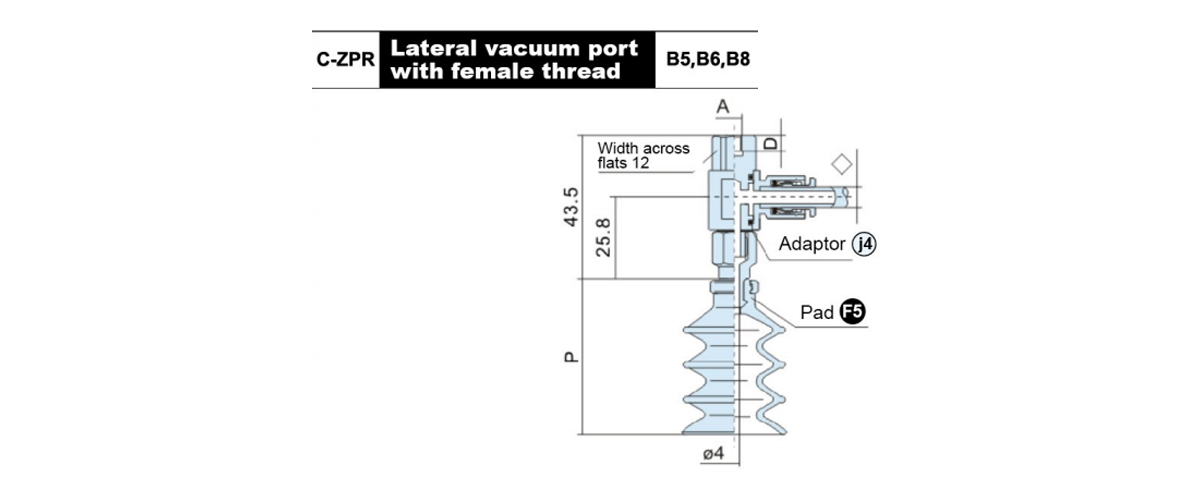

    Model A D ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPR○B□-◇-B5 M5×0.8 5 23.5 24 29 ZPR3-◇-B5
    C-ZPR○B□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR○B□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    ○  Symbol  of  pad  diameter:20,25,32       □ Material:NBR(N),Silicone(S)
    ◇ Vacuum  port  connection:04.06.08

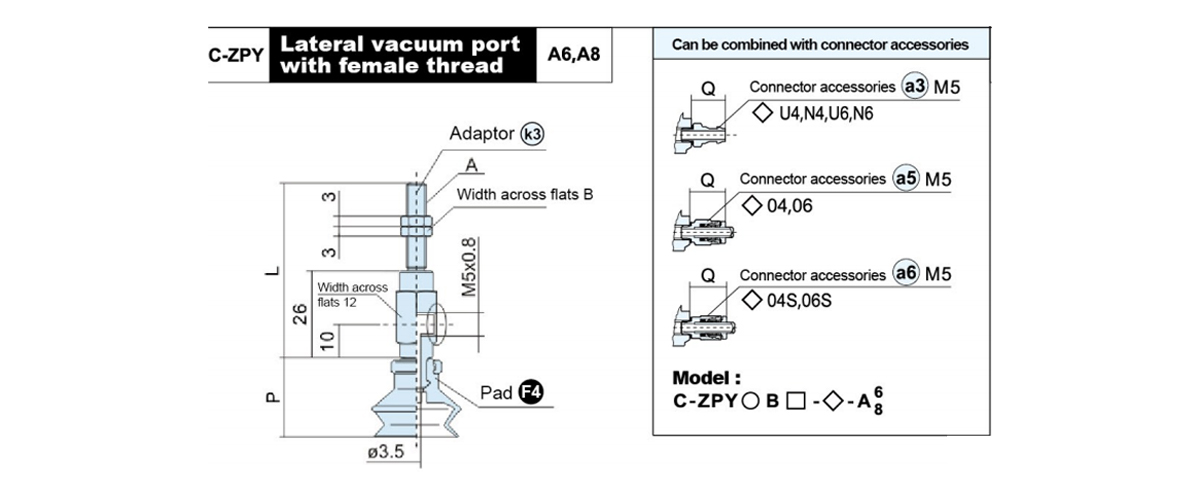

    Model A B L ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPY○B□-B5-A6 M6×1.0 8 54 23.5 24 29 ZPY3-B5-A6
    C-ZPY○B□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

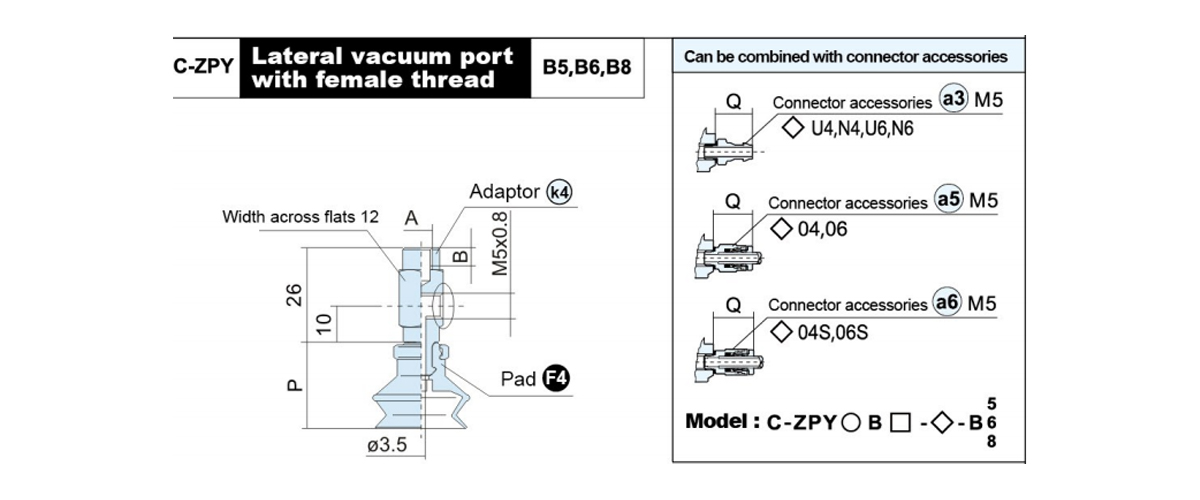

    Model A B ○ Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPY○B□-B5-B5 M5×0.8 5 23.5 24 29 ZPY3-B5-B5
    C-ZPY○B□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY○B□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

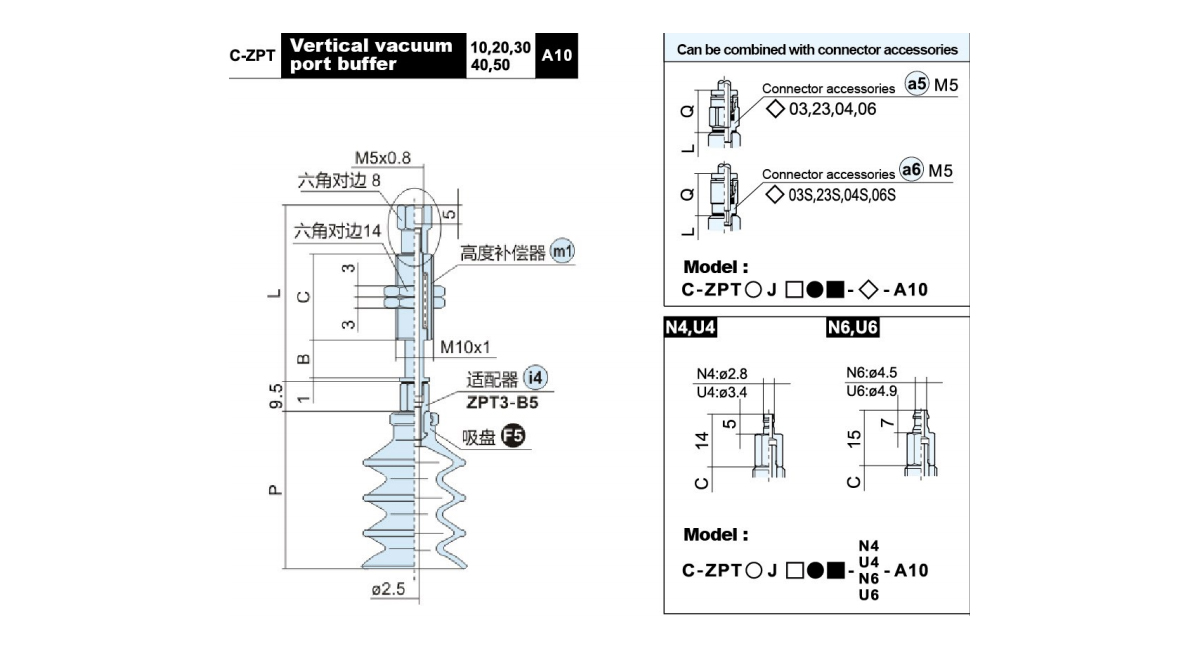

    Model B C L ○ Pad Diameter P m1 i4
    Bumper Support Model
    20 25 32
    C-ZPT○B□●10-B5-A10 10 23 47 23.5 24 29 ZPT3-●10-B5-A10
    C-ZPT○B□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT○B□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT○B□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT○B□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    ○ Symbol of pad diameter:20,25,32
    ■  Buffer  stroke(mm):10,20,30,40,50
    □     Material:NBR(N),Silicone(S)
    ●Height  compensator  type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○Pad diameter P m2 i4
    Bumper Support Model
    20 25 32
    C-ZPT○B□●10-B5-A14 10 50 77 23.5 24 29 ZPT3-●10-B5-A14
    C-ZPT○B□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT○B□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT○B□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT○B□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT○B□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT○B□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT○B□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    ○ Symbol of pad diameter:20,25,32
    ■ Buffer stroke(mm):10,20,30,40,50
    □        Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○Pad diameter m3 j4
    Bumper Support Model
    20 25 32
    C-ZPR○B□O10-◇-A10 10 23 45 23.5 24 29 ZPR3-●10-◇-A10
    C-ZPR○B□● 20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR○B□●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR○B□● 40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR○B□● 50-◇-A10 50 139 ZPR3-●50-◇-A10
    ○ Symbol of pad diameter:20,25,32
    ◇ Vacuum
    port connection:04,06,08
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J)  Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 k4
    Bumper Support Model
    20 25 32
    C-ZPY○B□●10-B5-A10 10 23 45 23.5 24 29 ZPY3-●10-B5-A10
    C-ZPY○B□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY○B□●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY○B□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY○B□●50-B5-A10 50 139 ZPY3-●50-B5-A10
    ○  Symbol  of  pad  diameter:20,25,32
    □  Material:NBR(N),Silicone(S)
    ■  Buffer   stroke(mm):10,20,30,40,50    ●Height   compensator   type:Rotative(J) Unable to rotate(K)

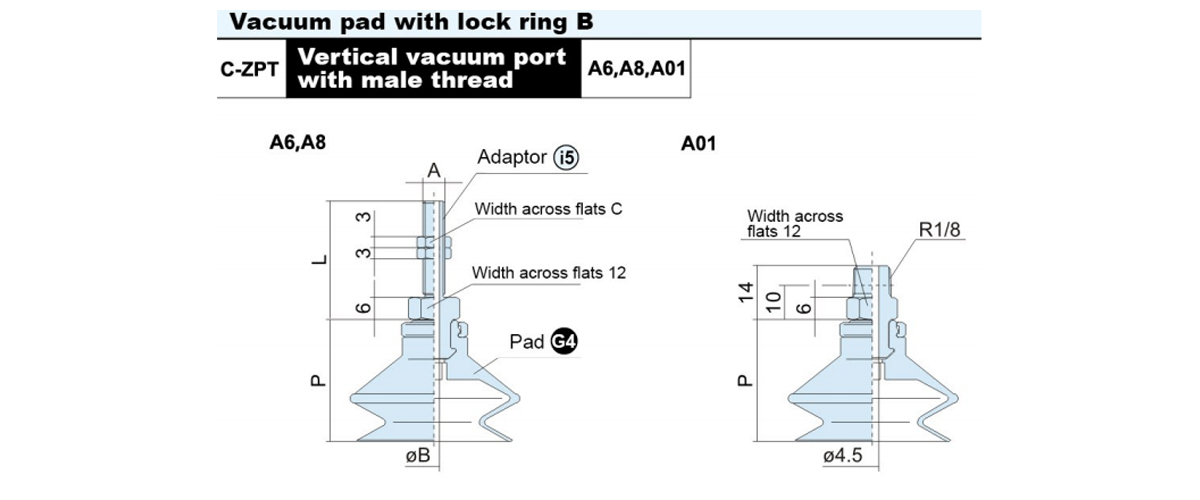

    Model A ØB C L ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPT○B□-A6 M6×1.0 3.5 8 32 34 38 ZPT4-A6
    C-ZPT○B□-A8 M8×1.0 4.5 12 22 ZPT4-A8
    C-ZPT○B□-A01 - - - ZPT4-A01
    ○ Symbol of pad diameter:40,50       □ Material:NBR(N),Silicone(S)

    Model A B oC ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPT○OB□-B6 M6×1.0 6 4.5 34 38 ZPT4-B6
    C-ZPT○B□-B8 M8×1.25 8 6.8 ZPT4-B8
    C-ZPT○B□-B01 Rc1/8 6.2 ZPT4-B01
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

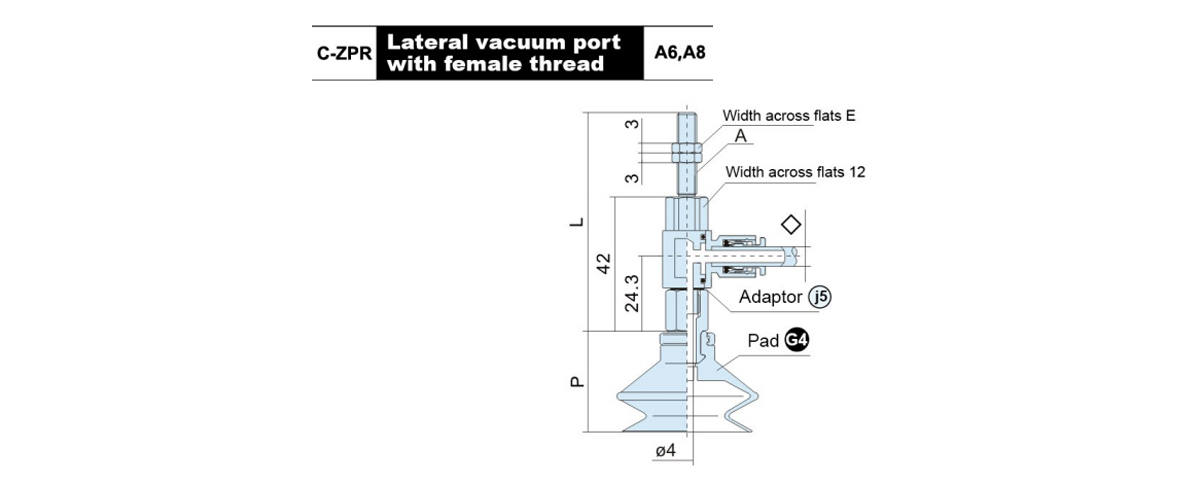

    Model A E L ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPR○B□-◇ -A6 M6×1.0 8 68 34 38 ZPR4-◇-A6
    C-ZPR○B□-◇-A8 M8×1.0 12 58 ZPR4-◇-A8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08

    Model A D ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPR○B□-◇-B6 M6×1.0 6 34 38 ZPR4-◇-B6
    C-ZPR○B□-◇-B8 M8×1.25 8 ZPR4-◇-B8
    ○ Symbol of pad dameter:40,50       □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08

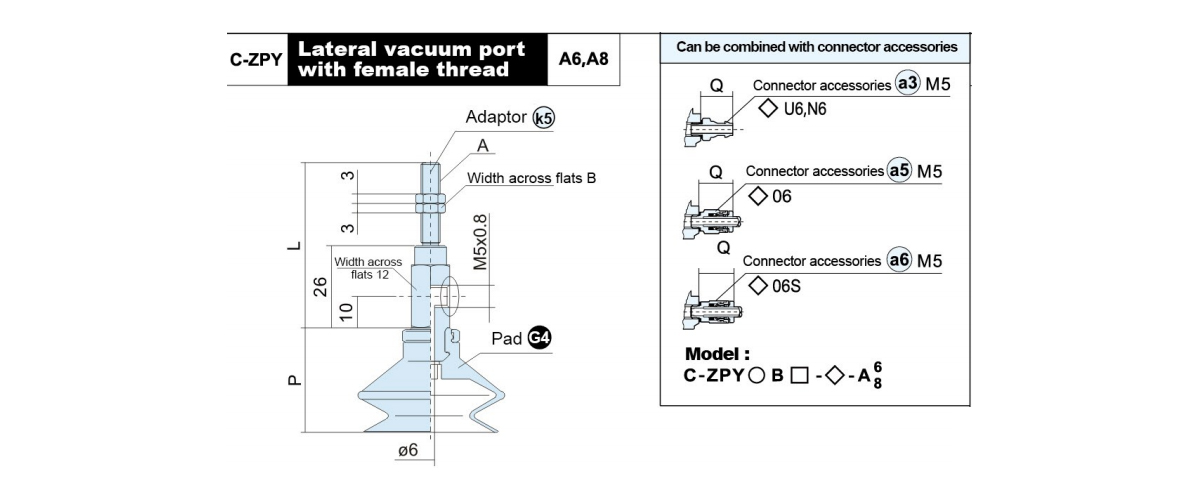

    Model A B L ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPY○B□-B5-A6 M6×1.0 8 54 34 38 ZPY4-B5-A6
    C-ZPY○B□-B5-A8 M8×1.0 12 44 ZPY4-B5-A8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

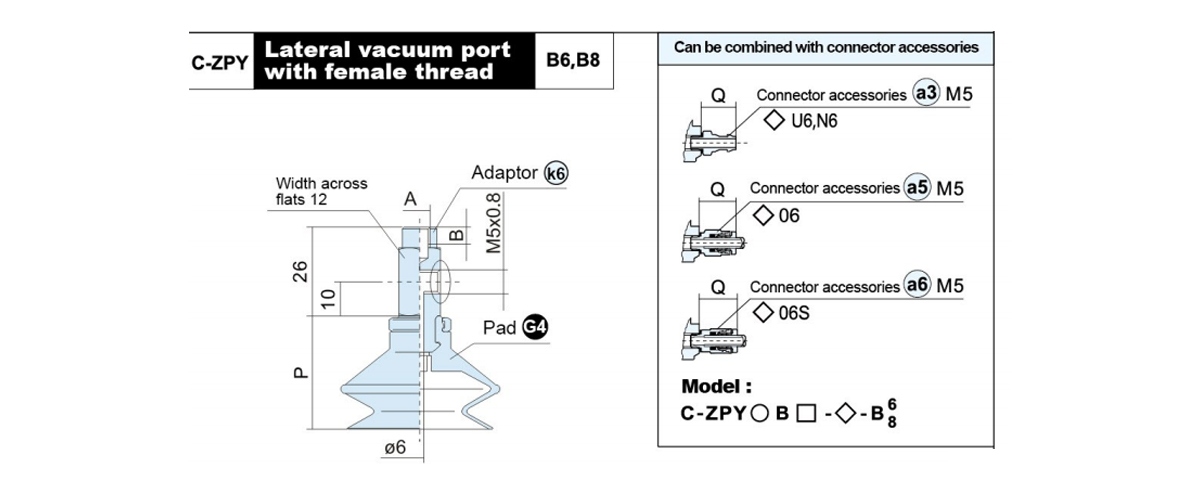

    Model A B ○Pad Diameter  P Adaptor
    Model
    40 50
    C-ZPY○B□-B5-B6 M6×1.0 6 34 38 ZPY3-B5-B6
    C-ZPY○B□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

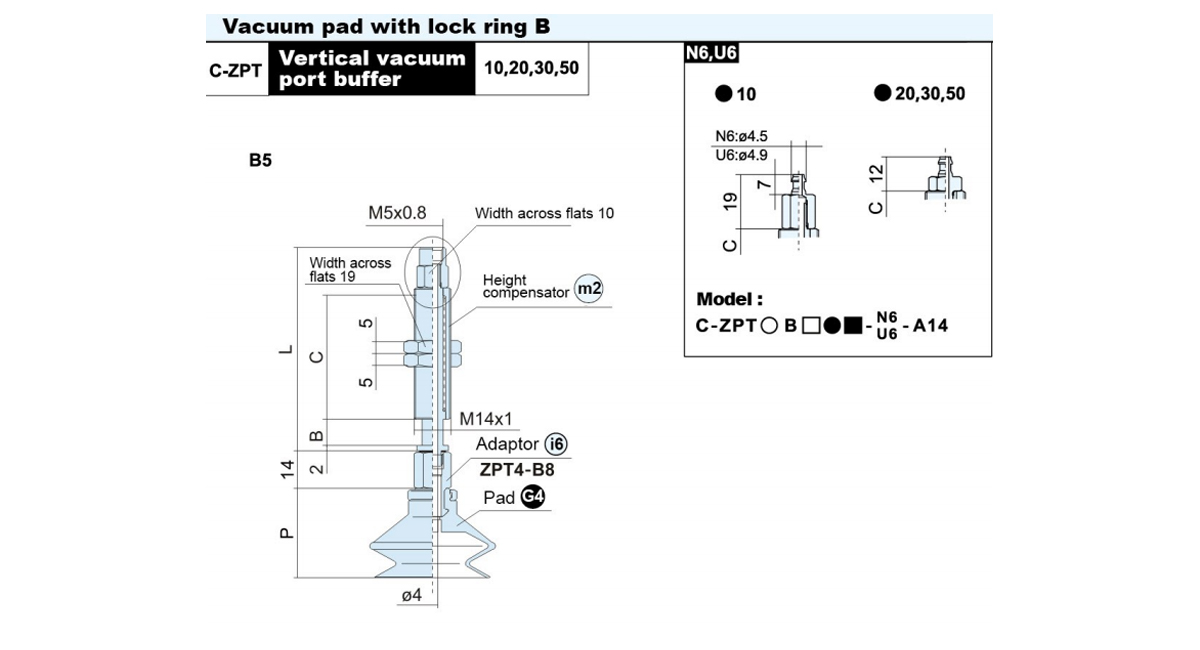

    Model B C L ○ Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○B□●10-B5-A14 10 50 77 34 38 ZPT4-●10-B5-A14
    C-ZPT○B□●20-B5-A14 20 81 ZPT4-●20-B5-A14
    C-ZPT○B□●30-B5-A14 30 91 ZPT4-●30-B5-A14
    C-ZPT○B□●50-B5-A14 50 75 136 ZPT4-●50-B5-A14
    ○ Symbol of pad diameter:40,50
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J),Unable to rotate(K)

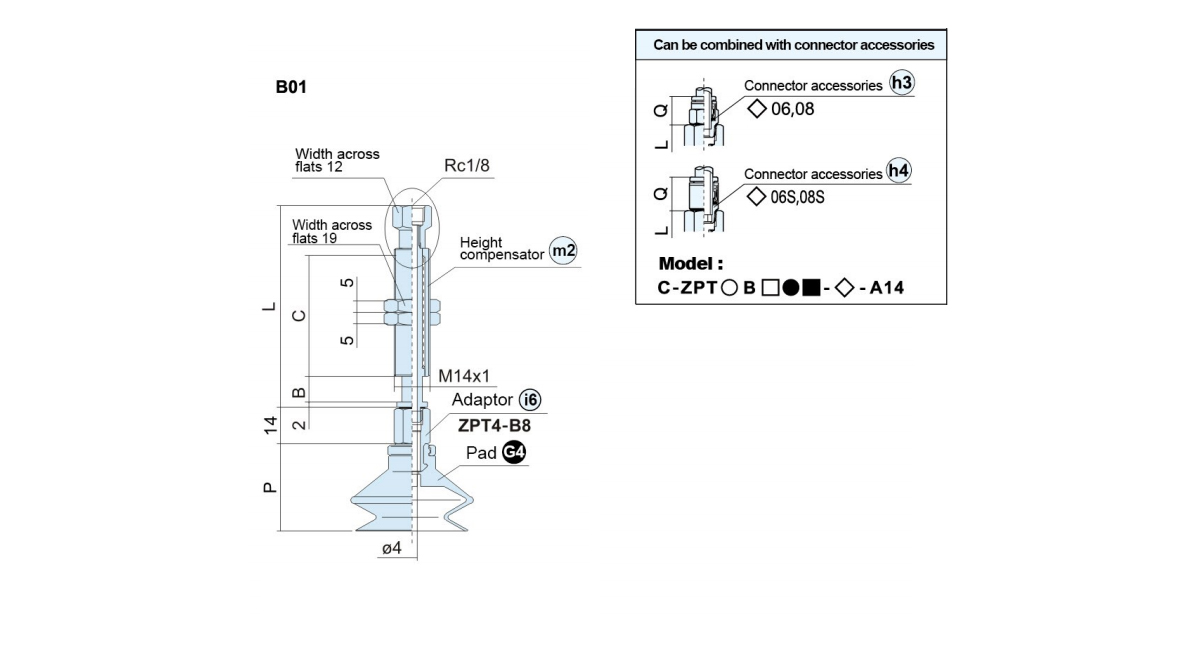

    Model B C L ○Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○B□●10-B01-A14 10 50 78.5 34 38 ZPT4-●10-B01-A14
    C-ZPT○B□●20-B01-A14 20 84 ZPT4-●20-B01-A14
    C-ZPT○B□●30-B01-A14 30 94 ZPT4-●30-B01-A14
    C-ZPT○B□●50-B01-A14 50 75 139 ZPT4-●50-B01-A14
    ○ Symbol of pad diameter:40,50
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J),Unable to rotate(K)

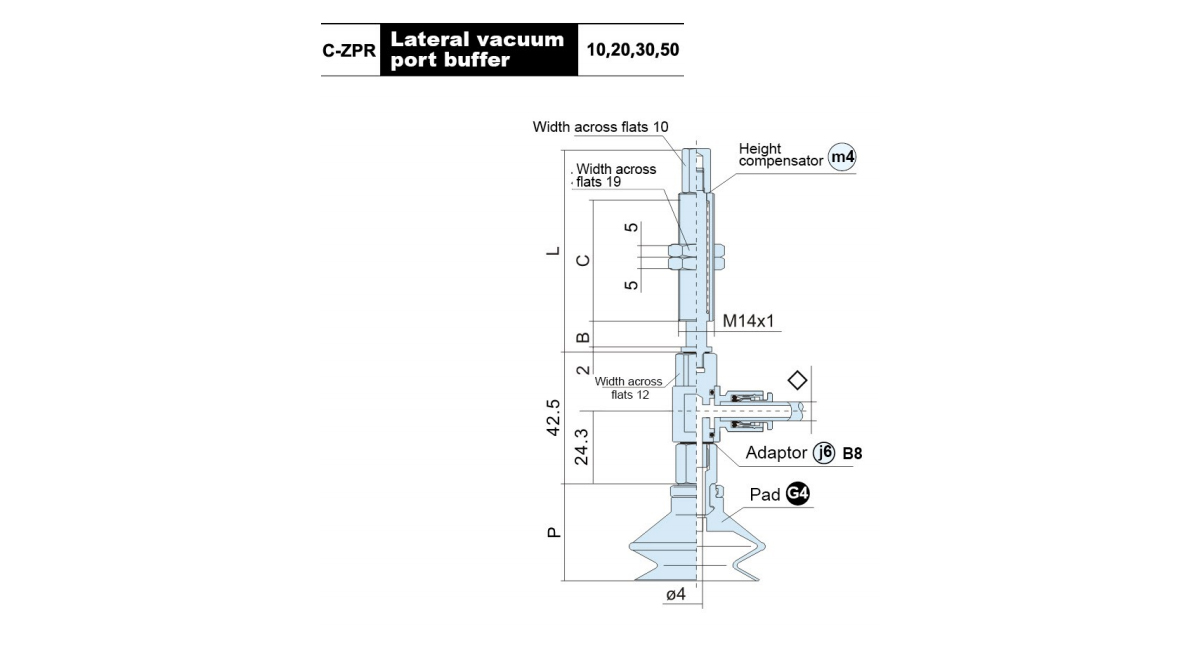

    Model B C L ○Pad Diameter P m4 j6
    Bumper Support Model
    40 50
    C-ZPR○B□●10-◇-A14 10 50 80 34 38 ZPR4-●10-◇-A14
    C-ZPR○B□●20-◇-A14 20 77 ZPR4-●20-◇-A14
    C-ZPR○B□●30-◇-A14 30 87 ZPR4-●30-◇-A14
    C-ZPR○B□●50-◇-A14 50 75 132 ZPR4-●50-◇-A14
    ○ Symbol of pad diameter:40,50
    ◇Vacuum port connection:06,08
    □ Material:NBR(N),Silicone(S)
    ●Height  compensator  type:Rotative(J) Unable to rotate(K)

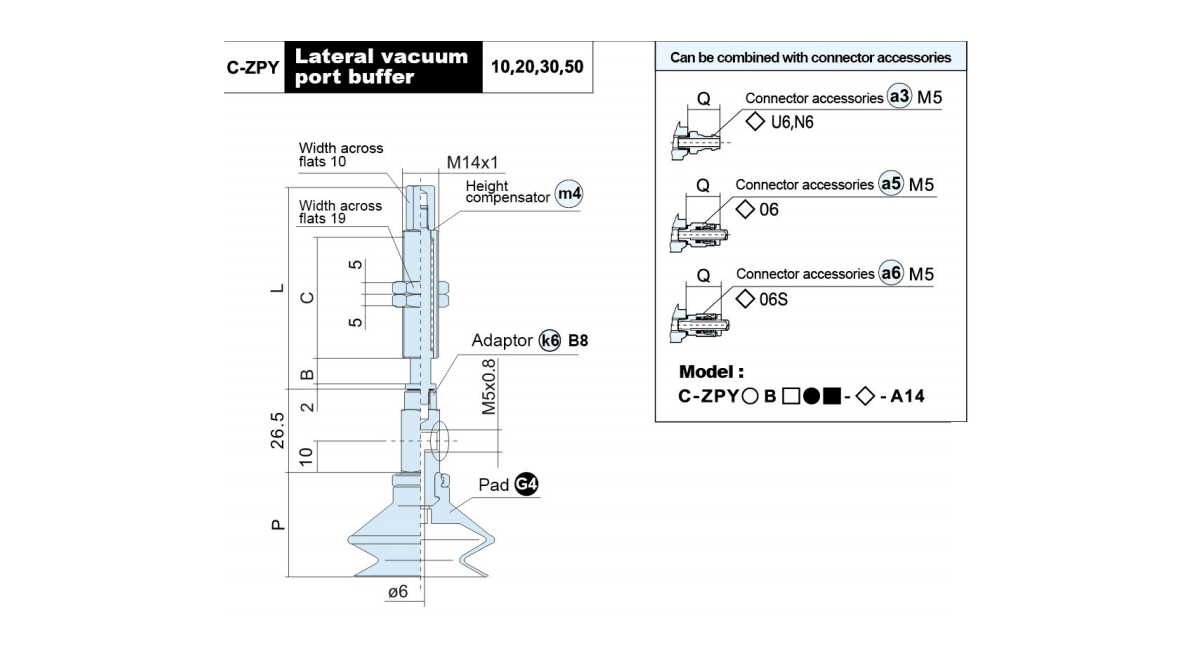

    Model B C L ○Pad Diameter P m4 k6
    Bumper Support Model
    40 50
    C-ZPY○B□●10-◇-A14 10 50 80 34 38 ZPY4-●10-◇-A14
    C-ZPY○B□●20-◇-A14 20 77 ZPY4-●20-◇-A14
    C-ZPY○B□●30-◇-A14 30 87 ZPY4-●30-◇-A14
    C-ZPY○B□●50-◇-A14 50 75 132 ZPY4-●50-◇-A14
    ○  Symbo  of  pad  diameter:40,50
    □  Material:NBR(N),Silicone(S)
    ■  Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J) Unable to rotate(K)

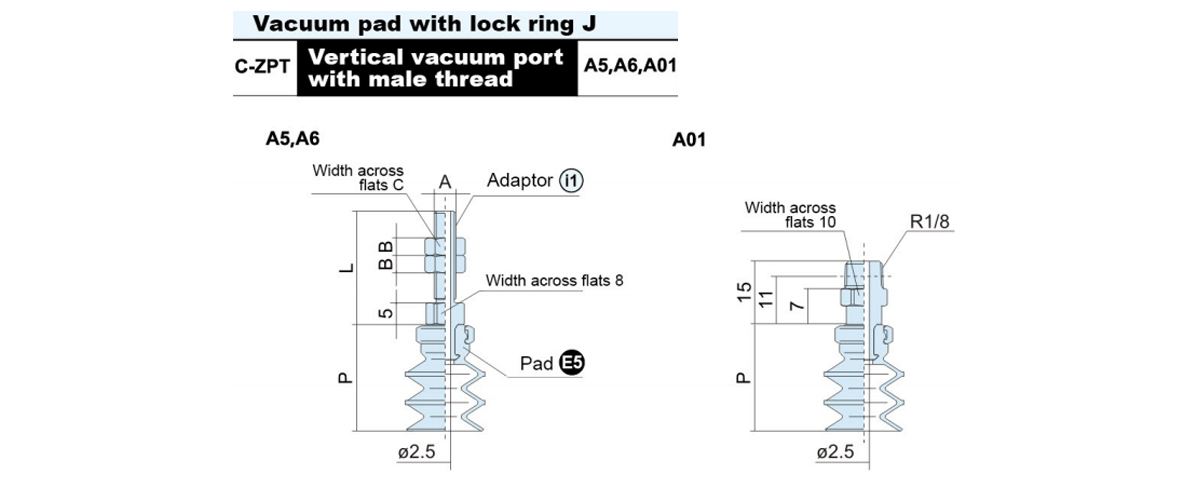

    Model A B C L ○ Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPT○J□-A5 M5×0.8 7 4 26 18 24 24 ZPT2-A5
    C-ZPT○J□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○J□-A01 - - - - ZPT2-A01
    ○ Symbol of pad diameter:09,14,16       □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPT○J□-B5 M5×0.8 5 18 24 24 ZPT2-B5
    C-ZPT○J□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○J□-B01 - - ZPT2-B01
    ○ Symbol of pad diameter:09,14,16         □ Material:NBR(N),Silicone(S)

    Model A D E L O Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPR○J□-◇-A5 M5×0.8 4 7 55 18 24 24 ZPR2-◇-A5
    C-ZPR○J□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○ Symbol of pad diameter:09,14,16   □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

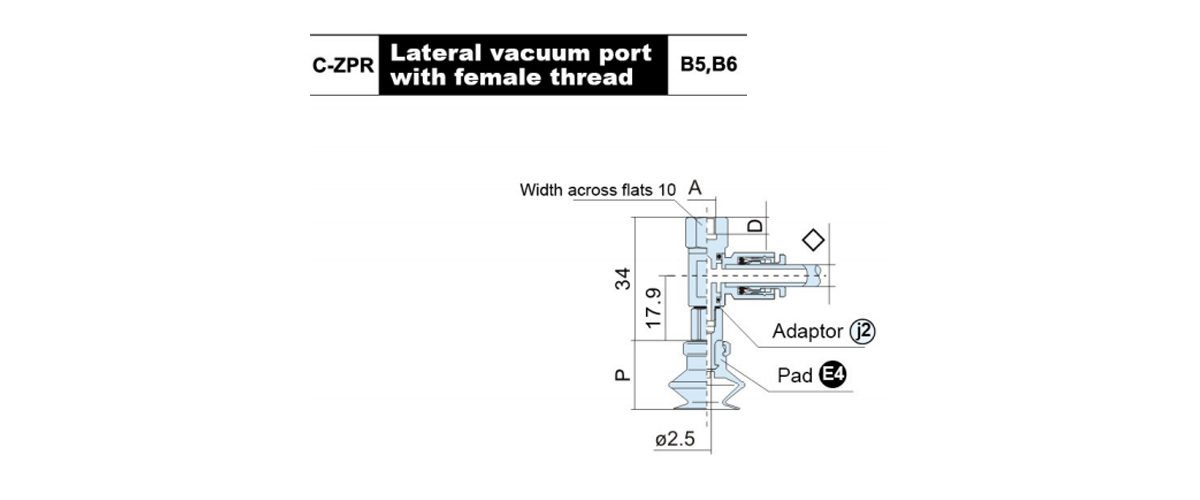

    Model A D ○Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPR○J□-◇-B5 M5×0.8 5 18 24 24 ZPR2-◇-B5
    C-ZPR○J□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○ Symbol of pad diameter:09,14,16   □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

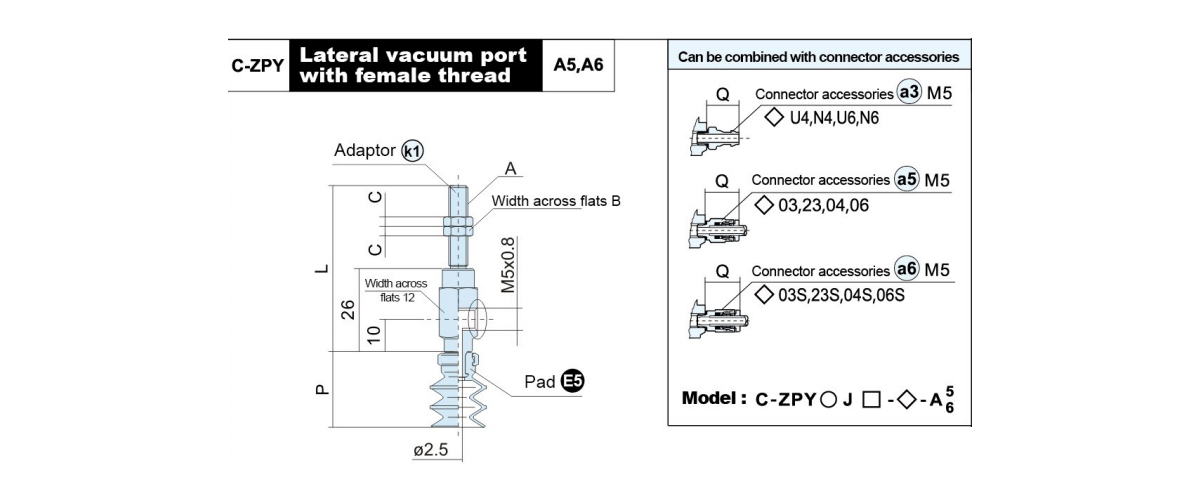

    Model A B C L ○ Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPY○J□-B5-A5 M5×0.8 7 4 47 18 24 24 ZPY2-B5-A5
    C-ZPY○J□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○ Symbol of pad diameter:09,14,16    □ Material:NBR(N),Silicone(S)

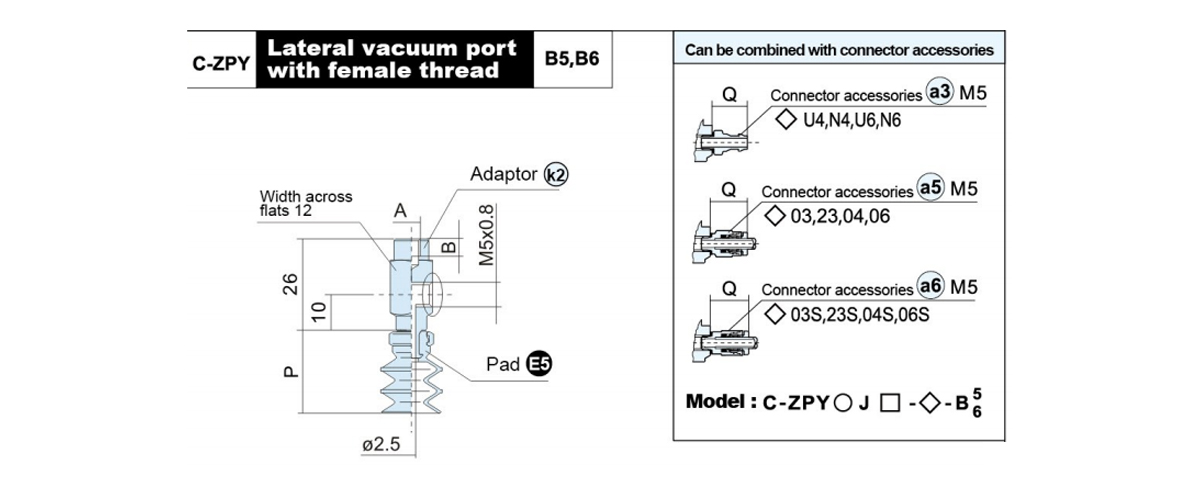

    Model A B ○ Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPY○J□-B5-B5 M5×0.8 5 18 24 24 ZPY2-B5-B5
    C-ZPY○J□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○ Symbol of pad diameter:09,14,16    □ Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter P m1 i2
    Bumper Support Model
    09 14 16
    C-ZPT○J□J10-B5-A10 10 23 47 18 24 24 ZPT2-J10-B5-A10
    C-ZPT○J□J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○J□J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○J□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○J□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:09,14,16
    □  Material:NBR(N),Slicone(S)
    ■  Buffer stroke(mm):10,20,30,40,50
    ●  Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○ Pad Diameter P m1 i2
    Bumper Support Model
    09 14 16
    C-ZPT○J□K10-B5-A10 10 23 47 18 24 24 ZPT2-K10-B5-A10
    C-ZPT○J□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○J□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○J□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○J□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:09,14,16
    □  Material:NBR(N),Slicone(S)
    ■  Buffer stroke(mm):10,20,30,40,50
    ●  Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    09 14 16
    C-ZPR○J□●10-◇-A10 10 23 45 18 24 24 ZPR2-●10-◇-A10
    C-ZPR○J□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○J□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○J□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○J□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○ Symbol of pad diameter:09,14,16
    □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06
    ● Height compensator type:Rotative(J)   Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    09 14 16
    C-ZPY○J□●10-B5-A10 10 23 45 18 24 40 ZPY2-●10-B5-A10
    C-ZPY○J□●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○J□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○J□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○J□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○  Symbol  of  pad  diameter:09,14,16
    ◇Vacuum   port   connection:04,06
    □  Material:NBR(N),Silicone(S)
    ■   Buffer   stroke(mm):10,20,30,40,50

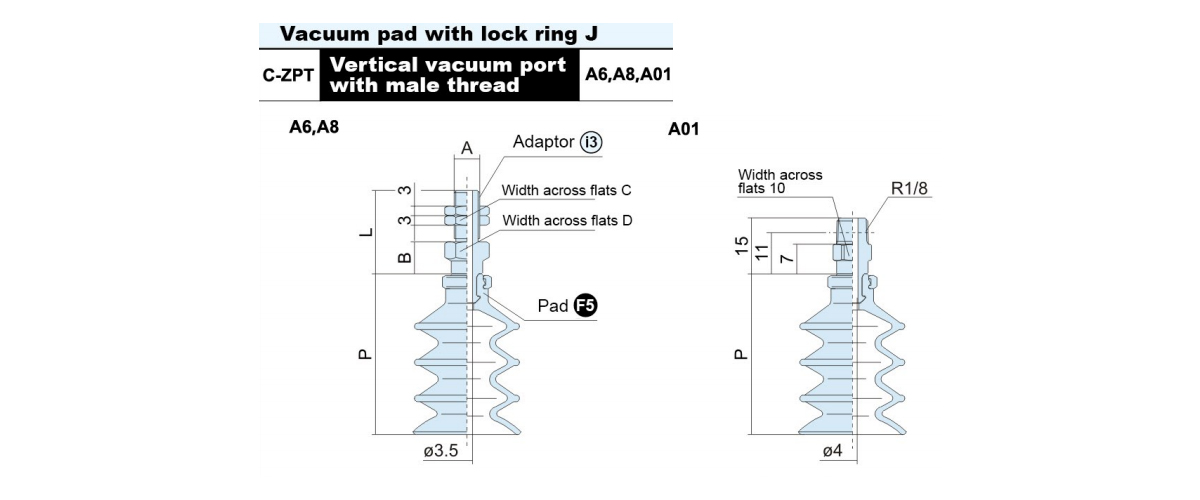

    Model A B C D L ○Pad Diameter P Adaptor
    Model
    25 30
    C-ZPT○J□-A6 M6×1.0 5 8 8 31 42.5 44.5 ZPT3-A6
    C-ZPT○J□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT○J□-A01 - - - - - ZPT3-A01
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

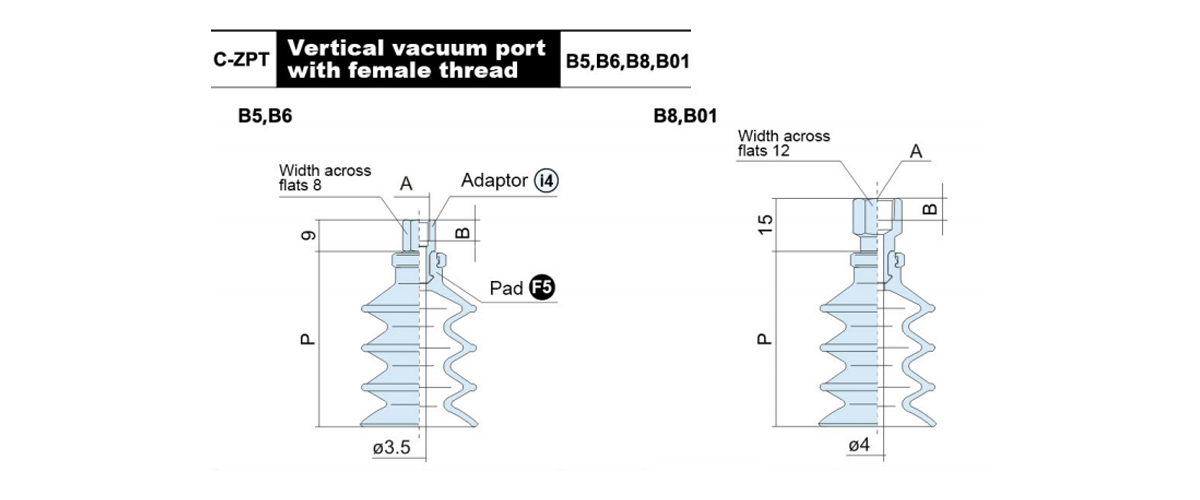

    Model A B ○ Pad Diameter P Adaptor
    Model
    25 30
    C-ZPT○J□-B5 M5×0.8 5 42.5 44.5 ZPT3-B5
    C-ZPT○J□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT○J□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT○J□-B01 Rc1/8 6.2 ZPT3-B01
    ○Symbol of pad diameter:25,30             □ Material:NBR(N),Silicone(S)

    Model A E L ○.Pad Diameter P Adaptor
    Model
    25 30
    C-ZPR○J□-◇-A6 M6×1.0 8 69.5 42.5 44.5 ZPR3-◇-A6
    C-ZPR○J□-◇-A8 M8×1.0 12 59.5 ZPR3-◇-A8
    ○Symbol of pad diameter:25,30        □ Material:NBR(N),Silicone(S)
    ◇ Vacuum port connection:04,06,08

    Model A D ○ Pad Diameter P Adaptor
    Model
    25 30
    C-ZPR○J□-◇-B5 M5×0.8 5 42.5 44.5 ZPR3-◇-B5
    C-ZPR○J□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR○J□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    ○ Symbol of pad diameter:25,30            □ Material:NBR(N),Silicone(S)
    ◇ Vacuum port connection:04,06,08

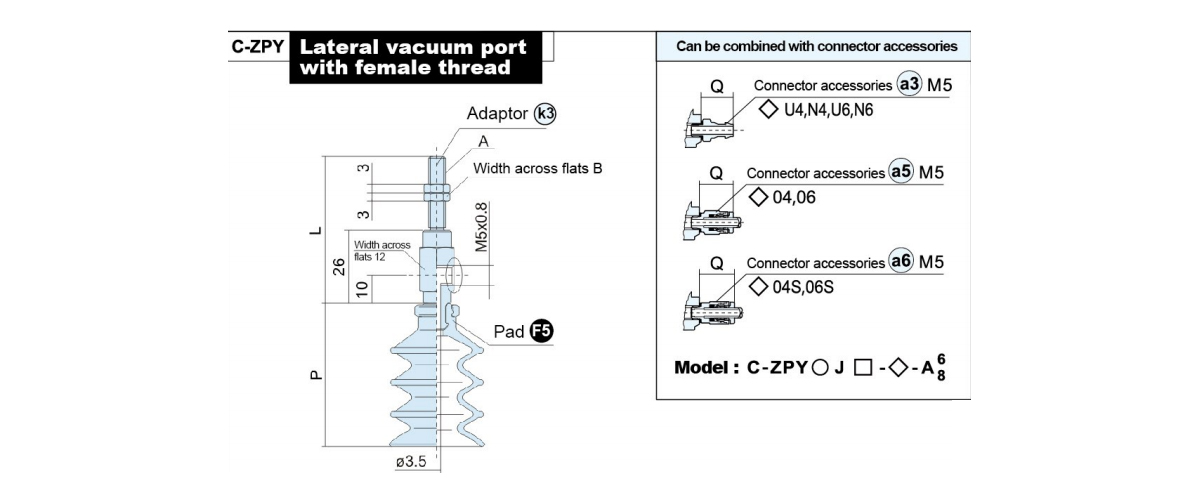

    Model A B L ○ Pad  Diameter       P Adaptor
    Model
    25 30
    C-ZPY○J□-B5-A6 M6×1.0 8 54 42.5 44.5 ZPY3-B5-A6
    C-ZPY○J□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

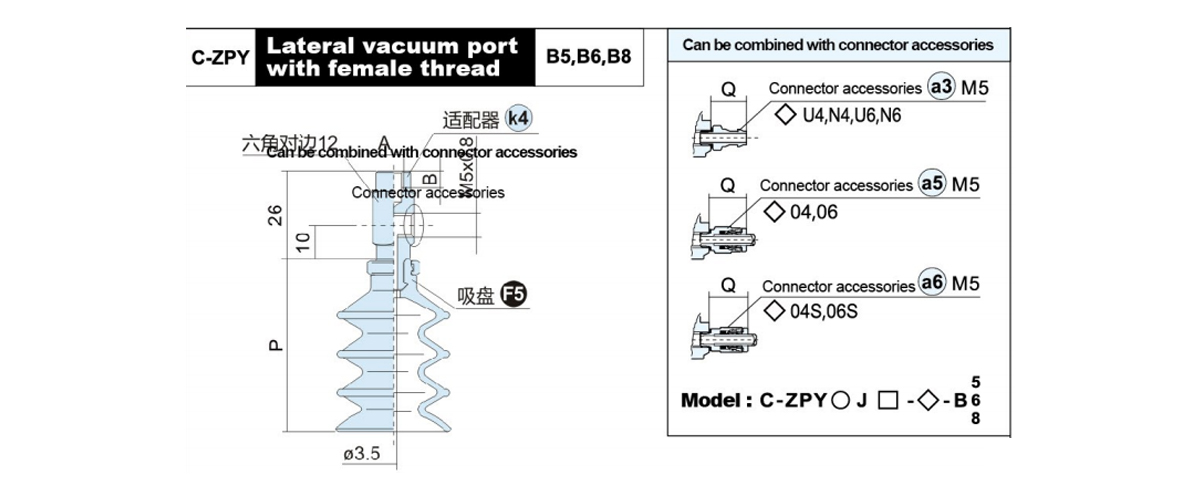

    Model A B ○ Pad Diameter P Adaptor
    Model
    25 30
    C-ZPY○J□-B5-B5 M5×0.8 5 42.5 44.5 ZPY3-B5-B5
    C-ZPY○J□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY○J□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

    Model B C L ○ Pad Diameter P m1 i4
    Bumper Support Model
    25 30
    C-ZPT○J□●10-B5-A10 10 23 47 42.5 44.5 ZPT3-●10-B5-A10
    C-ZPT○J□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT○J□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT○J□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT○J□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    ○ Symbol of pad diameter:25,30
    □ Buffer stroke(mm):10,20,30,40,50
    ■ Material:NBR(N),Silicone(S)
    ● Height    compensator    type:Rotative(J)  Unable   to   rotate(K)

    Model B C L ○ Pad Diameter P m2 i4
    Bumper Support Model
    25 30
    C-ZPT○J□●10-B5-A14 10 50 77 42.5 44.5 ZPT3-●10-B5-A14
    C-ZPT○J□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT○J□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT○J□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT○J□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT○J□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT○J□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT○J□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    ○ Symbol of pad diameter:25,30
    ■ Buffer stroke(mm):10,20,30,40,50
    □     Material:NBR(N),Slicone(S)
    ●  Height  compensator  type:Rotative(J)
    Unable to rotate(K)

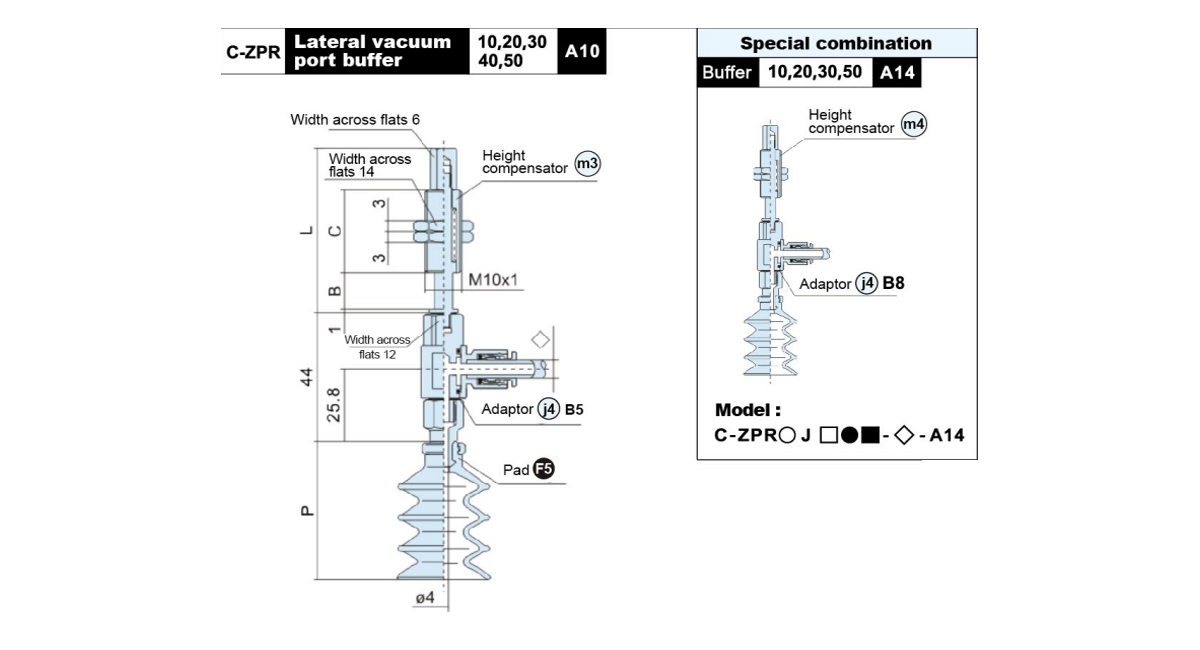

    Model B C L ○ Pad Diameter     P m3 j4
    Bumper Support Model
    25 30
    C-ZPR○J□●10-◇-A10 10 23 45 42.5 44.5 ZPR3-●10-◇-A10
    C-ZPR○J□●20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR○J□●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR○J□●40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR○J□●50-◇-A10 50 139 ZPR3-●50-◇-A10
    ○  Symbol  of  pad  diameter:25,30         □       Material:NBR(N),Silicone(S)
    ◇Vacuum   port   connection:04,06,08    ●   Height   compensator  type:Rotative(J) Unable  to  rotate(K)

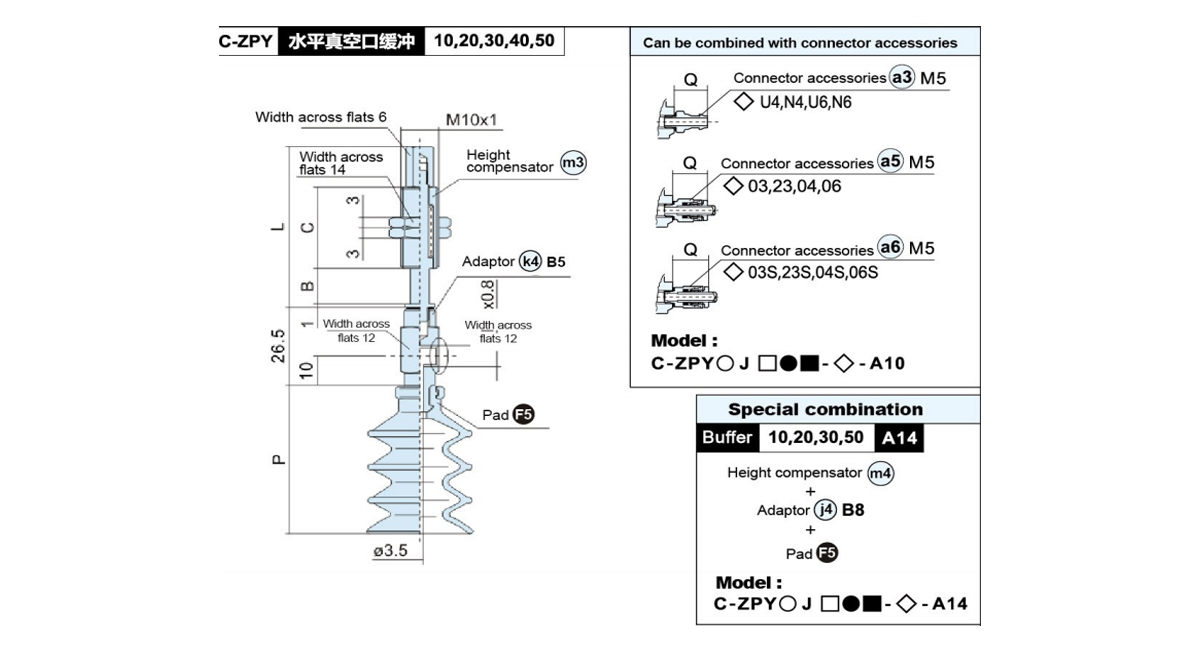

    Model B C L ○ Pad Diameter     P m3 k4
    Bumper Support Model
    25 30
    C-ZPY○J□●10-B5-A10 10 23 45 42.5 44.5 ZPY3-●10-B5-A10
    C-ZPY○J□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY○J□●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY○J□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY○J□●50-B5-A10 50 139 ZPY3-●50-B5-A10
    ○  Symbol of pad diameter:25,30
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J) Unable to rotate(K)

Gerelateerde producten

Blog & Nieuws

Ons laatste nieuws &
Blog

Meer bekijken

Authentieke betrouwbare kwaliteit valt vanzelf op.

Keuze komt voort uit vertrouwen, en samenwerking uit eerlijkheid.

  • V: Hoe snel kunnen we een antwoord krijgen nadat we u een vraag hebben gestuurd?

    Wij zullen u binnen 24 uur na ontvangst van de aanvraag binnen werkdagen antwoorden.

  • V: Bent u een directe fabrikant of een handelsonderneming?

    Wij zijn een fabrikant en hebben een eigen internationale verkoopafdeling. We kunnen dus helemaal zelf produceren en verkopen.

  • V: Kunt u producten op maat maken?

    Ja, we kunnen producten ontwikkelen en produceren volgens de tekeningen of monsters die door klanten zijn verstrekt.

  • V: Hoe garandeert uw bedrijf de productkwaliteit?

    Allereerst zullen we de inspectie na elk proces uitvoeren. Voor de eindproducten zullen we 100% inspectie uitvoeren volgens de eisen van de klant en de internationale standaard.

  • V: Waar worden uw producten voornamelijk naar geëxporteerd?

    Onze producten worden voornamelijk geëxporteerd naar Duitsland, de Verenigde Staten, Denemarken en meer dan een dozijn landen in Europa en Noord-Amerika
